pneumaticVT317 three-way direct acting solenoid valve VT317-5G-02 VT317-5D-02 VT317V-4DZ-02 VT317-4D-02 VT317V-4D-02 VT317-3G-02

Name: pneumaticVT317 three-way direct acting solenoid valve VT317-5G-02 VT317-5D-02 VT317V-4DZ-02 VT317-4D-02 VT317V-4D-02 VT317-3G-02
Brand: GO GO AUTOMATIC COMPANY LIMITED
Price: 43.80 USD
Availability: InStock

pneumaticVT317 three-way direct acting solenoid valve VT317-5G-02 VT317-5D-02 VT317V-4DZ-02 VT317-4D-02 VT317V-4D-02 VT317-3G-02 Reference unit price USD 48.62.

pneumaticVT317 three-way direct acting solenoid valve VT317-5G-02 VT317-5D-02 VT317V-4DZ-02 VT317-4D-02 VT317V-4D-02 VT317-3G-02 Reference unit price USD 48.62. White background product image, published as provided. - Coil / supply voltage: 317V

Compressed air

Prix indicatif

$43.80USD / pièce

USD reference unit price from the current listing.

Galerie produit

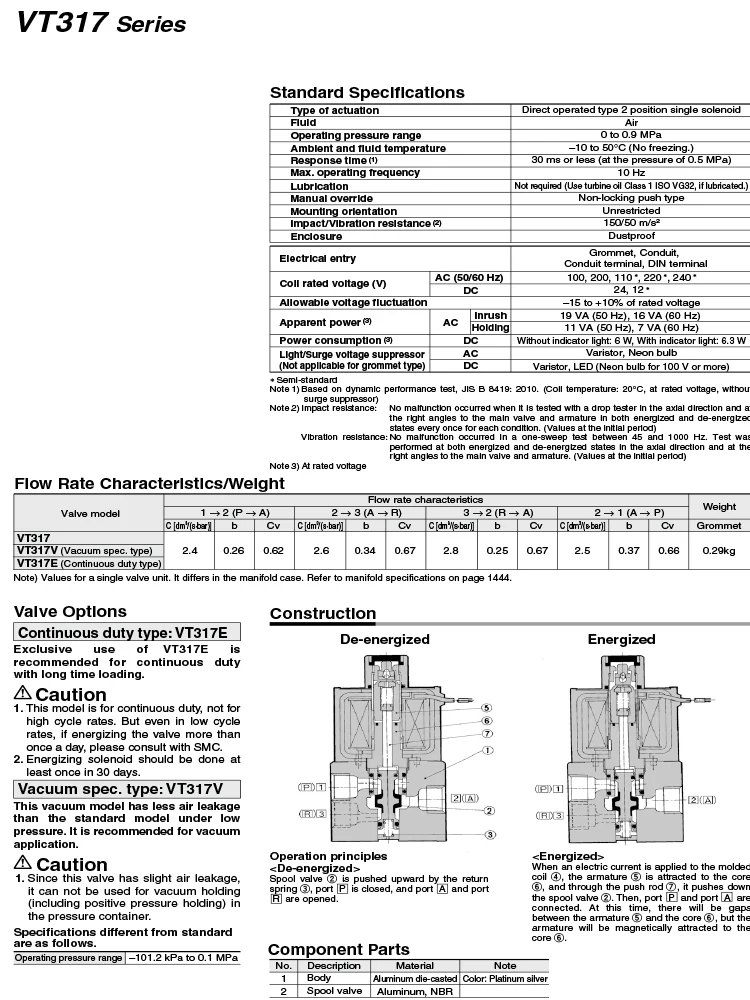

Spécifications techniques

Paramètre	Valeur
Coil / supply voltage	317V
Type	Valves
Type of actuation	Direct operated type 2 position single solenoid
Fluid	Air
Operating pressure range	0 to 0.9 MPa
Ambient and fluid temperature	-10 to 50°C (No freezing)
Response time	30 ms or less (at the pressure of 0.5 MPa)
Max. operating frequency	10 Hz
Lubrication	Not required (Use turbine oil Class 1 ISO VG32, if lubricated.)
Manual override	Non-locking push type
Mounting orientation	Unrestricted
Impact/Vibration resistance	150/50 m/s2
Enclosure	Dustproof

Caractéristiques

Published USD reference unit price
Specification confirmation before ordering
OEM and ODM service available

Annonce d'origine : Ouvrir la fiche produit d'origine

Images détaillées

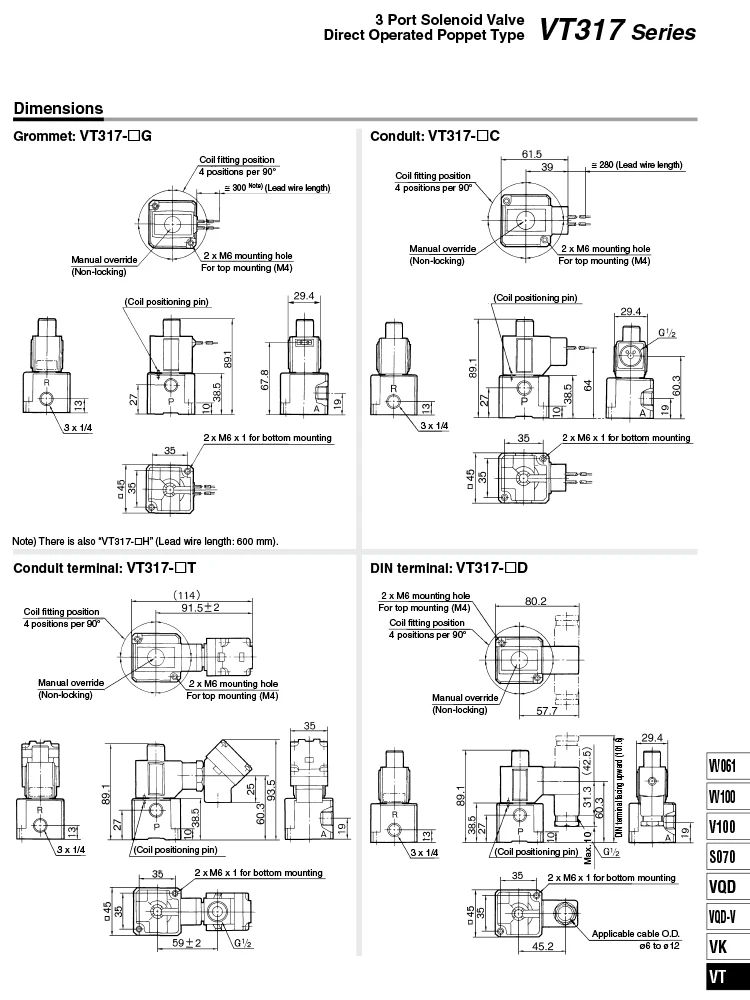

Construction, raccordement, bobine et notes de montage pour Électrovanne pneumaticVT317 three-way direct acting solenoid valve VT317-5G-02 VT317-5D-02 VT317V-4DZ-02 VT317-4D-02 VT317V-4D-02 VT317-3G-02 Pneumatique.

Électrovanne pneumaticVT317 three-way direct acting solenoid valve VT317-5G-02 VT317-5D-02 VT317V-4DZ-02 VT317-4D-02 VT317V-4D-02 VT317-3G-02 Pneumatique — détail 1
