Motorized Ball Valve With Manual Switch Brass/Stainless Steel 3-Wire 2-control DC12V/DC24VDC/AC220V 2-Way Electric Ball

Motorized Ball Valve With Manual Switch Brass/Stainless Steel 3-Wire 2-control DC12V/DC24VDC/AC220V 2-Way Electric Ball

Motorized Ball Valve With Manual Switch Brass/Stainless Steel 3-Wire 2-control DC12V/DC24VDC/AC220V 2-Way Electric Ball Reference unit price USD 73.94.

Motorized Ball Valve With Manual Switch Brass/Stainless Steel 3-Wire 2-control DC12V/DC24VDC/AC220V 2-Way Electric Ball Reference unit price USD 73.94. White background product image, published as provided. - Coil / supply voltage: DC12V, DC24V, AC220V - Body material: Brass

Compressed air

Prix indicatif

$40.67USD / pièce

USD reference unit price from the current listing.

Galerie produit

Spécifications techniques

ParamètreValeur
Coil / supply voltageDC12V, DC24V, AC220V
Body materialBrass
EU LVD VoltageHigh voltage: Above 50Vac or 75Vdc
StructureBall
Port Size1/2"(DN15), 3/4"(DN20), 1"(DN25), 1-1/4"(DN32),1-1/2"(DN40), 2"(DN50)
MediaWater
MaterialBrass/Stainless steel
Temperature of Media-10-100℃
Standard or NonstandardStandard
Pressure1.6 MPa
Model NumberBrass/Stainless steel Electric Ball Valve
Brand NameAcarps
Power SourceAc
CertificationCE
MediumCold water, Hot water or 50% Glycol solution
Wiring modeThree-Wire two-control Three-Wire one-control
Structure FormsTwo Ways
Driving voltage220VAC, 24VDC, 12VDC
Power consumption6 W (only when the valve is opened and closed)
Applicable medium temperature-10-100℃
Action time5-15 S
Nominal Pressure1.6 Mpa
Lead length30 CM
Connection methodG female thread

Caractéristiques

  • Published USD reference unit price
  • Specification confirmation before ordering
  • OEM and ODM service available

Annonce d'origine : Ouvrir la fiche produit d'origine

Images détaillées

Construction, raccordement, bobine et notes de montage pour Électrovanne Motorized Ball Valve With Manual Switch Brass/Stainless Steel 3-Wire 2-control DC12V/DC24VDC/AC220V 2-Way Electric Ball Pneumatique.

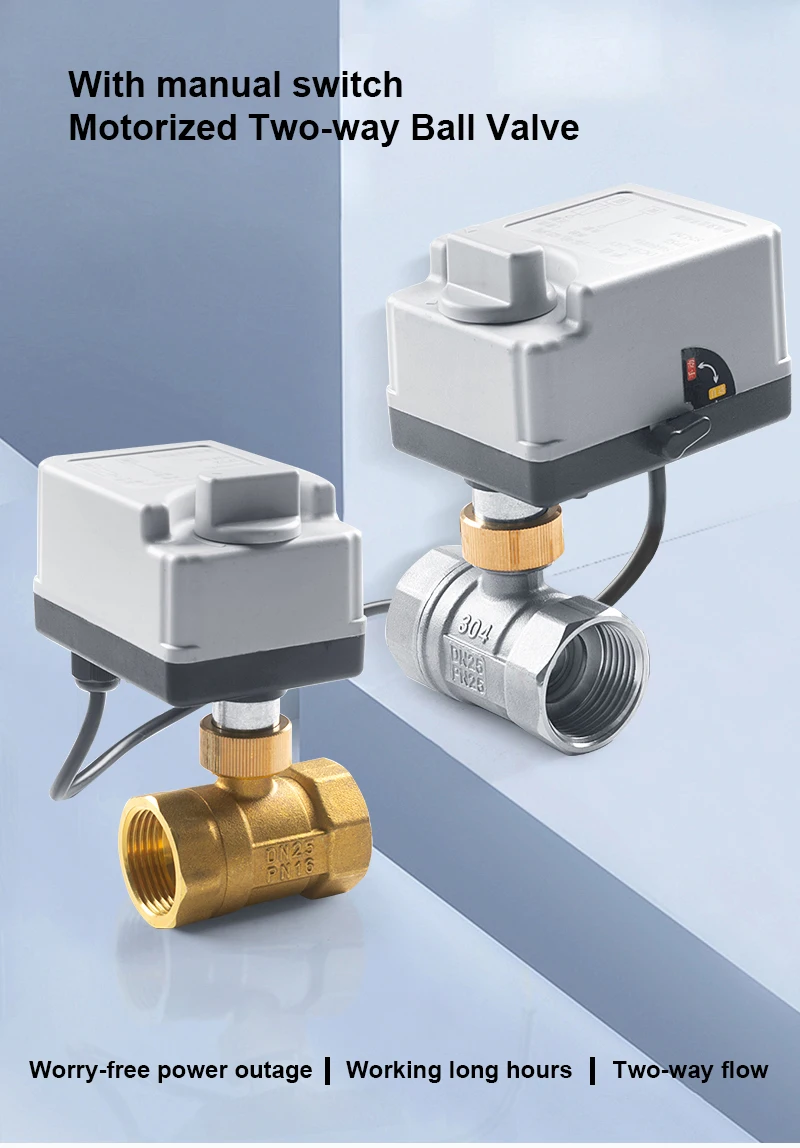

Électrovanne Motorized Ball Valve With Manual Switch Brass/Stainless Steel 3-Wire 2-control DC12V/DC24VDC/AC220V 2-Way Electric Ball Pneumatique — détail 1

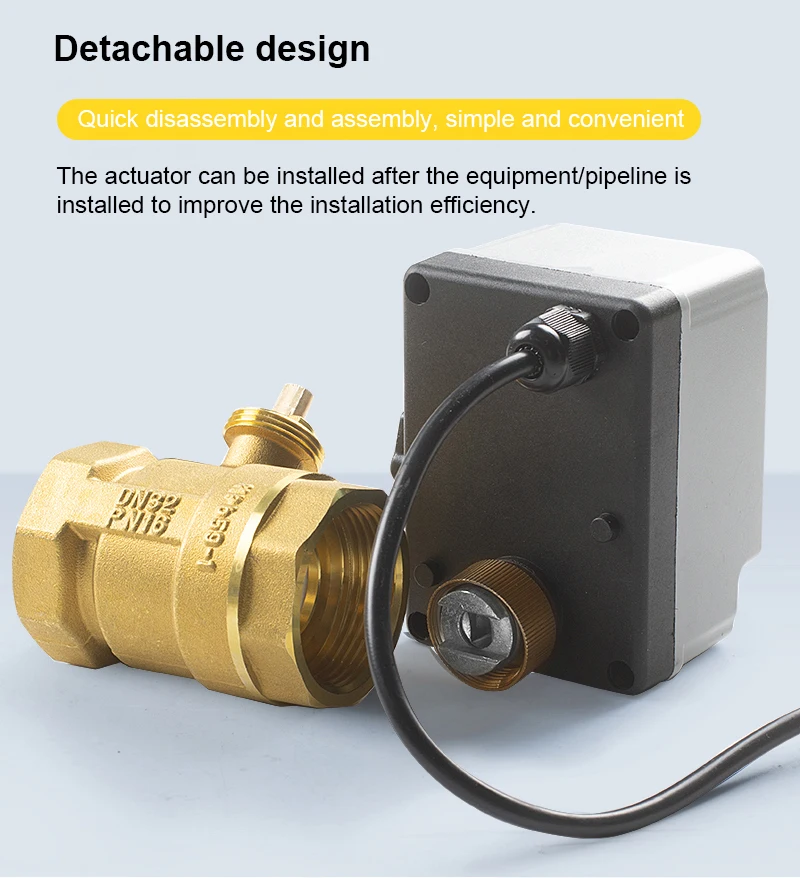

Électrovanne Motorized Ball Valve With Manual Switch Brass/Stainless Steel 3-Wire 2-control DC12V/DC24VDC/AC220V 2-Way Electric Ball Pneumatique — détail 2

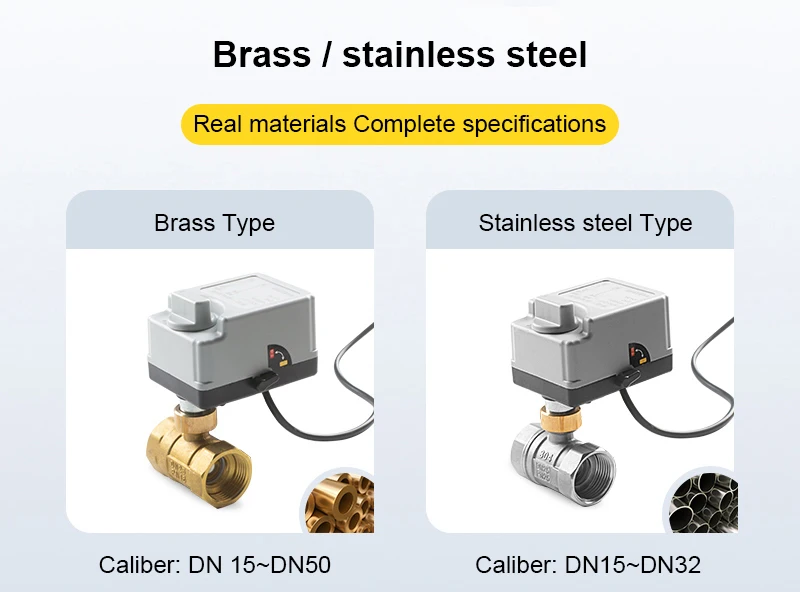

Électrovanne Motorized Ball Valve With Manual Switch Brass/Stainless Steel 3-Wire 2-control DC12V/DC24VDC/AC220V 2-Way Electric Ball Pneumatique — détail 3

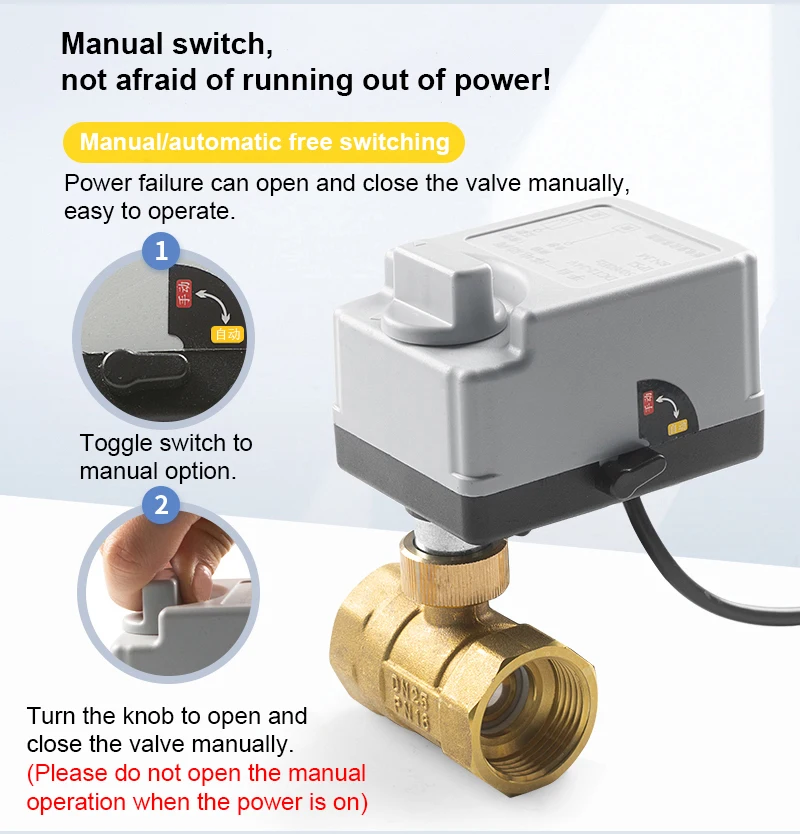

Électrovanne Motorized Ball Valve With Manual Switch Brass/Stainless Steel 3-Wire 2-control DC12V/DC24VDC/AC220V 2-Way Electric Ball Pneumatique — détail 4
