4H210-08/4H310-10/4H410-15 2 Position 5 Port Air Manual Valve Pneumatic Control Valve 5/2 Way Hand Lever Operated Contro

Name: 4H210-08/4H310-10/4H410-15 2 Position 5 Port Air Manual Valve Pneumatic Control Valve 5/2 Way Hand Lever Operated Contro
Brand: GO GO AUTOMATIC COMPANY LIMITED
Price: 12.29 USD
Availability: InStock

4H210-08/4H310-10/4H410-15 2 Position 5 Port Air Manual Valve Pneumatic Control Valve 5/2 Way Hand Lever Operated Contro Reference unit price USD 13.97.

4H210-08/4H310-10/4H410-15 2 Position 5 Port Air Manual Valve Pneumatic Control Valve 5/2 Way Hand Lever Operated Contro Reference unit price USD 13.97. White background product image, published as provided. - Category: Pneumatic

Compressed air

Prix indicatif

$12.29USD / pièce

USD reference unit price from the current listing.

Galerie produit

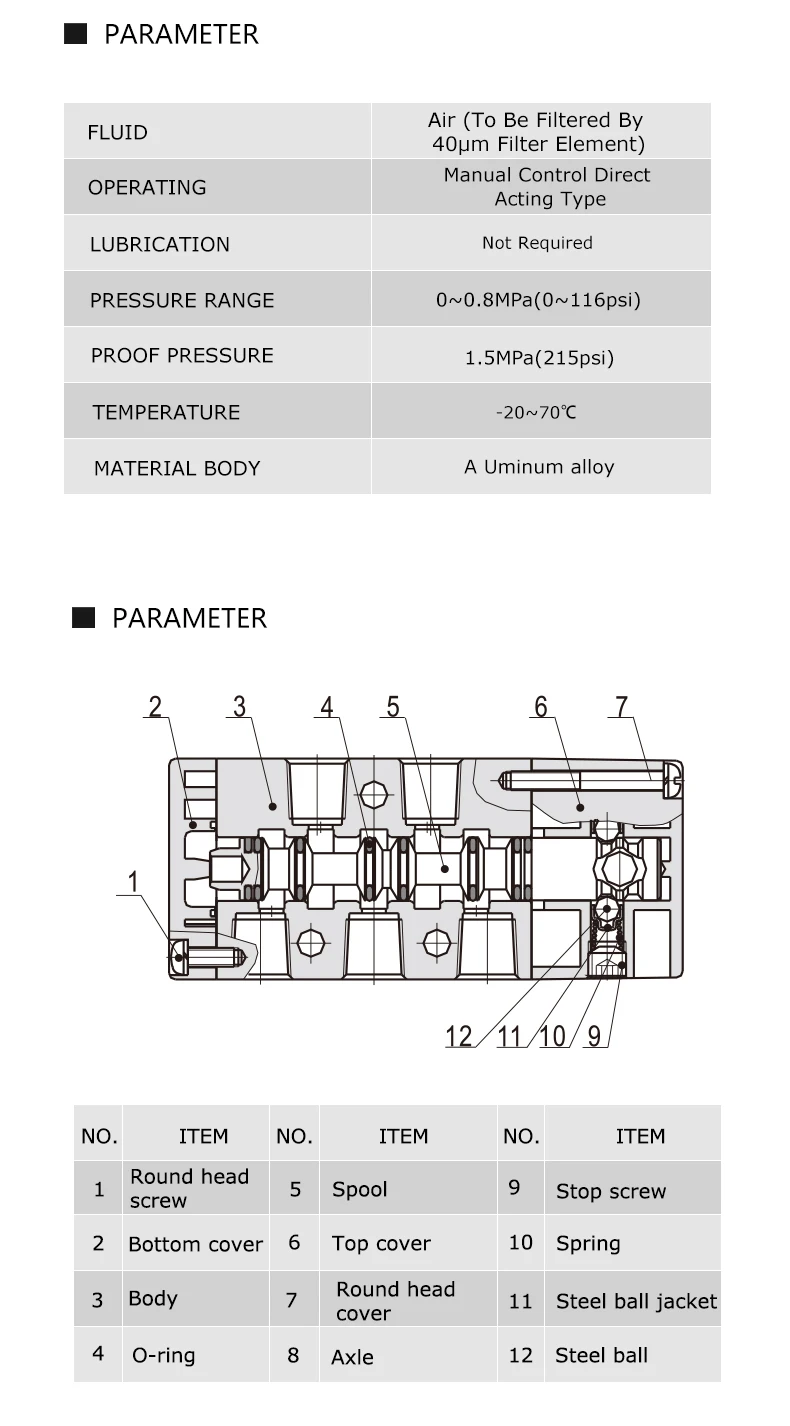

Spécifications techniques

Paramètre	Valeur
Type	Valves
Model Number	4H210-08
Fluid	Air (To Be Filtered By 40μm Filter Element)
Operating	Manual Control Direct Acting Type
C	Not Required
Pressure Range	0~0.8MPa(0~116psi)
Proof Pressure	1.5MPa(215psi)
Temperature	-20~70℃
Material Body	Aluminum alloy
Return way	Manual reset

Caractéristiques

Published USD reference unit price
Specification confirmation before ordering
OEM and ODM service available

Annonce d'origine : Ouvrir la fiche produit d'origine

Images détaillées

Construction, raccordement, bobine et notes de montage pour Électrovanne 4H210-08/4H310-10/4H410-15 2 Position 5 Port Air Manual Valve Pneumatic Control Valve 5/2 Way Hand Lever Operated Contro Pneumatique.

Électrovanne 4H210-08/4H310-10/4H410-15 2 Position 5 Port Air Manual Valve Pneumatic Control Valve 5/2 Way Hand Lever Operated Contro Pneumatique — détail 1
