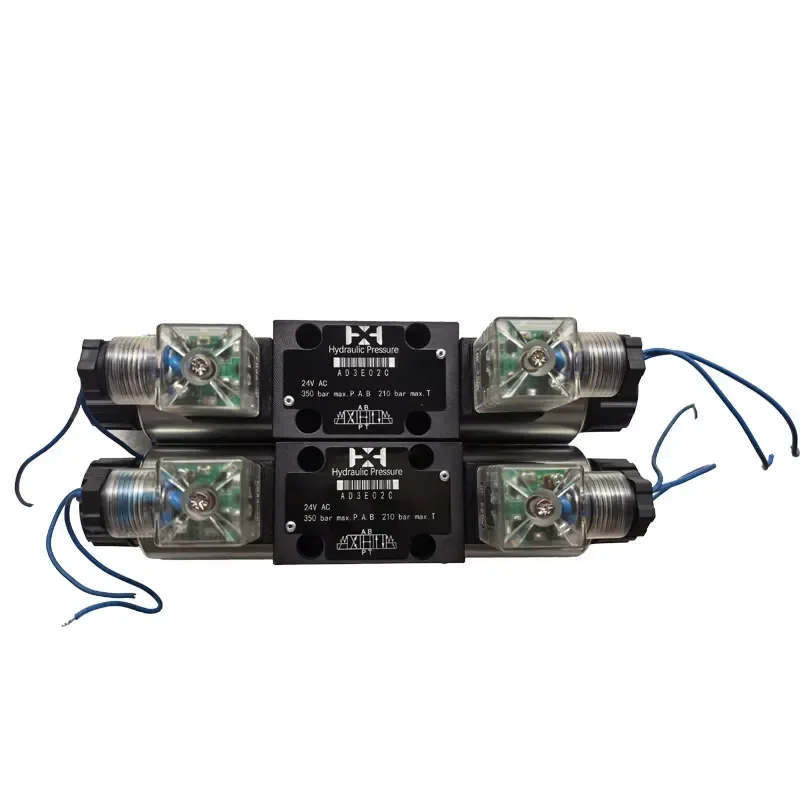

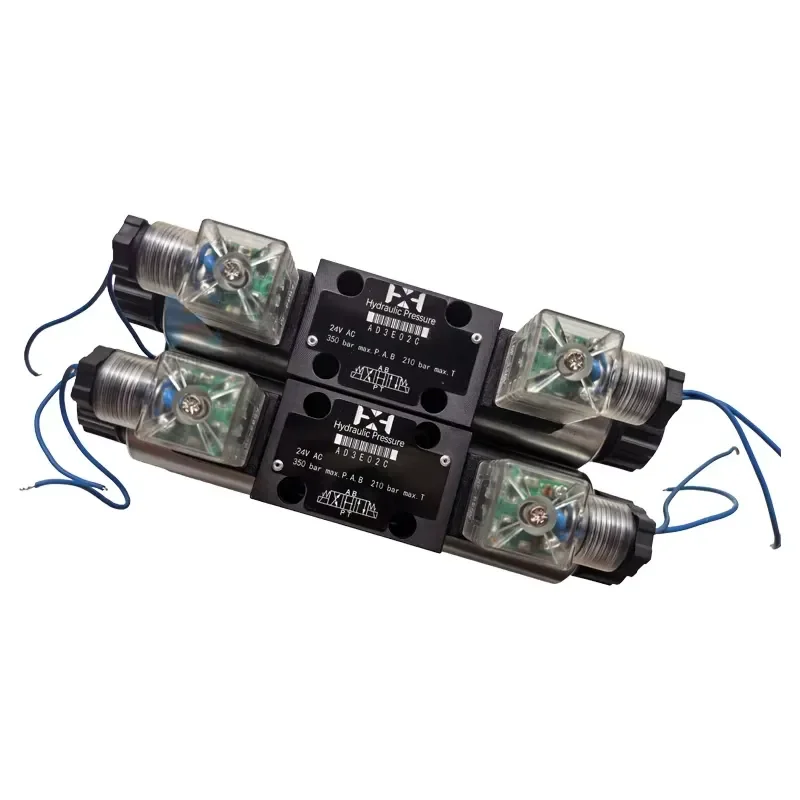

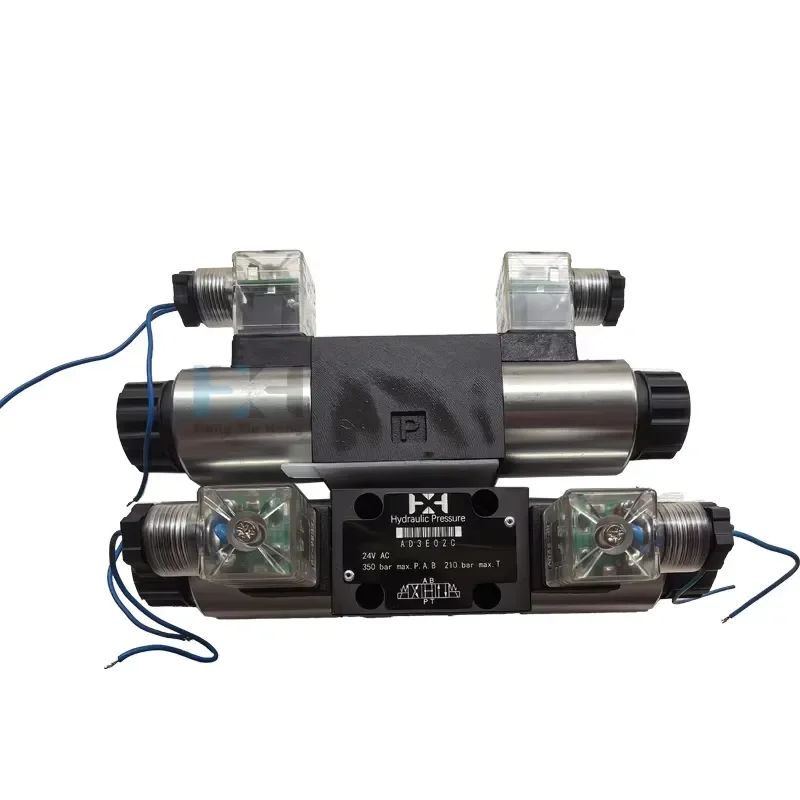

Solenoid Directional Control Valve AD3E02C 4WE Series Hydraulic Reversing Valve 24V AC for Hydraulic Machinery Equipment
Solenoid Directional Control Valve AD3E02C 4WE Series Hydraulic Reversing Valve 24V AC for Hydraulic Machinery Equipment
Hydraulic oil
Prix indicatif
$248.88USD / pièce
Reference unit price, USD. Batch price confirmed at quotation.
| Paramètre | Valeur |
|---|---|
| Category | Hydraulic Solenoid Valve |
| Media | Hydraulic oil |
| Voltage | Not specified |
| Reference Price | USD 270.34 |
| Listing Status | Quoted on request |
| Material | Aluminum alloy |
| Model Number | AD3E02C |
| Dimension (L*W*H) | 220*130*75mm |
| Flow Range (gpm) | 12~20 gpm |
| Maximum Flow Rate | 60 L/min |
| Maximum pressure | 315 bar |
| Valve type | Directional Control Valve |
| Number Of Ways | Four-Way |
| Port Connection Size | CETOP 03 / NG6 |
| Power (W) | 30W |
| Pressure | 350 bar |
| Pressure Connection | Pump P, Tank T, Work A/B |
| Weight | 3.2 |
| Series | 4WE Series |
| Max Tank Pressure | 210 bar |
| Operation Type | Solenoid Operated |
| Working Medium | Hydraulic Oil |
| Spool Type | E Spool |
| Mounting Standard | CETOP 03 / NG6 |
Annonce d'origine : Ouvrir la fiche produit d'origine
Construction, raccordement, bobine et notes de montage pour Électrovanne Solenoid Directional Hydraulique.
