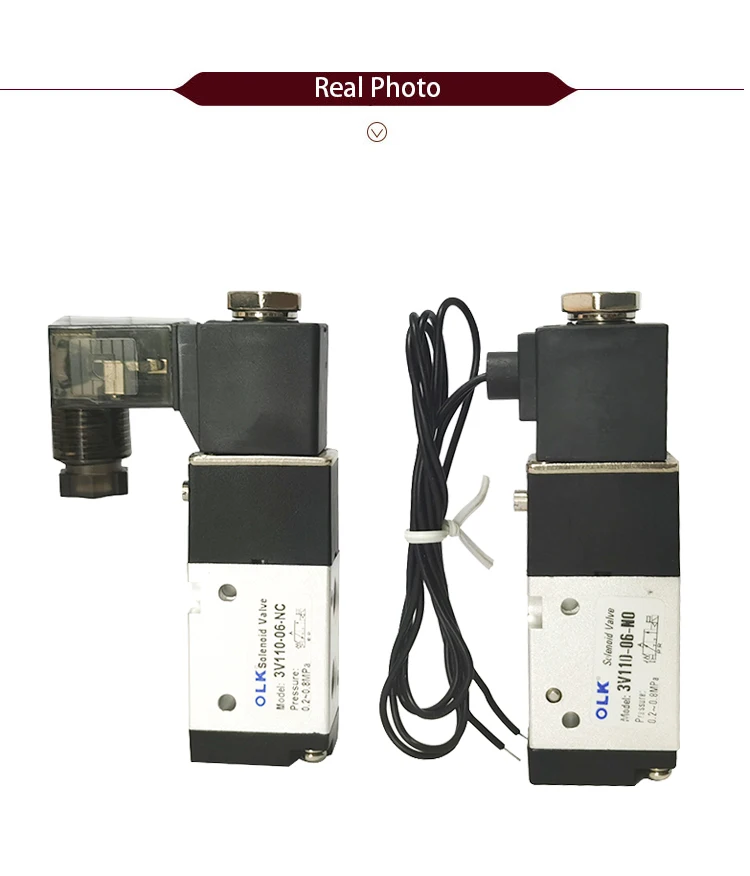

3V110-06 3V110-06-NO Solenoid Air Valve 3Port 2 Position 1/8' Normal Closed Valvula Neumática, Valves Pneumáticas DC12V
3V110-06 3V110-06-NO Solenoid Air Valve 3Port 2 Position 1/8' Normal Closed Valvula Neumática, Valves Pneumáticas DC12V
Air
Prix indicatif
$12.05USD / pièce
Reference unit price, USD. Batch price confirmed at quotation.
| Paramètre | Valeur |
|---|---|
| Category | Pneumatic Solenoid Valve |
| Media | Air |
| Voltage | DC12V |
| Reference Price | USD 14.18 |
| Listing Status | Quoted on request |
| Type | Valves |
| Model Number | 3V110-06 |
| Position and way NO. | 3 port 2 position |
| Port size | Air inlet=Air outlet=PT1/8" |
| Operating pressure | 0.2~0.8Mpa |
| Max.proof pressure | 1.2Mpa |
| Temp.range | 5~60 C |
| Coil insulation &protection grade | IP65(DIN 40050) |
| Highest action frequency | 5 cycles/per.sec. |
| Initial state | Normally closed |
Annonce d'origine : Ouvrir la fiche produit d'origine

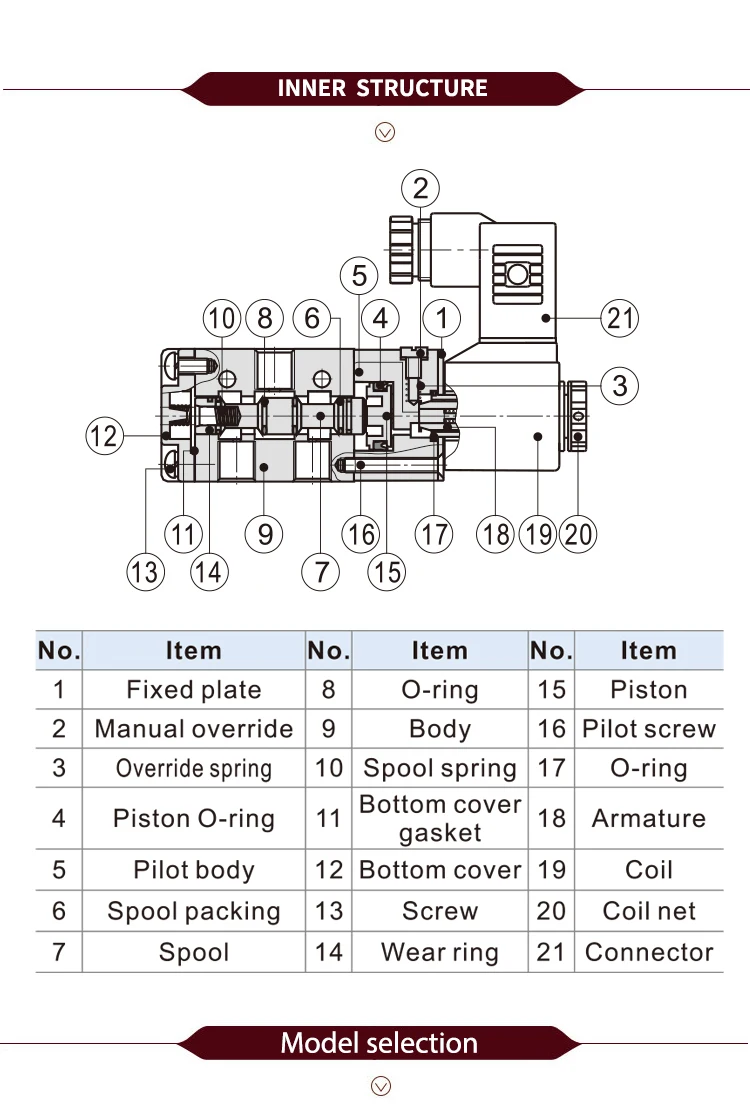

Construction, raccordement, bobine et notes de montage pour Électrovanne 3V110-06 Pneumatique.
