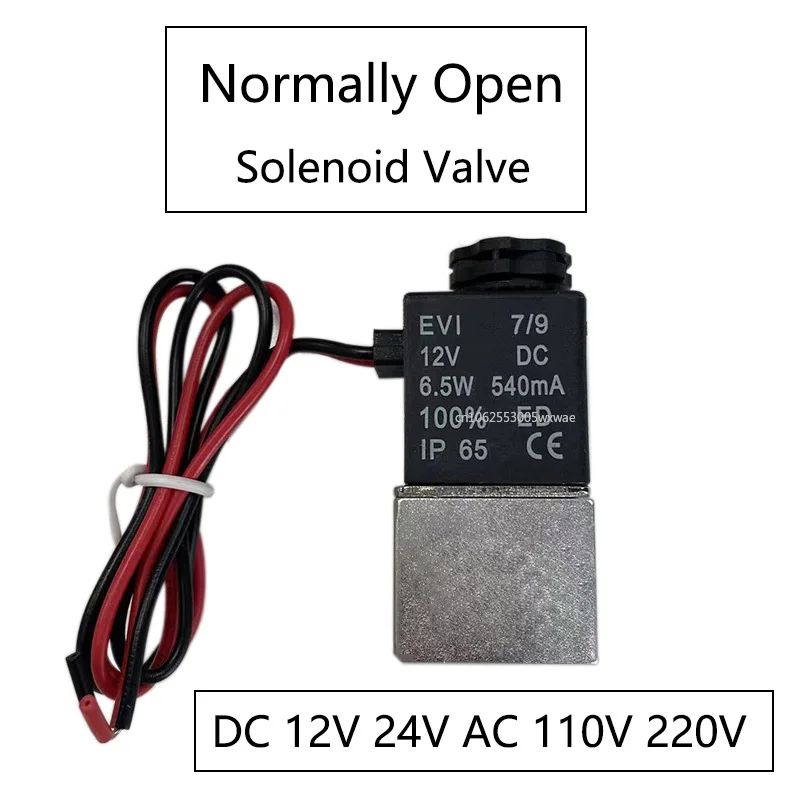

Normally Open DC 12V 24V AC 110V 220V Solenoid Valve 1/8\ Reference unit price USD 7.58.
Normally Open DC 12V 24V AC 110V 220V Solenoid Valve 1/8\ Reference unit price USD 7.58. White background product image, published as provided. - Coil / supply voltage: DC 12V, 24V, AC 110V, 220V
Compressed air
Ориентировочная цена
$1.09USD / шт
USD reference unit price from the current listing.
| Параметр | Значение |
|---|---|
| Coil / supply voltage | DC 12V, 24V, AC 110V, 220V |
| Type | Valves |
| Model Number | DC12V-1/8 |
| Certification | CE |
| Valve Type | 2 Way Normally Open |
| Port Size | 1/8" NPT Female Port |
| Coil Voltage | DC12V DC24V AC110V AC220V |
| Service Media | Air / Gas / Liquid / Water |

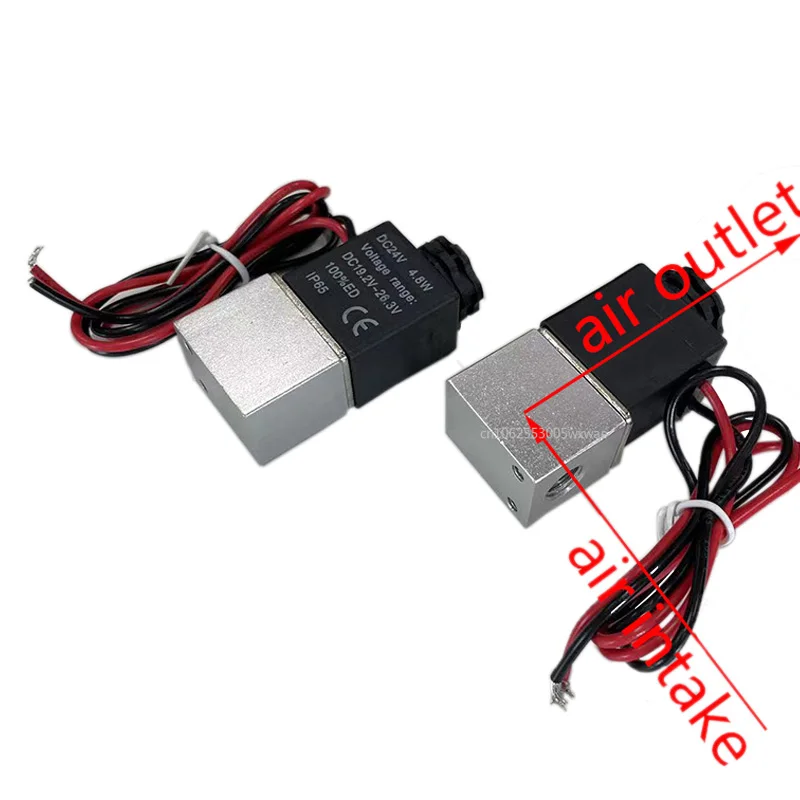

| Flow Model | Uni-Directional |
| Flow Rate | 0.23Cv (Fluid Flow) |
| Response Time | Less than 50 ms |
| Operating Pressure | 1.2Mpa(can be operated at 0 PSI (Vacuum)) |
| Operating Temperature | -10 to 80 °C |
| Coil Power | 6.5W |
Исходная позиция: Открыть оригинальную страницу товара

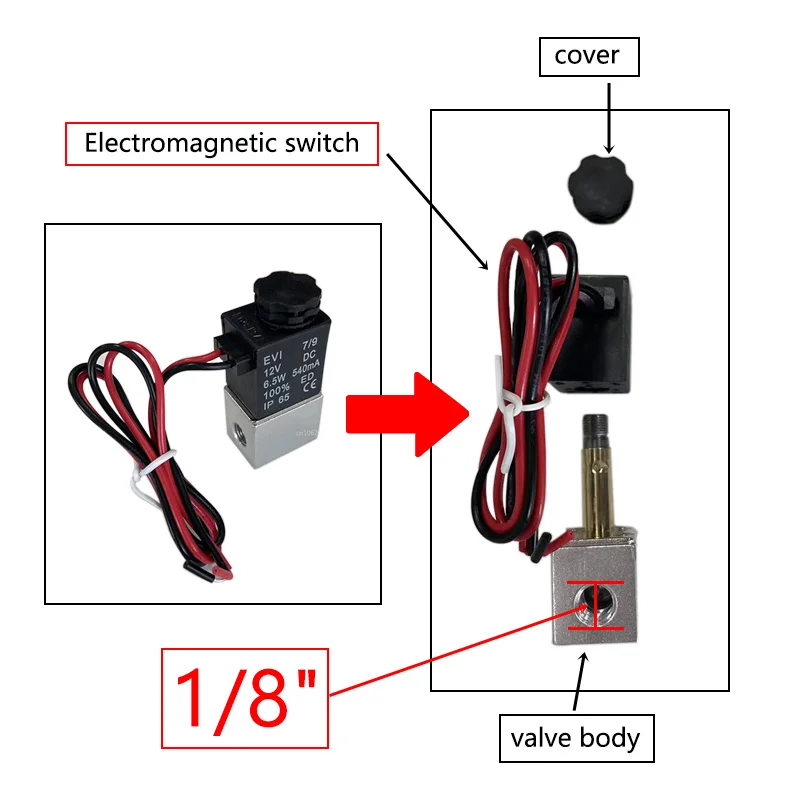

Конструкция, присоединение, катушка и особенности монтажа для Электромагнитный клапан Normally Open DC 12V 24V AC 110V 220V Solenoid Valve 1/8\ Пневматика.
