2 Way Stainless steel mini water solenoid valve 1/4 3/8 12V 24V 110V 220V 380V 36V N.C 2S025-08 2S040-10 Wire lead valve

2 Way Stainless steel mini water solenoid valve 1/4 3/8 12V 24V 110V 220V 380V 36V N.C 2S025-08 2S040-10 Wire lead valve

2 Way Stainless steel mini water solenoid valve 1/4 3/8 12V 24V 110V 220V 380V 36V N.C 2S025-08 2S040-10 Wire lead valve Reference unit price USD 20.81.

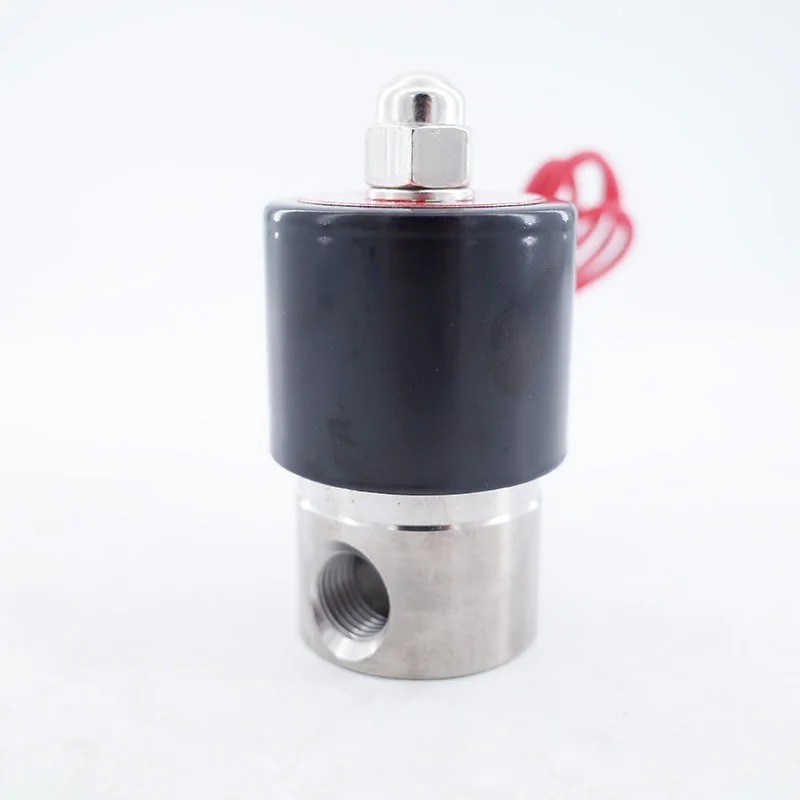

2 Way Stainless steel mini water solenoid valve 1/4 3/8 12V 24V 110V 220V 380V 36V N.C 2S025-08 2S040-10 Wire lead valve Reference unit price USD 20.81. White background product image, published as provided. - Coil / supply voltage: 12V, 24V, 110V, 220V, 380V, 36V

Compressed air

Ориентировочная цена

$15.48USD / шт

USD reference unit price from the current listing.

Галерея изделия

Технические параметры

ПараметрЗначение
Coil / supply voltage12V, 24V, 110V, 220V, 380V, 36V
NC or NONormally Closed
Structurecontrol
Port SizeG1/8" ,G1/4", G3/8"
MediaWater
MaterialBrass
Temperature of MediaMedium Temperature
PowerSolenoid
Standard or NonstandardStandard
PressureMedium Pressure
Model Number2S025-06/08,2S040-10
Brand NameATC GOGO AUTOMATIC
CertificationCE
FormWire lead type
ForAir ,gas ,oil ,water
Operating Temperature-5~155°C
Orifice2.5mm/4mm
typenormally colse
Action modedirect acting
Working pressure1.5-7bar
VoltageAC110V AC220V AC36V 24V DC 12V DC
Sealing materialsNBR or FKM
Packingone piece valve + a carton

Особенности

  • Published USD reference unit price
  • Specification confirmation before ordering
  • OEM and ODM service available

Исходная позиция: Открыть оригинальную страницу товара

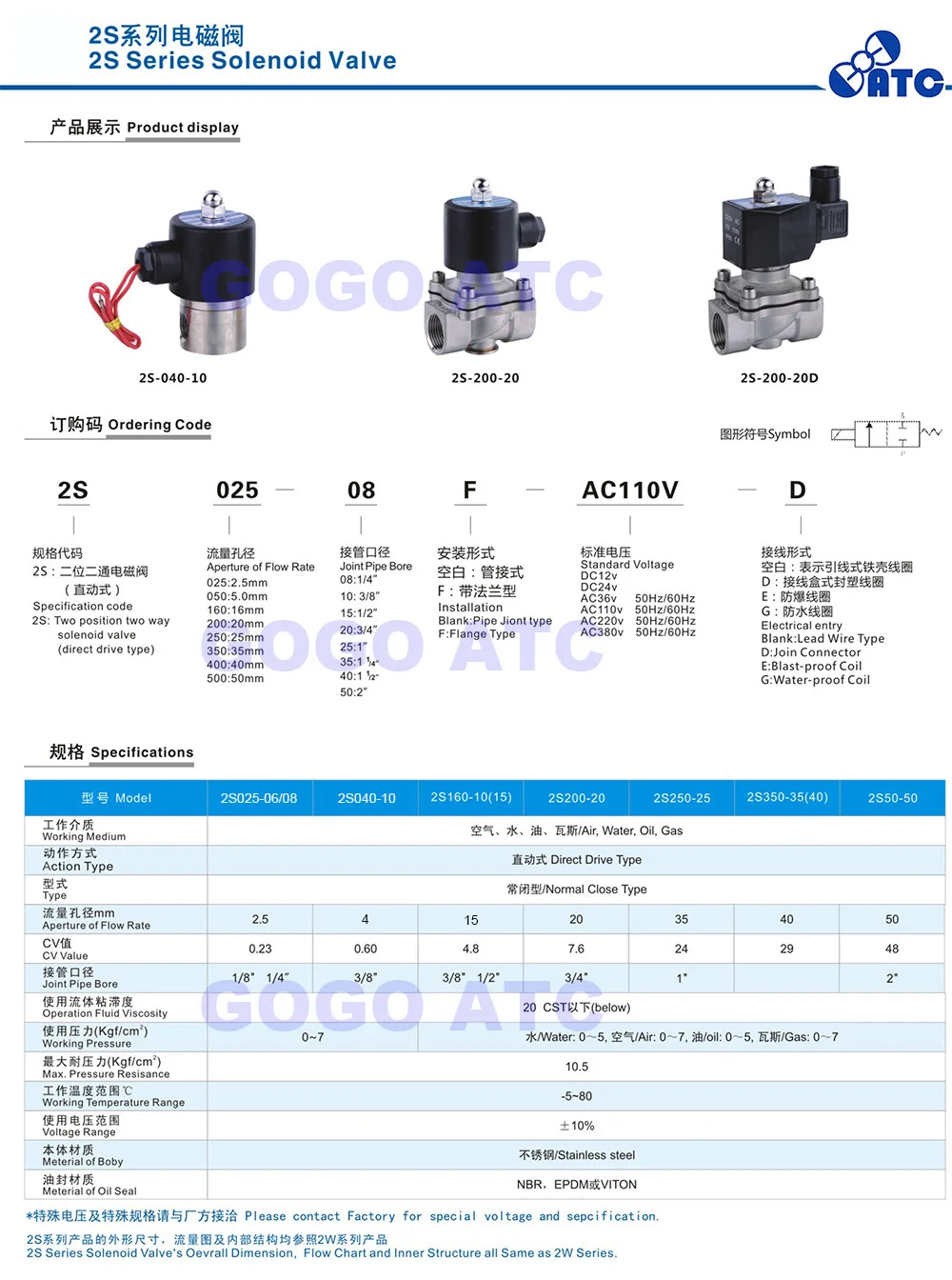

Детальные изображения

Конструкция, присоединение, катушка и особенности монтажа для Электромагнитный клапан 2 Way Stainless steel mini water solenoid valve 1/4 3/8 12V 24V 110V 220V 380V 36V N.C 2S025-08 2S040-10 Wire lead valve Пневматика.

Электромагнитный клапан 2 Way Stainless steel mini water solenoid valve 1/4 3/8 12V 24V 110V 220V 380V 36V N.C 2S025-08 2S040-10 Wire lead valve Пневматика — деталь 1
Электромагнитный клапан 2 Way Stainless steel mini water solenoid valve 1/4 3/8 12V 24V 110V 220V 380V 36V N.C 2S025-08 2S040-10 Wire lead valve Пневматика — деталь 2
Электромагнитный клапан 2 Way Stainless steel mini water solenoid valve 1/4 3/8 12V 24V 110V 220V 380V 36V N.C 2S025-08 2S040-10 Wire lead valve Пневматика — деталь 3
Электромагнитный клапан 2 Way Stainless steel mini water solenoid valve 1/4 3/8 12V 24V 110V 220V 380V 36V N.C 2S025-08 2S040-10 Wire lead valve Пневматика — деталь 4
