3/4'' Proportional Valve 3 Way DC9-24V Control Signal 0-5V 0-10V or 4-20mA For Water Modulating, Metal Gears IP67 Protection

Name: 3/4'' Proportional Valve 3 Way DC9-24V Control Signal 0-5V 0-10V or 4-20mA For Water Modulating, Metal Gears IP67 Protection
Brand: GO GO AUTOMATIC COMPANY LIMITED
Price: 90.11 USD
Availability: InStock

3/4'' Proportional Valve 3 Way DC9-24V Control Signal 0-5V 0-10V or 4-20mA For Water Modulating, Metal Gears IP67 Protection Reference unit price USD 128.73.

3/4'' Proportional Valve 3 Way DC9-24V Control Signal 0-5V 0-10V or 4-20mA For Water Modulating, Metal Gears IP67 Protection Reference unit price USD 128.73. White background product image, published as provided. - Coil / supply voltage: 24V, 5V, 10V

Compressed air

Ориентировочная цена

$90.11USD / шт

USD reference unit price from the current listing.

Галерея изделия

Технические параметры

Параметр	Значение
Coil / supply voltage	24V, 5V, 10V
EU LVD Voltage	Low voltage: Below 50Vac or 75Vdc
Actuator Mode	With Instruction
Structure	Ball
Port Size	3/4'' (DN20)
Media	Water
Material	Brass
Temperature of Media	1-95 Degree C
Power	DC Power
Standard or Nonstandard	Standard
Pressure	Medium Pressure
Model Number	TFM20-B3-C
Brand Name	Tsai Fan
Power Source	DC
Is Smart Device	no
Certification	CE

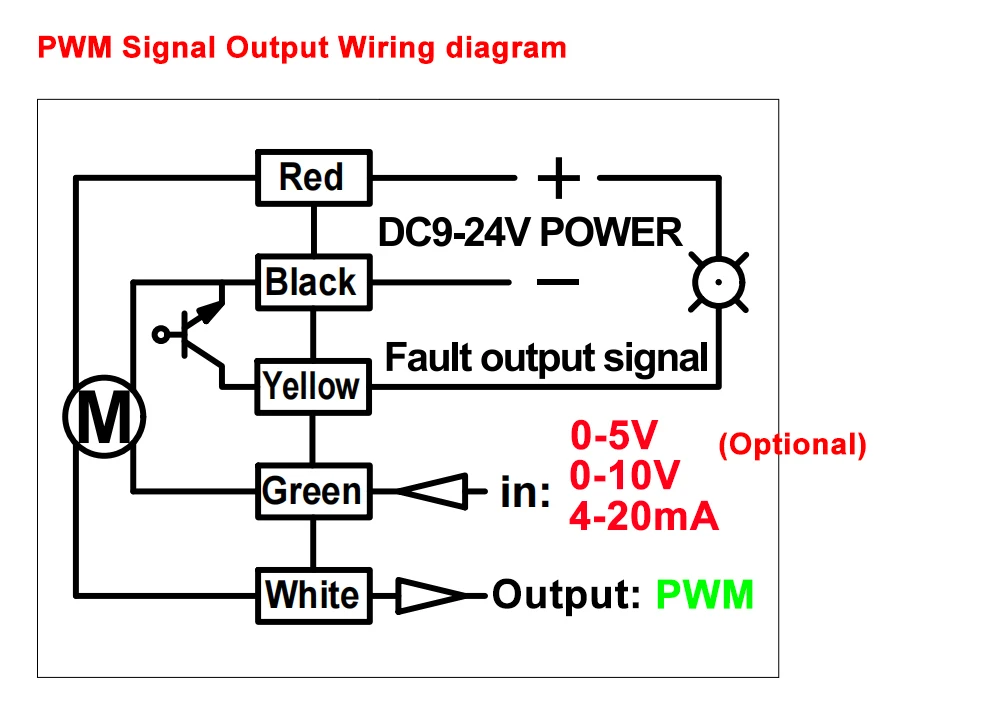

Control Singal	0-5V or 0-10V or 4-20mA
Gear Material	Metal Gear
Maximum Pressure	1.0Mpa
Protection Class	IP67

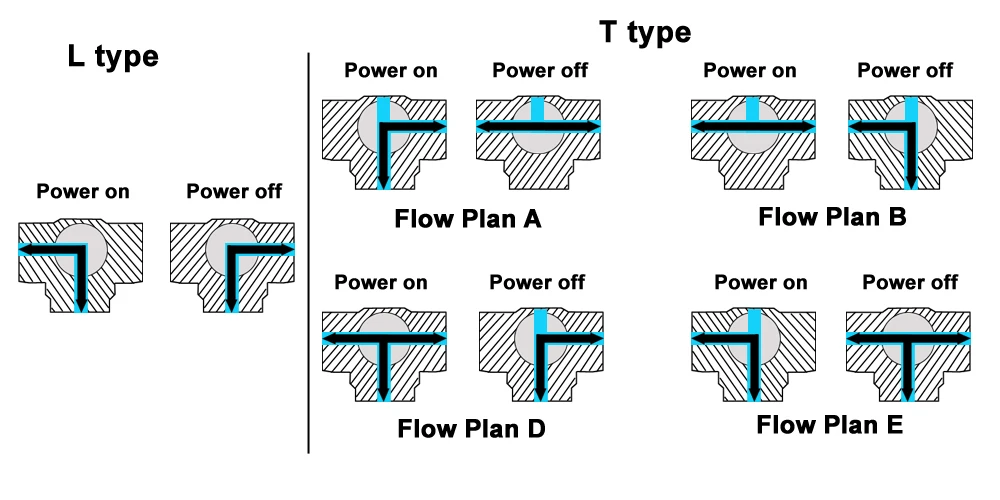

Valve type	3 Way T port

Особенности

Published USD reference unit price
Specification confirmation before ordering
OEM and ODM service available

Исходная позиция: Открыть оригинальную страницу товара

Детальные изображения

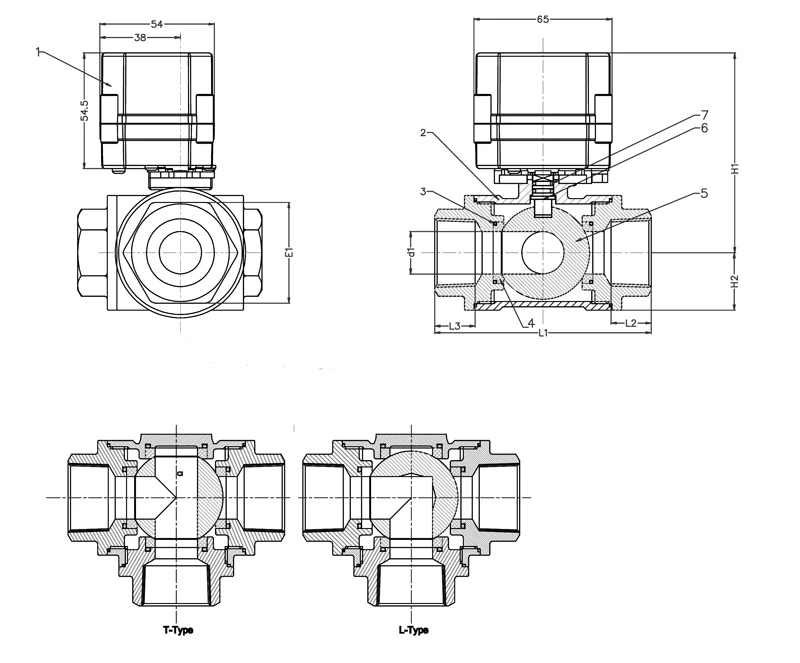

Конструкция, присоединение, катушка и особенности монтажа для Электромагнитный клапан 3/4'' Proportional Valve 3 Way DC9-24V Control Signal 0-5V 0-10V or 4-20mA For Water Modulating, Metal Gears IP67 Protection Пневматика.

Электромагнитный клапан 3/4'' Proportional Valve 3 Way DC9-24V Control Signal 0-5V 0-10V or 4-20mA For Water Modulating, Metal Gears IP67 Protection Пневматика — деталь 1
