4H210-08 4H310-10 4H410-15 2 Position 5 Port Air Manual Valve Pneumatic Control Valve 5/2 Way Hand Lever Operated Contro

Name: 4H210-08 4H310-10 4H410-15 2 Position 5 Port Air Manual Valve Pneumatic Control Valve 5/2 Way Hand Lever Operated Contro
Brand: GO GO AUTOMATIC COMPANY LIMITED
Price: 1.09 USD
Availability: InStock

4H210-08 4H310-10 4H410-15 2 Position 5 Port Air Manual Valve Pneumatic Control Valve 5/2 Way Hand Lever Operated Contro Reference unit price USD 10.62.

4H210-08 4H310-10 4H410-15 2 Position 5 Port Air Manual Valve Pneumatic Control Valve 5/2 Way Hand Lever Operated Contro Reference unit price USD 10.62. White background product image, published as provided. - Category: Pneumatic

Compressed air

Ориентировочная цена

$1.09USD / шт

USD reference unit price from the current listing.

Галерея изделия

Технические параметры

Параметр	Значение
Type	Valves
Model Number	4H210-08 4H310-10
Valve type	5/2Way
Orifice size	14mm2(CV=0.78) or 16mm2(CV=0.89) etc.
Port size	1/8" or 1/4" or 3/8"
Operating pressure	0~0.8MPa(0~116psi)
Max.proof pressure	1.5MPa(215psi)
Temperature	5~50℃
Material body	Aluminum alloy
Lubrication	Not required
Operating	Manual control direct acting type

Особенности

Published USD reference unit price
Specification confirmation before ordering
OEM and ODM service available

Исходная позиция: Открыть оригинальную страницу товара

Детальные изображения

Конструкция, присоединение, катушка и особенности монтажа для Электромагнитный клапан 4H210-08 4H310-10 4H410-15 2 Position 5 Port Air Manual Valve Pneumatic Control Valve 5/2 Way Hand Lever Operated Contro Пневматика.

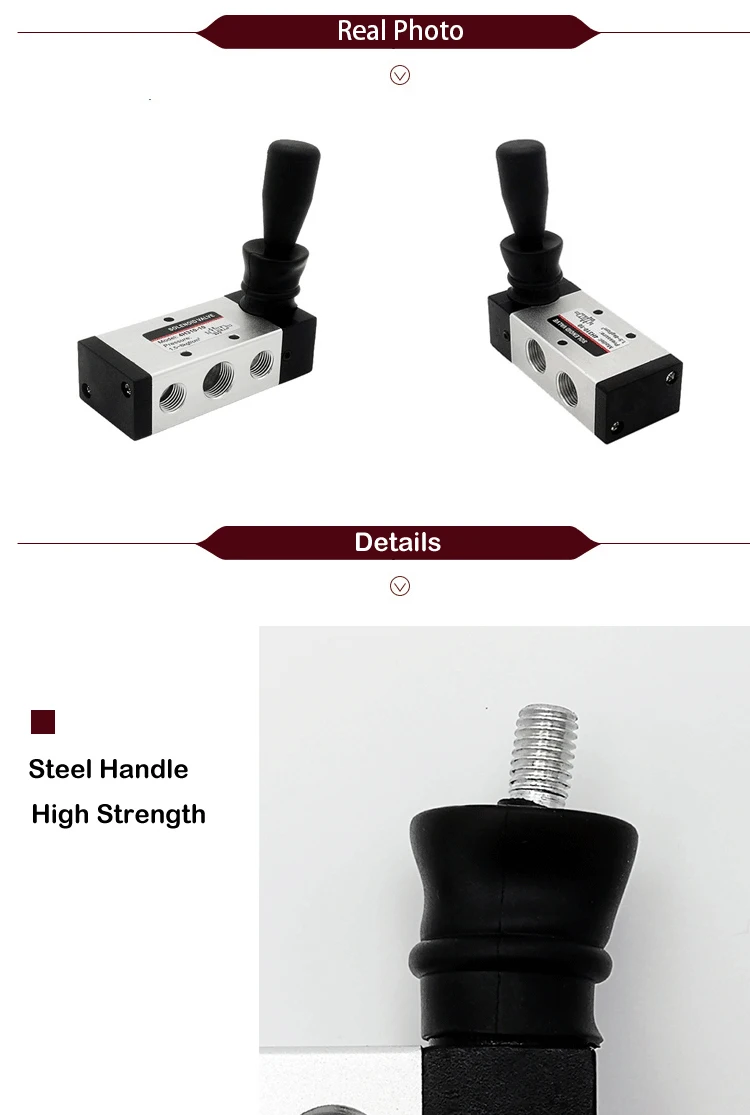

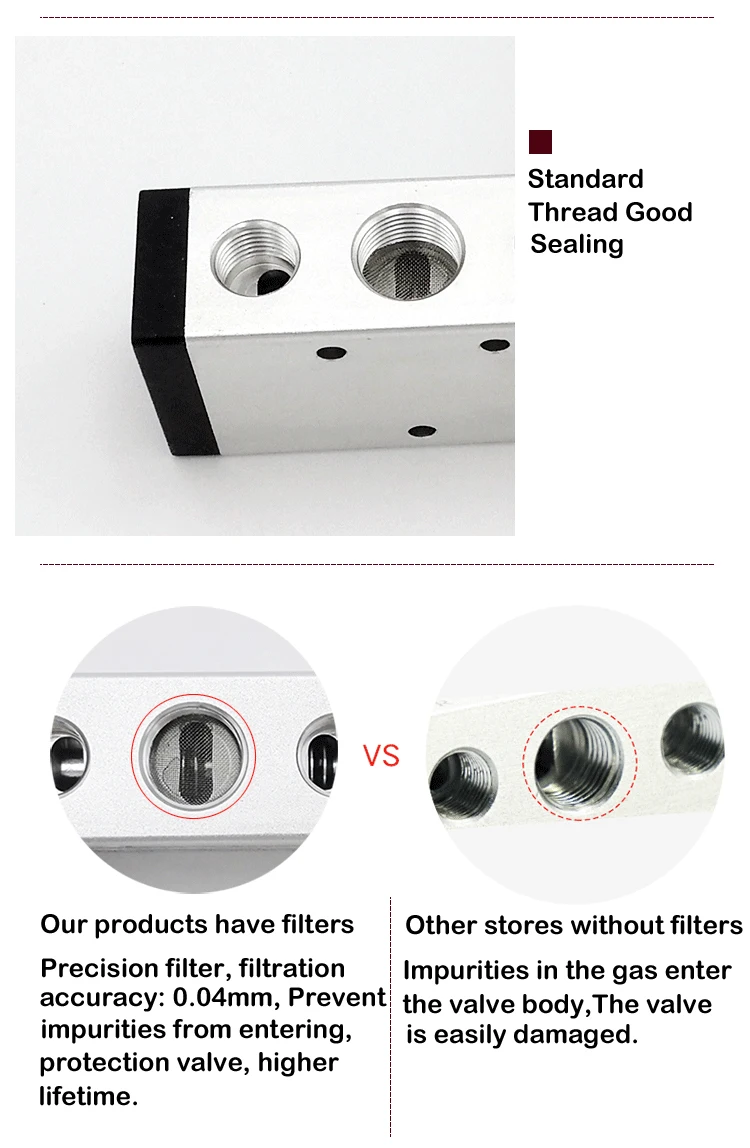

Электромагнитный клапан 4H210-08 4H310-10 4H410-15 2 Position 5 Port Air Manual Valve Pneumatic Control Valve 5/2 Way Hand Lever Operated Contro Пневматика — деталь 1
