DN15 Full Bore Electric Ball Valve Stainless Steel 3-Way Big Torque Ball Valve 2/3 wire Motorized Ball Valve AC220V DC24

DN15 Full Bore Electric Ball Valve Stainless Steel 3-Way Big Torque Ball Valve 2/3 wire Motorized Ball Valve AC220V DC24

DN15 Full Bore Electric Ball Valve Stainless Steel 3-Way Big Torque Ball Valve 2/3 wire Motorized Ball Valve AC220V DC24 Reference unit price USD 87.65.

DN15 Full Bore Electric Ball Valve Stainless Steel 3-Way Big Torque Ball Valve 2/3 wire Motorized Ball Valve AC220V DC24 Reference unit price USD 87.65. White background product image, published as provided. - Port size: DN15 - Coil / supply voltage: AC220V - Body material: Stainless Steel

Water / steam

Preço de referência

$87.65USD / peça

USD reference unit price from the current listing.

Galeria do produto

Parâmetros técnicos

ParâmetroEspecificação
Port sizeDN15
Coil / supply voltageAC220V
Body materialStainless Steel
EU LVD VoltageHigh voltage: Above 50Vac or 75Vdc
Actuator ModeWithout Manual And Instruction
StructureBall
MediaWater
MaterialStainless Steel
Temperature of MediaNormal Temperature
Standard or NonstandardStandard
PressureMedium Pressure
Model NumberCTF-001
Brand NameAcarps
Is Smart Deviceno
CertificationCE
Rated voltageDC12V, DC24V, AC220V
Working currentMax100~300MA
Maximum power<22W
Thread typeNPT
Working pressure≤1.6Mpa
Medium temperature0-100℃
Switching time<12s
Output torque10NM
Protection levellP65

Características

  • Published USD reference unit price
  • Specification confirmation before ordering
  • OEM and ODM service available

Listagem de origem: Ver a página original do produto

Imagens detalhadas

Estrutura, conexão, bobina e detalhes de instalação de Válvula solenoide DN15 Full Bore Electric Ball Valve Stainless Steel 3-Way Big Torque Ball Valve 2/3 wire Motorized Ball Valve AC220V DC24 Água e vapor.

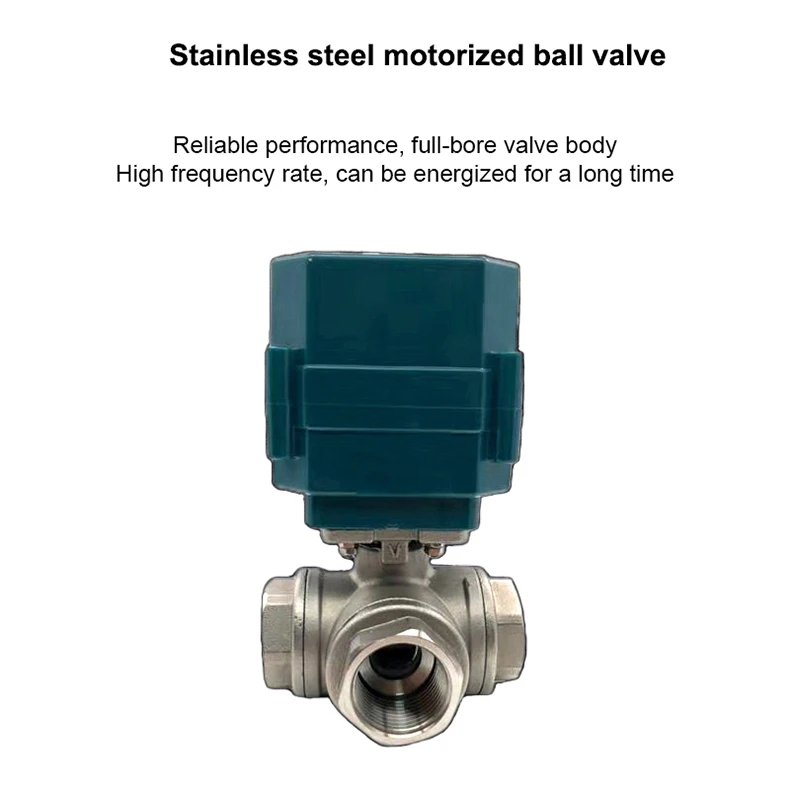

Detalhe 1 de Válvula solenoide DN15 Full Bore Electric Ball Valve Stainless Steel 3-Way Big Torque Ball Valve 2/3 wire Motorized Ball Valve AC220V DC24 Água e vapor

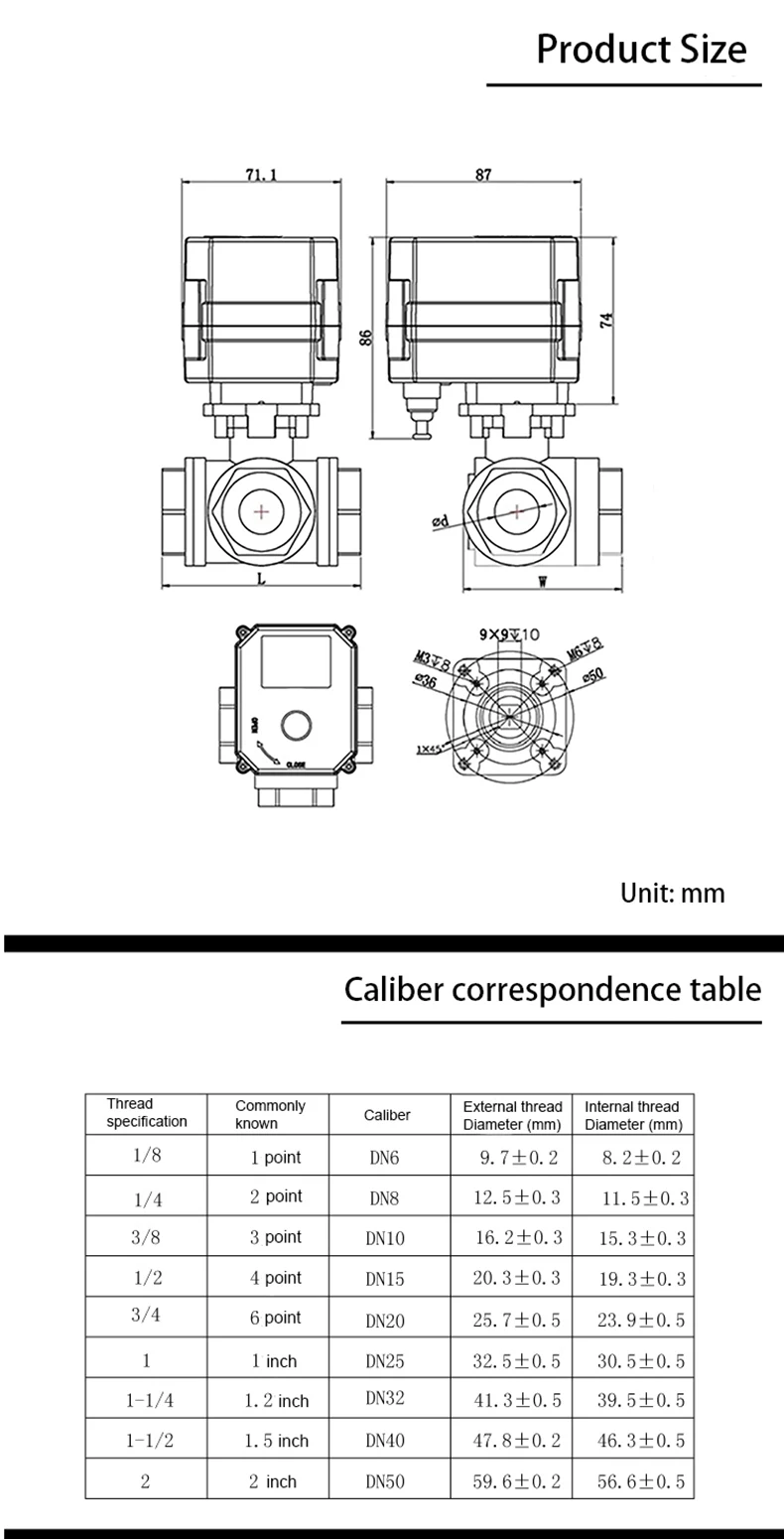

Detalhe 2 de Válvula solenoide DN15 Full Bore Electric Ball Valve Stainless Steel 3-Way Big Torque Ball Valve 2/3 wire Motorized Ball Valve AC220V DC24 Água e vapor

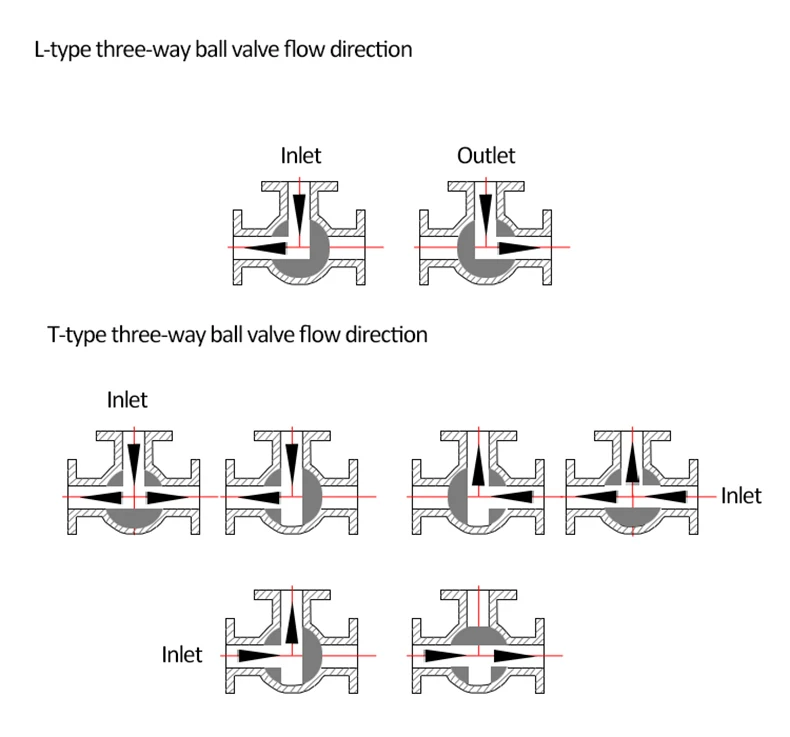

Detalhe 3 de Válvula solenoide DN15 Full Bore Electric Ball Valve Stainless Steel 3-Way Big Torque Ball Valve 2/3 wire Motorized Ball Valve AC220V DC24 Água e vapor

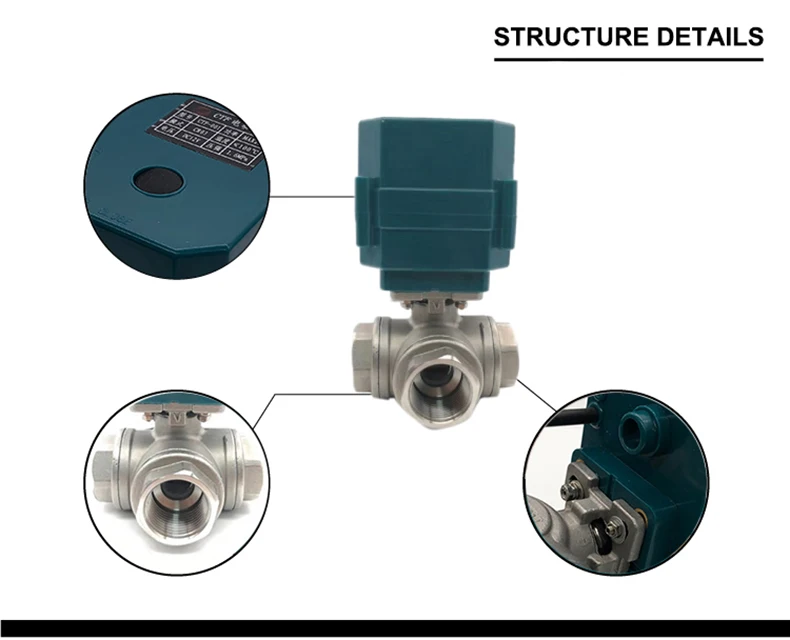

Detalhe 4 de Válvula solenoide DN15 Full Bore Electric Ball Valve Stainless Steel 3-Way Big Torque Ball Valve 2/3 wire Motorized Ball Valve AC220V DC24 Água e vapor
