4H210-08 4H310-10 4H410-15 2 Position 5 Port 5/2 Way Air Manual Valve Pneumatic Control Valve Hand Lever Operated Control Valve

4H210-08 4H310-10 4H410-15 2 Position 5 Port 5/2 Way Air Manual Valve Pneumatic Control Valve Hand Lever Operated Control Valve

4H210-08 4H310-10 4H410-15 2 Position 5 Port 5/2 Way Air Manual Valve Pneumatic Control Valve Hand Lever Operated Control Valve Reference unit price USD 8.69.

4H210-08 4H310-10 4H410-15 2 Position 5 Port 5/2 Way Air Manual Valve Pneumatic Control Valve Hand Lever Operated Control Valve Reference unit price USD 8.69. White background product image, published as provided. - Category: Pneumatic

Compressed air

Preço de referência

$8.69USD / peça

USD reference unit price from the current listing.

Galeria do produto

Parâmetros técnicos

ParâmetroEspecificação
Motivity TypeHydraulic fluid power
TypeValves
Model Number4H210-08 4H310-10
Valve type5/2Way
Orifice size14mm2(CV=0.78) or 16mm2(CV=0.89) etc.
Port size1/8" or 1/4" or 3/8"
Operating pressure0~0.8MPa(0~116psi)
Max.proof pressure1.5MPa(215psi)
Temperature5~50℃
Material bodyAluminum alloy
LubricationNot required
OperatingManual control direct acting type

Características

  • Published USD reference unit price
  • Specification confirmation before ordering
  • OEM and ODM service available

Listagem de origem: Ver a página original do produto

Imagens detalhadas

Estrutura, conexão, bobina e detalhes de instalação de Válvula solenoide 4H210-08 4H310-10 4H410-15 2 Position 5 Port 5/2 Way Air Manual Valve Pneumatic Control Valve Hand Lever Operated Control Valve Pneumática.

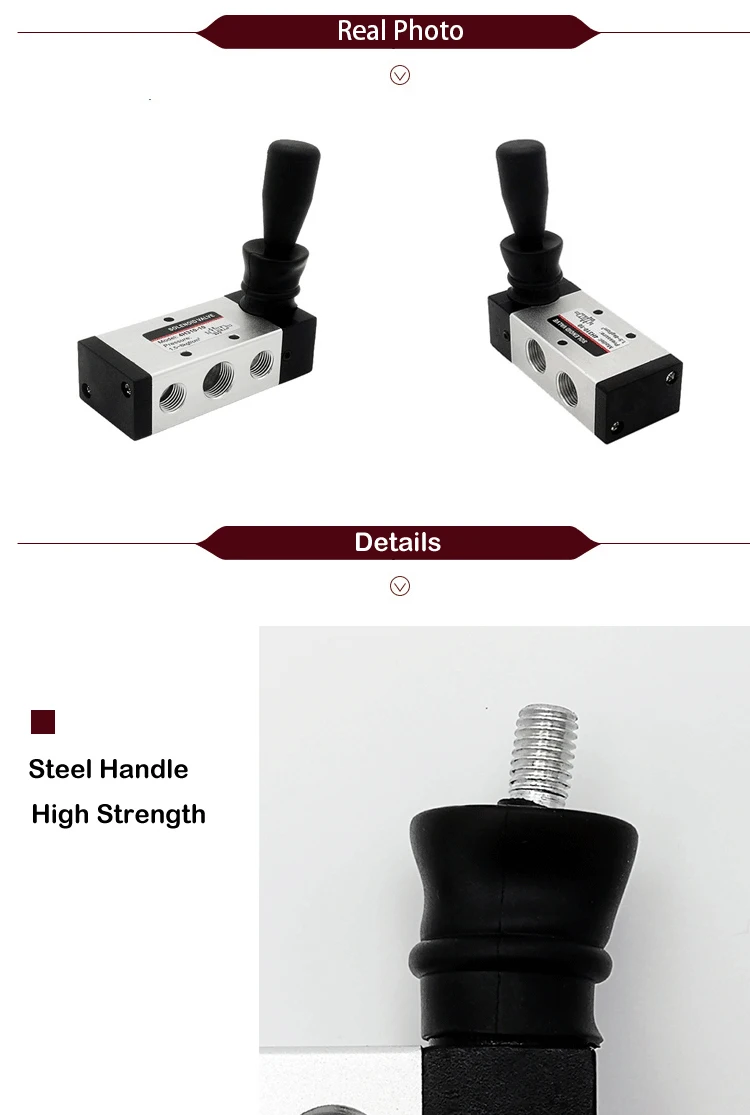

Detalhe 1 de Válvula solenoide 4H210-08 4H310-10 4H410-15 2 Position 5 Port 5/2 Way Air Manual Valve Pneumatic Control Valve Hand Lever Operated Control Valve Pneumática

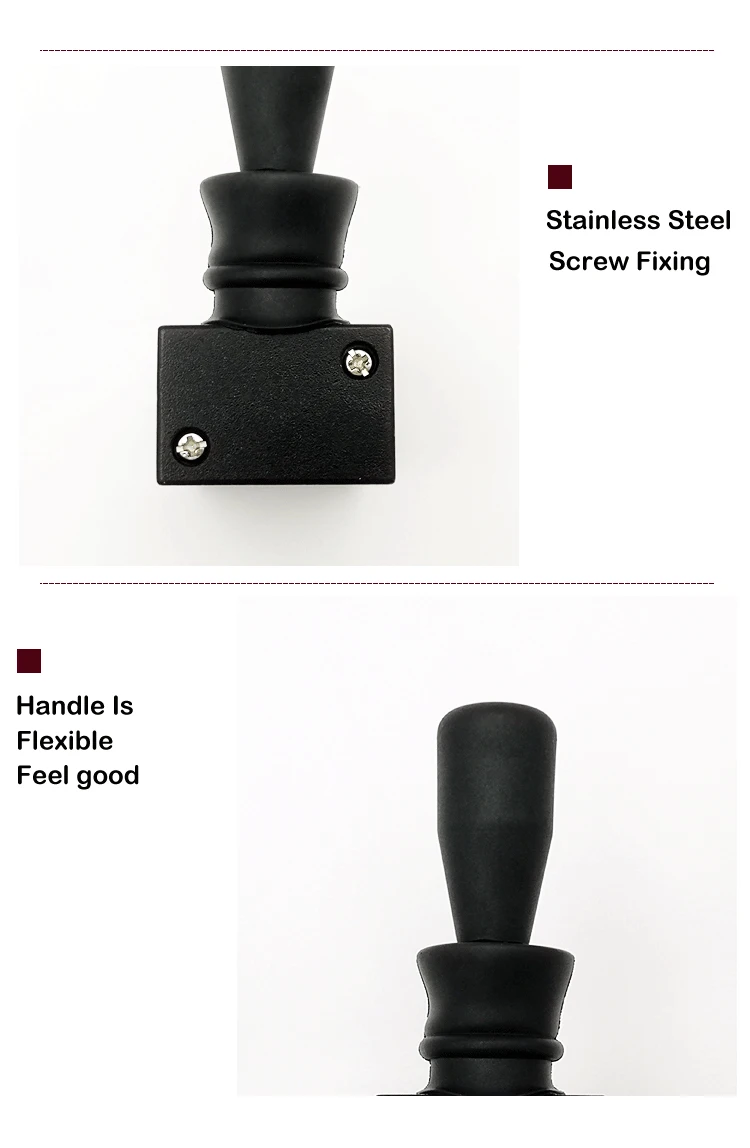

Detalhe 2 de Válvula solenoide 4H210-08 4H310-10 4H410-15 2 Position 5 Port 5/2 Way Air Manual Valve Pneumatic Control Valve Hand Lever Operated Control Valve Pneumática

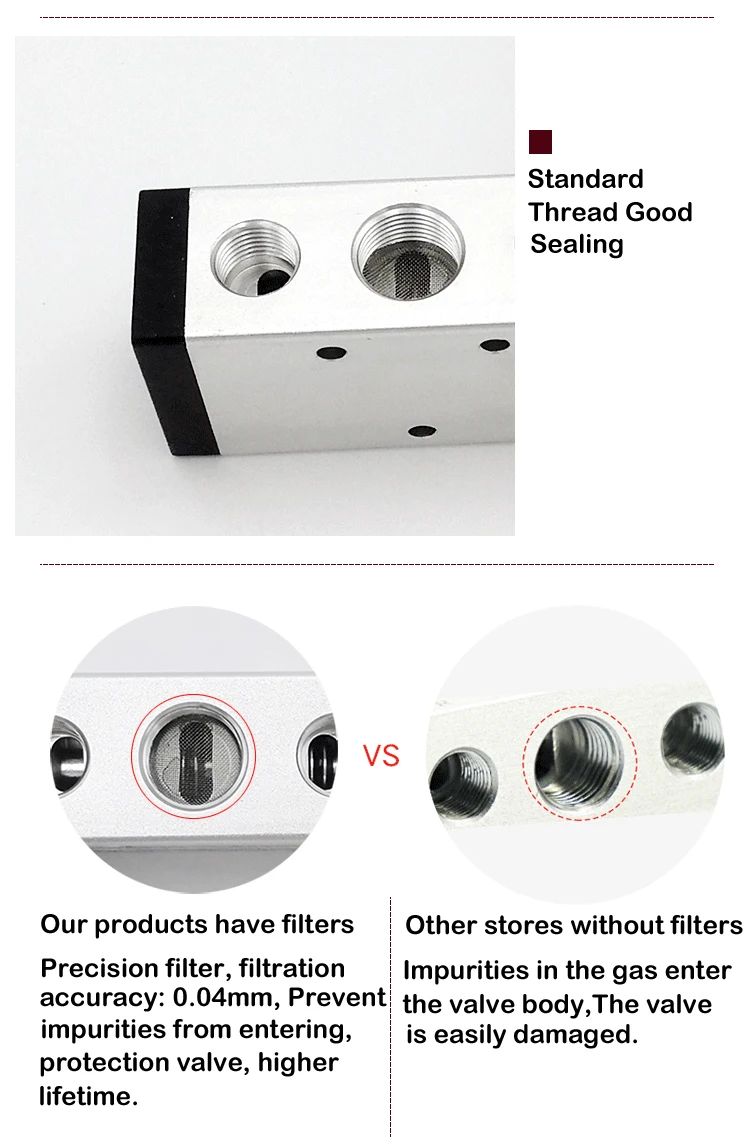

Detalhe 3 de Válvula solenoide 4H210-08 4H310-10 4H410-15 2 Position 5 Port 5/2 Way Air Manual Valve Pneumatic Control Valve Hand Lever Operated Control Valve Pneumática

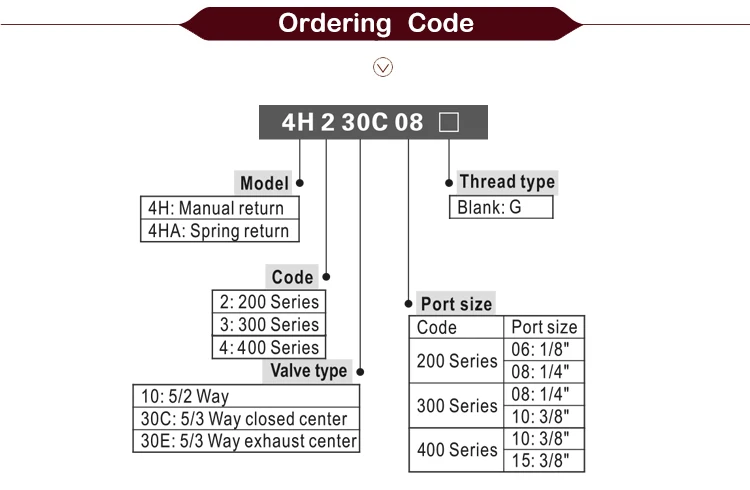

Detalhe 4 de Válvula solenoide 4H210-08 4H310-10 4H410-15 2 Position 5 Port 5/2 Way Air Manual Valve Pneumatic Control Valve Hand Lever Operated Control Valve Pneumática
