Waterproof Motorized Ball Valve Brass IP65 Three-Wire Two-Control Three-Wire One-Control 220V 24V 12V Can Replace Soleno

Waterproof Motorized Ball Valve Brass IP65 Three-Wire Two-Control Three-Wire One-Control 220V 24V 12V Can Replace Soleno

Waterproof Motorized Ball Valve Brass IP65 Three-Wire Two-Control Three-Wire One-Control 220V 24V 12V Can Replace Soleno Reference unit price USD 65.57.

Waterproof Motorized Ball Valve Brass IP65 Three-Wire Two-Control Three-Wire One-Control 220V 24V 12V Can Replace Soleno Reference unit price USD 65.57. White background product image, published as provided. - Coil / supply voltage: 220V, 24V, 12V - Body material: Brass

Compressed air

Preço de referência

$36.06USD / peça

USD reference unit price from the current listing.

Galeria do produto

Parâmetros técnicos

ParâmetroEspecificação
Coil / supply voltage220V, 24V, 12V
Body materialBrass
EU LVD VoltageHigh voltage: Above 50Vac or 75Vdc
StructureBall
Port Size1/2"(DN15), 3/4"(DN20), 1"(DN25), 1-1/4"(DN32),1-1/2"(DN40), 2"(DN50)
MediaWater
MaterialBrass
Temperature of Media0-95℃
PowerElectric
Standard or NonstandardStandard
Pressure1.6Mpa
Model NumberWaterproof Electric Ball Valve
Brand NameAcarps
Power SourceAc
CertificationCE
MediumCold water, Hot water or 50% Glycol solution
Wiring mode3-Wire two-control, 3-Wire one-control, 2-wire Power-off reset
Driving voltage220VAC 24VDC 12VDC
Applicable medium temperature0-95℃
Power consumption6 W (only when the valve is opened and closed)
Action time5-15 S
Nominal Pressure1.6 Mpa
Lead length30 CM
Connection methodG female thread

Características

  • Published USD reference unit price
  • Specification confirmation before ordering
  • OEM and ODM service available

Listagem de origem: Ver a página original do produto

Imagens detalhadas

Estrutura, conexão, bobina e detalhes de instalação de Válvula solenoide Waterproof Motorized Ball Valve Brass IP65 Three-Wire Two-Control Three-Wire One-Control 220V 24V 12V Can Replace Soleno Pneumática.

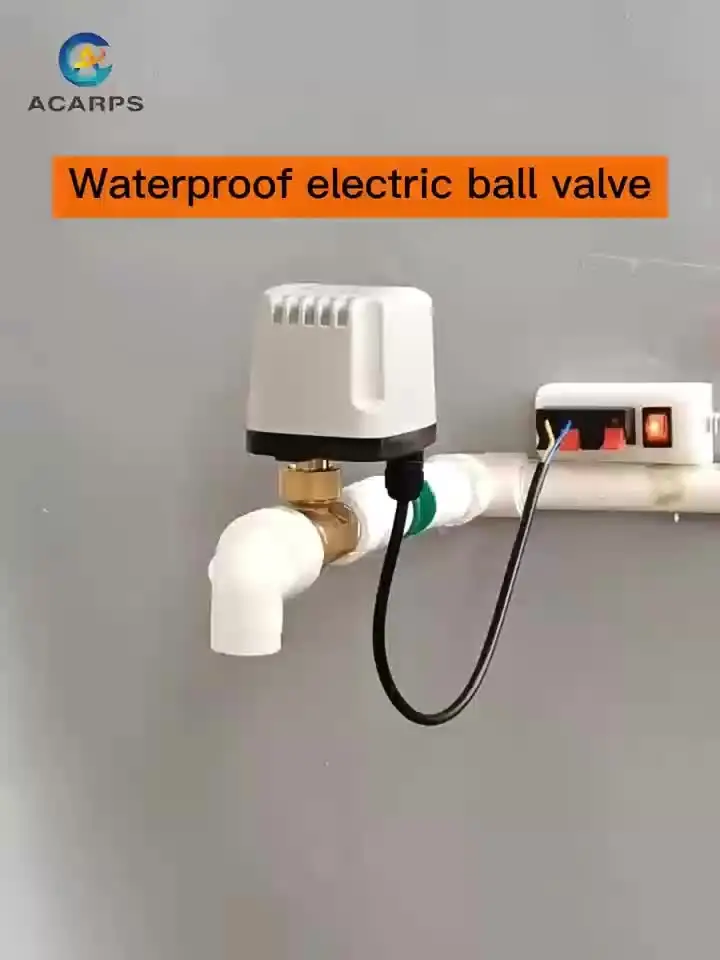

Detalhe 1 de Válvula solenoide Waterproof Motorized Ball Valve Brass IP65 Three-Wire Two-Control Three-Wire One-Control 220V 24V 12V Can Replace Soleno Pneumática

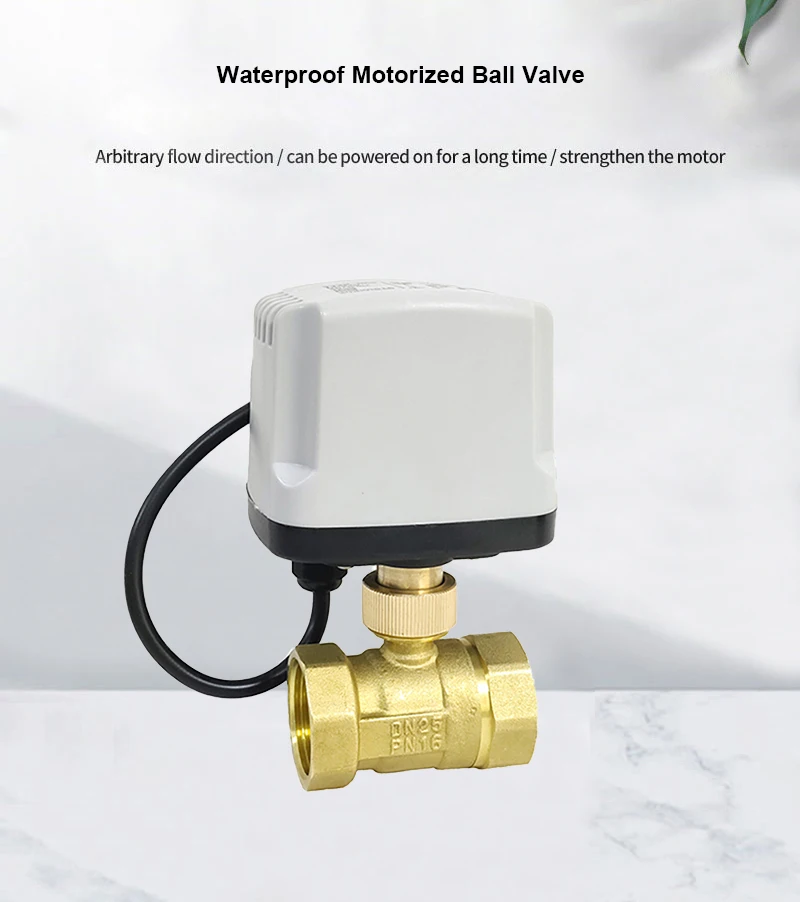

Detalhe 2 de Válvula solenoide Waterproof Motorized Ball Valve Brass IP65 Three-Wire Two-Control Three-Wire One-Control 220V 24V 12V Can Replace Soleno Pneumática

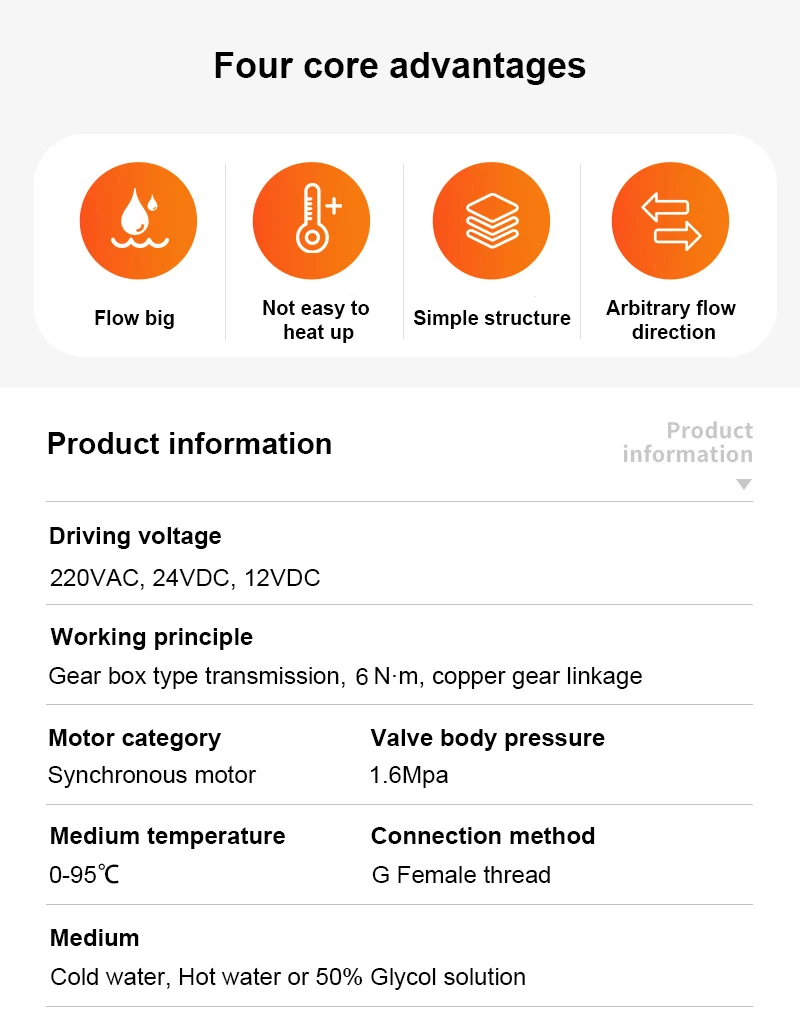

Detalhe 3 de Válvula solenoide Waterproof Motorized Ball Valve Brass IP65 Three-Wire Two-Control Three-Wire One-Control 220V 24V 12V Can Replace Soleno Pneumática

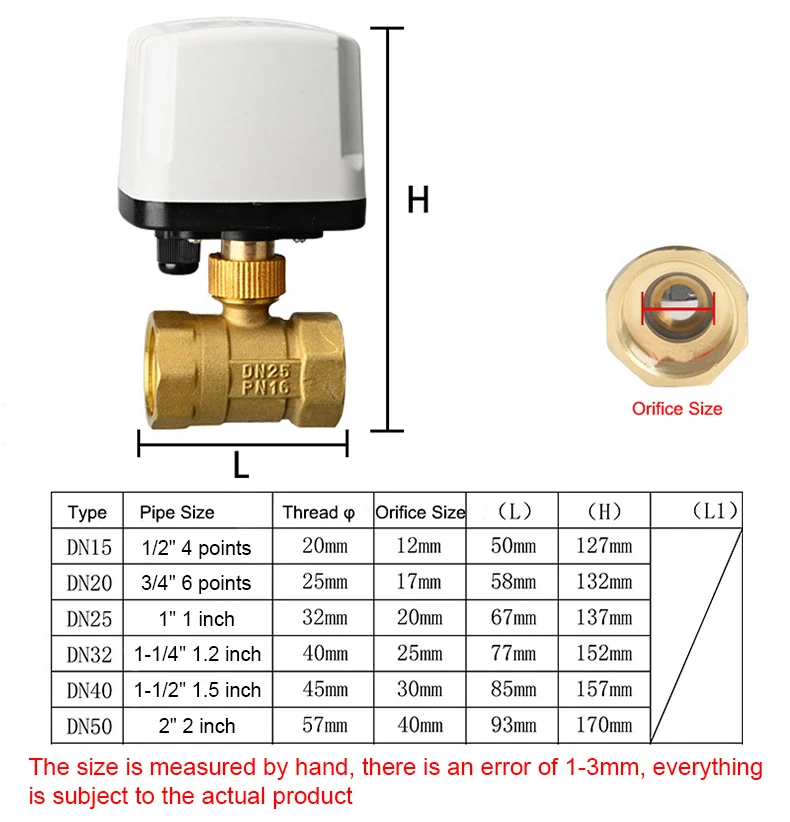

Detalhe 4 de Válvula solenoide Waterproof Motorized Ball Valve Brass IP65 Three-Wire Two-Control Three-Wire One-Control 220V 24V 12V Can Replace Soleno Pneumática
