3 way pneumatic High frequency solenoid valve vacuum valve1/8 1/4 thread 12V 24V 220V VT307/VT307V
3 way pneumatic High frequency solenoid valve vacuum valve1/8 1/4 thread 12V 24V 220V VT307/VT307V
Air / Water
Preço de referência
$22.79USD / peça
Reference unit price, USD. Batch price confirmed at quotation.
| Parâmetro | Especificação |
|---|---|
| Category | Pneumatic Solenoid Valve |
| Media | Air / Water |
| Voltage | Not specified |
| Reference Price | USD 29.20 |
| Listing Status | Quoted on request |
| EU LVD Voltage | Electricty-free |
| Structure | control |
| Port Size | 1/8",1/4" |
| Material | Alloy |
| Temperature of Media | Medium Temperature |
| Power | Solenoid |
| Standard or Nonstandard | Standard |
| Pressure | Low Pressure |
| Model Number | VT307/VT307V |
| Motion Pattern | for normally close or nomally open |
| Response time | 20 ms or less (at the pressure of 0.5Mpa) |
| Max. operating frequency | 10Hz |
| Lubrication | Not required |
| Manual override | Non-locking push type |
| Mounting orientation | Unrestricted |
| Shock/Vibration resistandce | 150/50 m/s |
| sku | IE0098 |
Listagem de origem: Ver a página original do produto

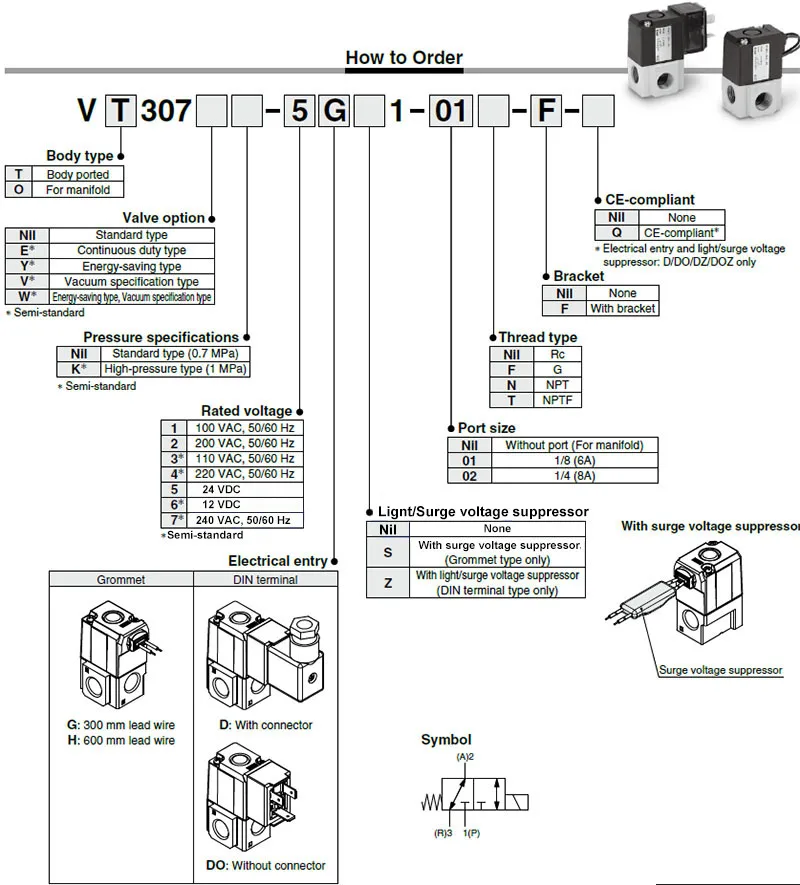

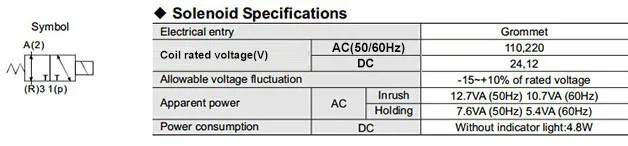

Estrutura, conexão, bobina e detalhes de instalação de Válvula solenoide 3 Pneumática.
