3V120-06 Pneumatic Air Solenoid Valve Two Position Three-Way AC220V DC24V DC12V AC110V AC24V Normally Closed Valve

3V120-06 Pneumatic Air Solenoid Valve Two Position Three-Way AC220V DC24V DC12V AC110V AC24V Normally Closed Valve

3V120-06 Pneumatic Air Solenoid Valve Two Position Three-Way AC220V DC24V DC12V AC110V AC24V Normally Closed Valve

3V120-06 Pneumatic Air Solenoid Valve Two Position Three-Way AC220V DC24V DC12V AC110V AC24V Normally Closed Valve

Air

3V120-06

Preço de referência

$20.86USD / peça

Reference unit price, USD. Batch price confirmed at quotation.

Galeria do produto

Parâmetros técnicos

ParâmetroEspecificação
CategoryPneumatic Solenoid Valve
MediaAir
VoltageAC24V, AC110V, AC220V, DC12V, DC24V
Reference PriceUSD 24.65
Listing StatusQuoted on request
TypeValves
Model Number3V120-06
Position and way NO.3 port 2 position
Port sizeAir inlet=Air outlet=PT1/8"
Operating pressure1.5~8kgf/cm2
Max.proof pressure10.5kgf/cm2
Temp.range5~60 C
Coil insulation &protection gradeIP65(DIN 40050)
Highest action frequency5 cycles/per.sec.
Initial stateNormally closed

Listagem de origem: Ver a página original do produto

Imagens detalhadas

Estrutura, conexão, bobina e detalhes de instalação de Válvula solenoide 3V120-06 Pneumática.

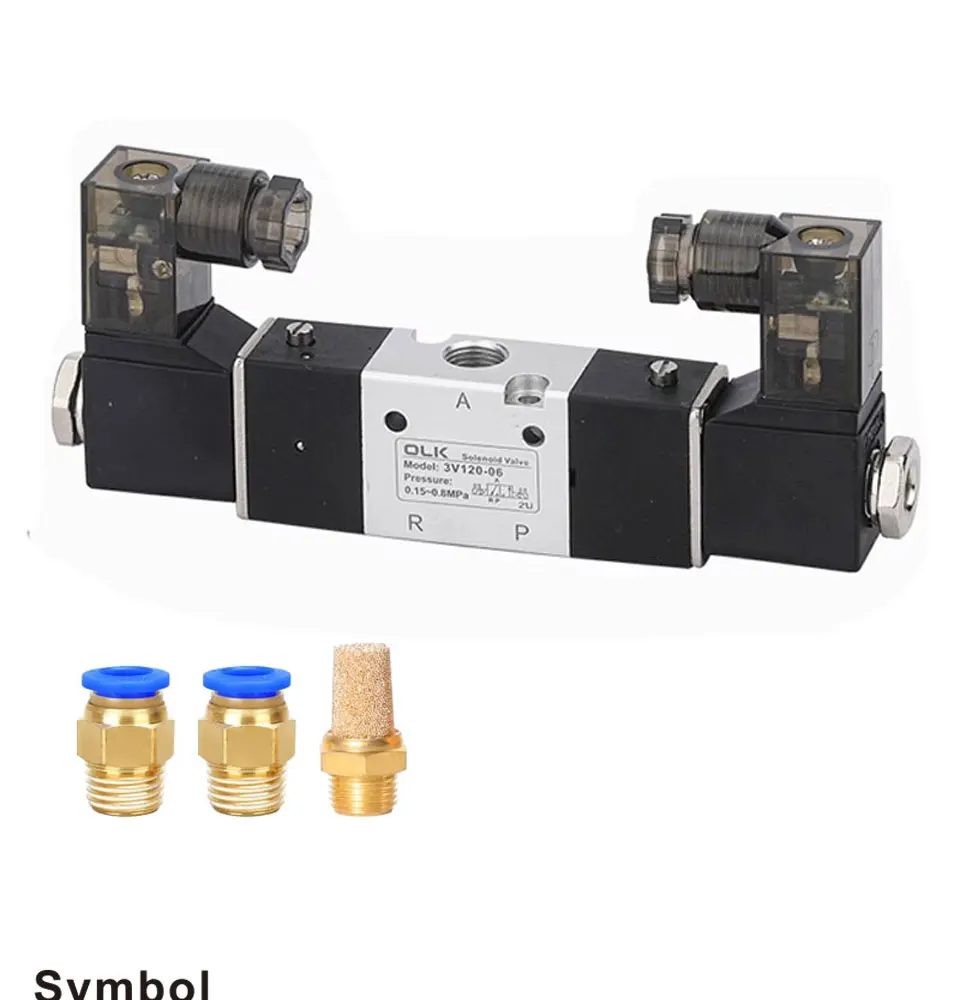

Detalhe 1 de Válvula solenoide 3V120-06 Pneumática

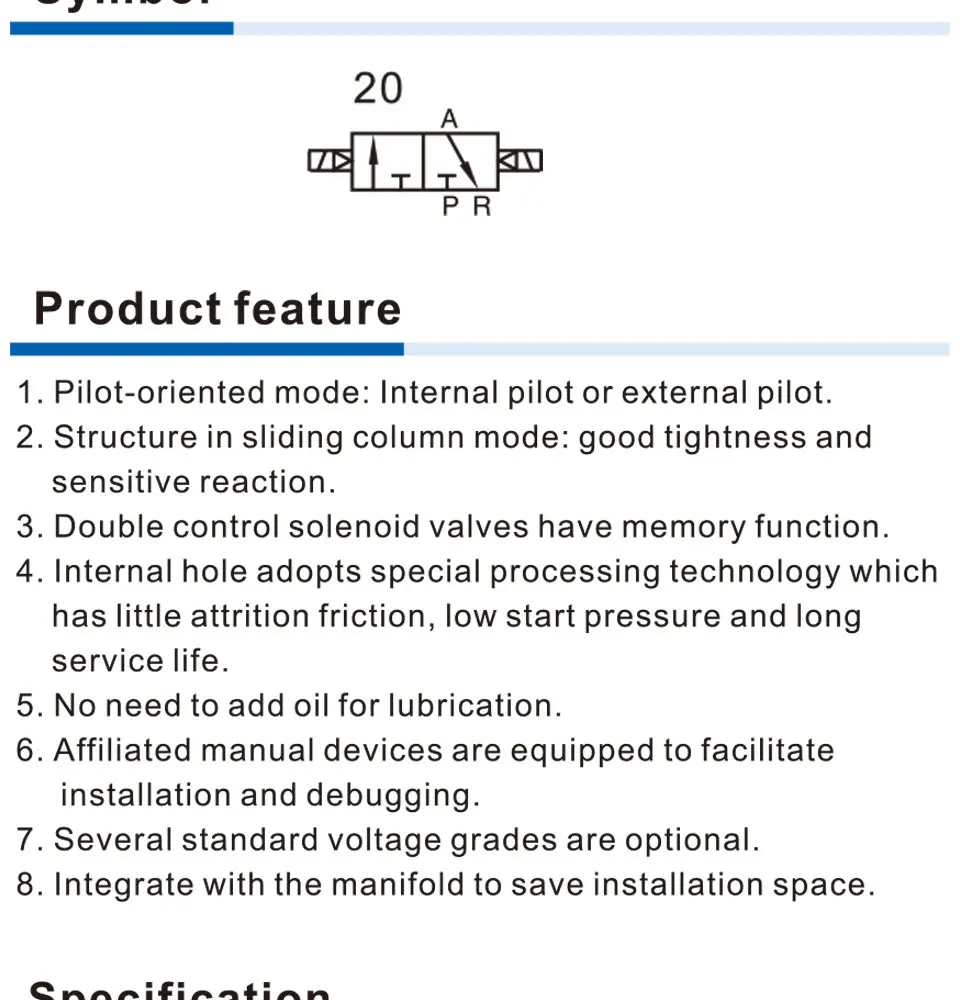

Detalhe 2 de Válvula solenoide 3V120-06 Pneumática

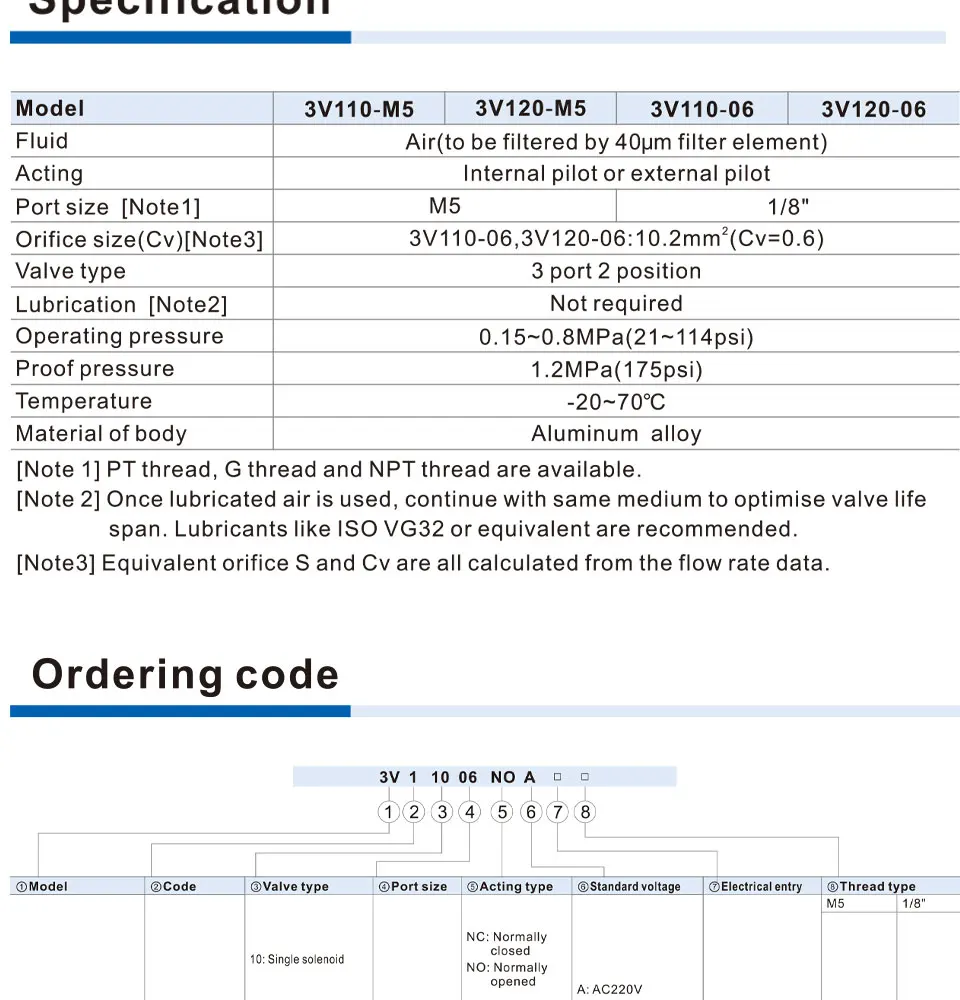

Detalhe 3 de Válvula solenoide 3V120-06 Pneumática

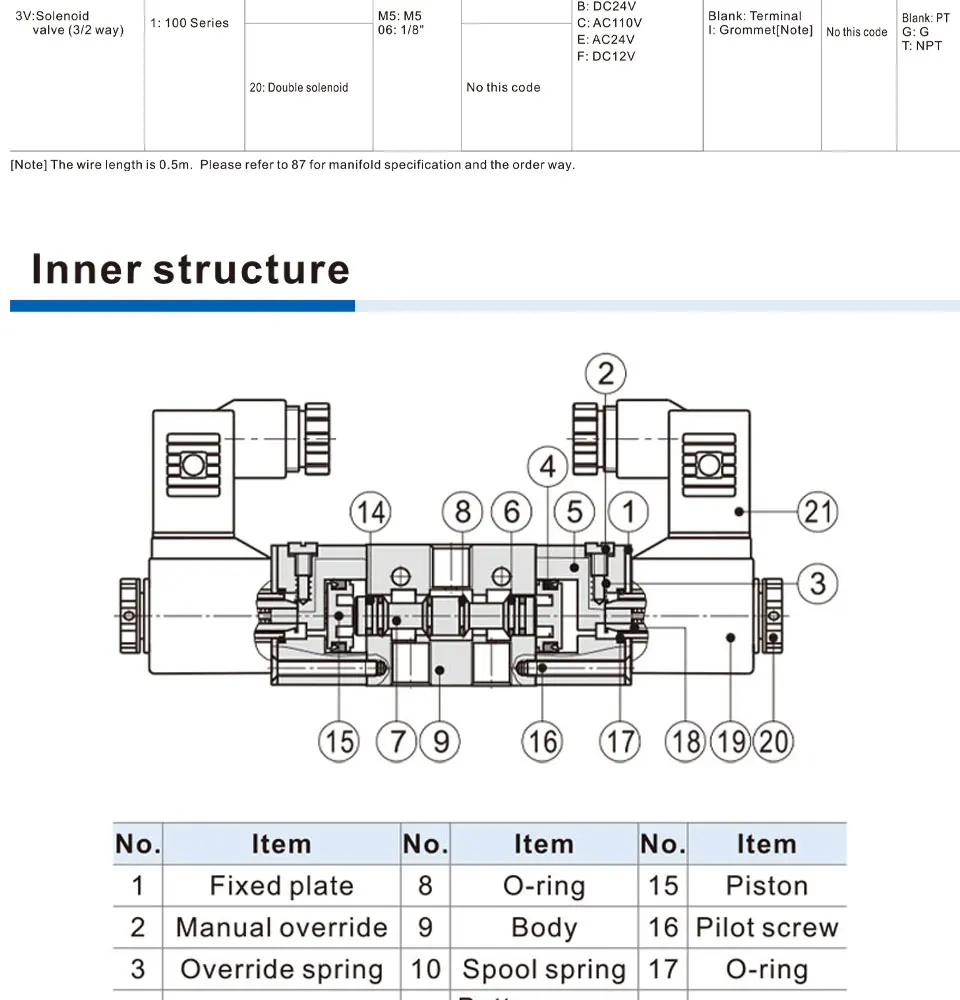

Detalhe 4 de Válvula solenoide 3V120-06 Pneumática
