DN15-50 Motorized Ball Valve Actuator Accessories 2-wire power-off reset 220V 110V 24V 12V Electric Valve Motor

Name: DN15-50 Motorized Ball Valve Actuator Accessories 2-wire power-off reset 220V 110V 24V 12V Electric Valve Motor
Brand: GO GO AUTOMATIC COMPANY LIMITED
Price: 25.92 USD
Availability: InStock

DN15-50 Motorized Ball Valve Actuator Accessories 2-wire power-off reset 220V 110V 24V 12V Electric Valve Motor Reference unit price USD 25.92.

DN15-50 Motorized Ball Valve Actuator Accessories 2-wire power-off reset 220V 110V 24V 12V Electric Valve Motor Reference unit price USD 25.92. White background product image, published as provided. - Port size: DN15 - Coil / supply voltage: 220V, 110V, 24V, 12V

Compressed air

Prezzo indicativo

$25.92USD / pezzo

USD reference unit price from the current listing.

Galleria prodotto

Specifiche tecniche

Parametro	Valore
Port size	DN15
Coil / supply voltage	220V, 110V, 24V, 12V
EU LVD Voltage	High voltage: Above 50Vac or 75Vdc
Structure	Ball
Media	Water
Material	Brass
Standard or Nonstandard	Standard
Model Number	Electric Actuator Accessories
Brand Name	Acarps
Certification	CE
Medium	Cold water, Hot water or 50% Glycol solution

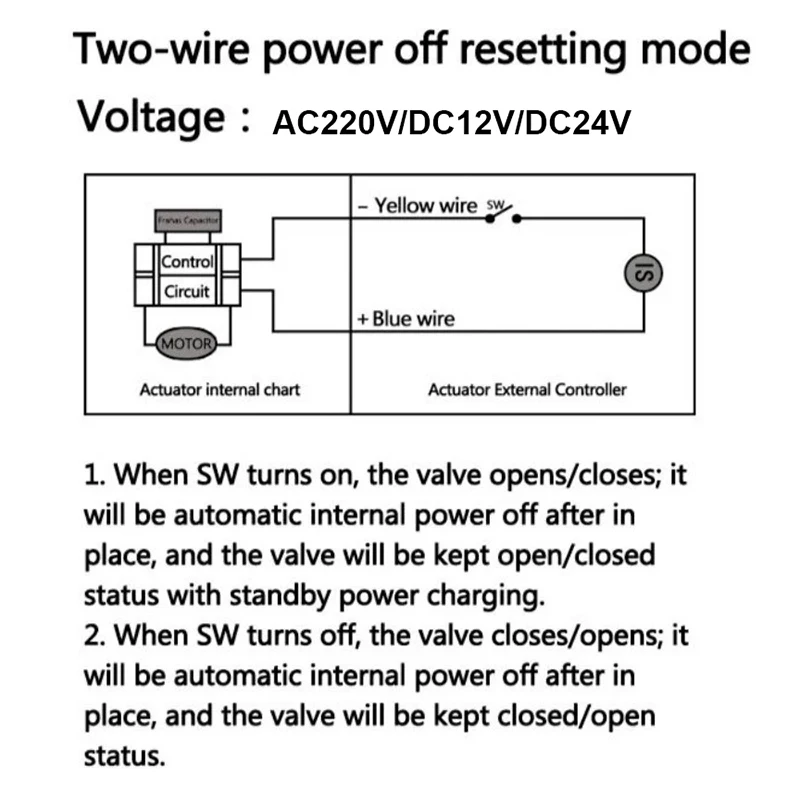

Wiring mode	2-Wire Power-off reset
Driving voltage	220VAC,110VAC, 24VAC, 24VDC, 12VDC
Power consumption	6 W (only when the valve is opened and closed)
Action time	5-15 S
Nominal Pressure	1.6 Mpa
Lead length	30 CM
Connection method	G female thread

Caratteristiche

Published USD reference unit price
Specification confirmation before ordering
OEM and ODM service available

Annuncio originale: Apri la pagina prodotto originale

Immagini di dettaglio

Costruzione, attacco, bobina e note di installazione per Elettrovalvola DN15-50 Motorized Ball Valve Actuator Accessories 2-wire power-off reset 220V 110V 24V 12V Electric Valve Motor Pneumatica.

Elettrovalvola DN15-50 Motorized Ball Valve Actuator Accessories 2-wire power-off reset 220V 110V 24V 12V Electric Valve Motor Pneumatica — dettaglio 1
