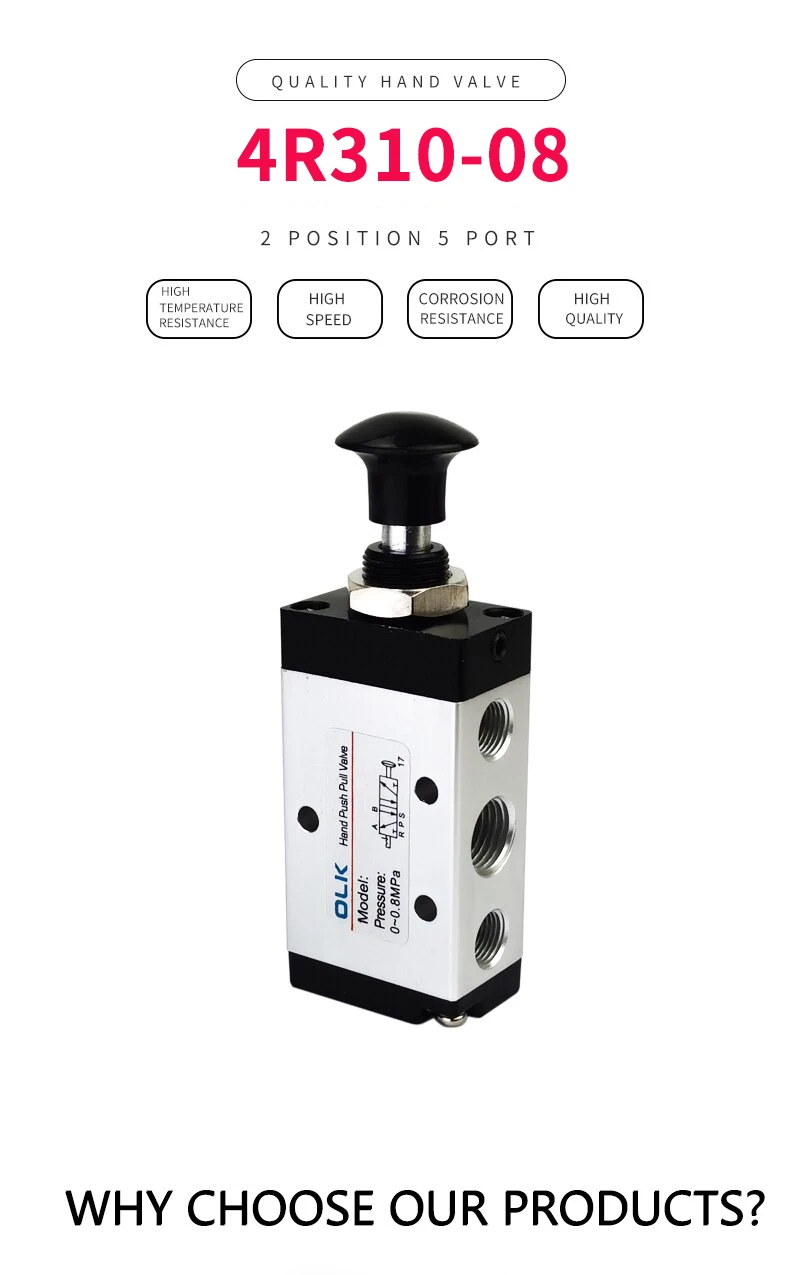

4R310-08 Manual valve 2 Way 5 Position Push and pull Pneumatic switch of directional valve Reference unit price USD 14.93.
4R310-08 Manual valve 2 Way 5 Position Push and pull Pneumatic switch of directional valve Reference unit price USD 14.93. White background product image, published as provided. - Category: Pneumatic
Compressed air
Prezzo indicativo
$12.24USD / pezzo
USD reference unit price from the current listing.
| Parametro | Valore |
|---|---|
| Type | Valves |
| Model Number | 4R310-08 |
| Fluid | Air (To Be Filtered By 40μm Filter Element) |
| Operating | Acting Type Controlled By Foot |
| Lubrication | Not Required |
| Pressure Range | 0~0.8MPa(0~114psi) |
| Proof Pressure | 1.5MPa(215psi) |
| Temperature | 0~60℃ |
| Material Body | Aluminum Alloy |
Annuncio originale: Apri la pagina prodotto originale
Costruzione, attacco, bobina e note di installazione per Elettrovalvola 4R310-08 Manual valve 2 Way 5 Position Push and pull Pneumatic switch of directional valve Pneumatica.
