GOGO 0-120bar/90bar/50bar/35bar 2 Way High Pressure Air Solenoid Valve 1/4 BSP 12V 24V DC Normal Close PG Brass Water Valve 1/8

GOGO 0-120bar/90bar/50bar/35bar 2 Way High Pressure Air Solenoid Valve 1/4 BSP 12V 24V DC Normal Close PG Brass Water Valve 1/8

GOGO own-store 0-120bar/90bar/50bar/35bar 2 Way High Pressure Air Solenoid Valve 1/4 BSP 12V 24V DC Normal Close PG Brass Water Valve 1/8, supplied by GO GO AUTOMATIC COMPANY LIMITED with USD 21.34 reference price.

GOGO 0-120bar/90bar/50bar/35bar 2 Way High Pressure Air Solenoid Valve 1/4 BSP 12V 24V DC Normal Close PG Brass Water Valve 1/8 Own-store product from GOGO Automatic Company Ltd (brand GogoValve). Reference unit price USD 21.34. Images are published as provided by the own store. - Port size: 1/4 BSP - Working pressure: 120bar - Coil voltage: 12V, 24V DC - Brand: GOGO / GogoValve - Supply source: GOGO Automatic own store

Compressed air

GOGO-OWN-10

Prezzo indicativo

$18.15USD / pezzo

USD reference unit price from the GOGO Automatic own store listing.

Galleria prodotto

Specifiche tecniche

ParametroValore
Port size1/4 BSP
Working pressure120bar
Coil voltage12V, 24V DC
BrandGOGO / GogoValve
Supply sourceGOGO Automatic own store
EU LVD VoltageLow voltage: Below 50Vac or 75Vdc
NC or NONormally Closed
Structurecontrol
MediaGas
MaterialBrass
Temperature of MediaMedium Temperature
PowerSolenoid
Standard or NonstandardStandard
PressureHigh Pressure
Model NumberGPG-01/M02/02/M03
Brand NameATC GOGO AUTOMATIC
CertificationCE
Formplug type
ForAir ,gas ,oil ,water
Operating Temperature-5~80°C
Orifice1mm/1.5mm/2mm/2.5mm
typeNormally colse
Max.pressure120bar/90bar/50bar/35bar
VoltageAC110V AC220V 24V DC 12V DC

Caratteristiche

  • GOGO own-store product
  • USD 21.34 reference unit price
  • OEM and ODM service available
  • Tested before shipment

Annuncio originale: Apri la pagina prodotto originale

Immagini di dettaglio

Costruzione, attacco, bobina e note di installazione per Elettrovalvola GOGO-OWN-10 Pneumatica.

Elettrovalvola GOGO-OWN-10 Pneumatica — dettaglio 1

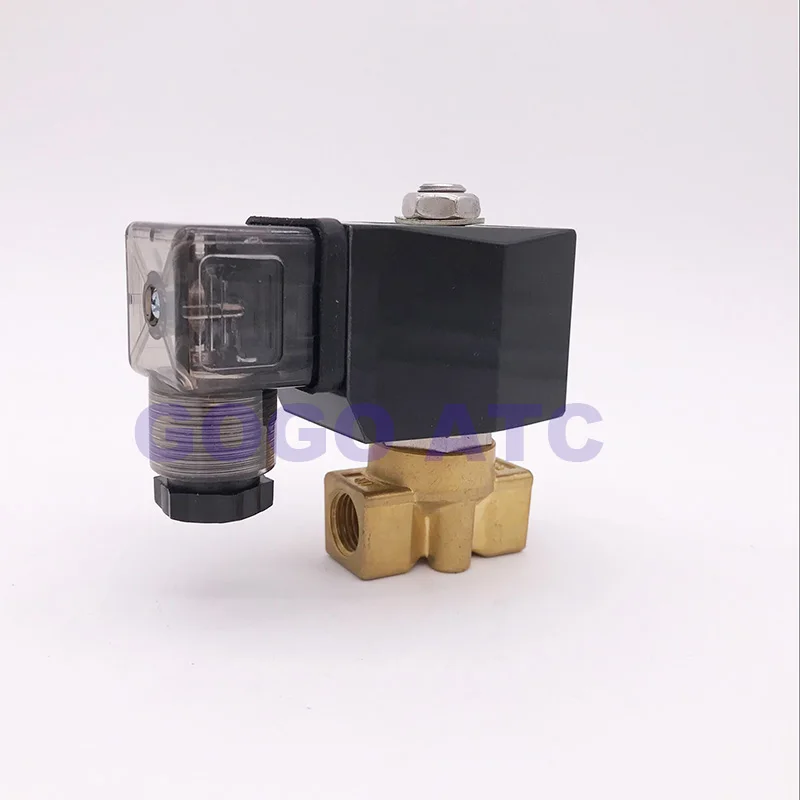

Elettrovalvola GOGO-OWN-10 Pneumatica — dettaglio 2
Elettrovalvola GOGO-OWN-10 Pneumatica — dettaglio 3

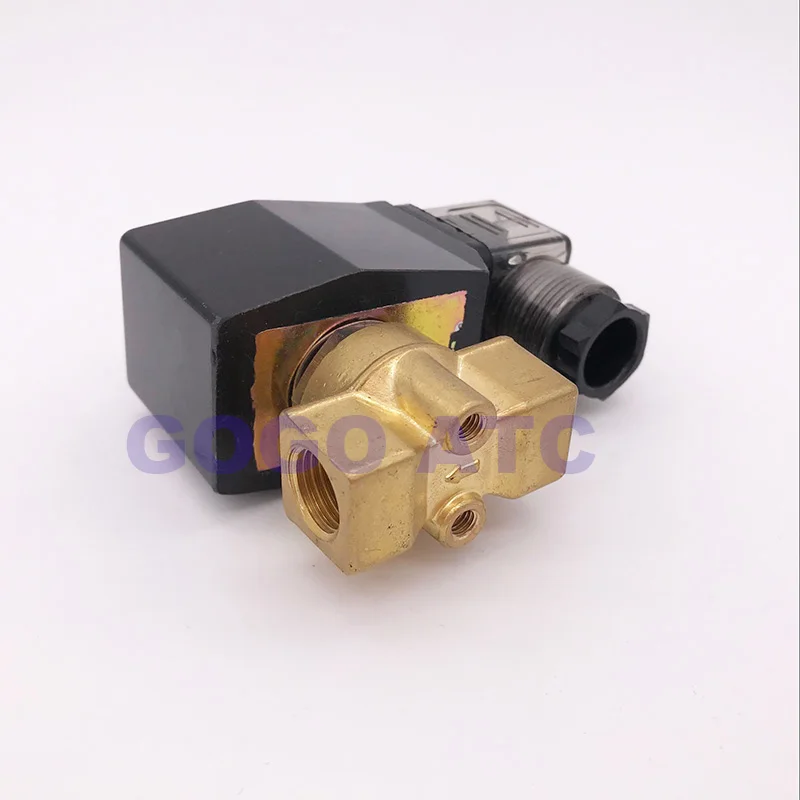

Elettrovalvola GOGO-OWN-10 Pneumatica — dettaglio 4
