3V210-08NC 3V210-08-NO Two Position Three Normally Open And Normally Closed Pneumatic Solenoid Valve Air Valve

3V210-08NC 3V210-08-NO Two Position Three Normally Open And Normally Closed Pneumatic Solenoid Valve Air Valve

3V210-08NC 3V210-08-NO Two Position Three Normally Open And Normally Closed Pneumatic Solenoid Valve Air Valve

3V210-08NC 3V210-08-NO Two Position Three Normally Open And Normally Closed Pneumatic Solenoid Valve Air Valve

Air

3V210-08NC

Prezzo indicativo

$15.26USD / pezzo

Reference unit price, USD. Batch price confirmed at quotation.

Galleria prodotto

Specifiche tecniche

ParametroValore
CategoryPneumatic Solenoid Valve
MediaAir
VoltageNot specified
Reference PriceUSD 17.94
Listing StatusQuoted on request
TypeValves
Model Number3V210-08 3V210-08-NO
Position and way No.Two-position Three-way
Working Patten40 Micron Fitered Air
Working Pressure0.2-0.8Mpa
Max. Pressure ressostance1.2Mpa
Operating Temperature5-50 ℃
Voltsge Range-15% -- +10%
Consume powerAC: 6.0VA DC:4.8W
Highest Acton Frequncy5Cycle/Sec
Shor test Excition Time0.05 Second
Initial stateNormally closed

Annuncio originale: Apri la pagina prodotto originale

Immagini di dettaglio

Costruzione, attacco, bobina e note di installazione per Elettrovalvola 3V210-08NC Pneumatica.

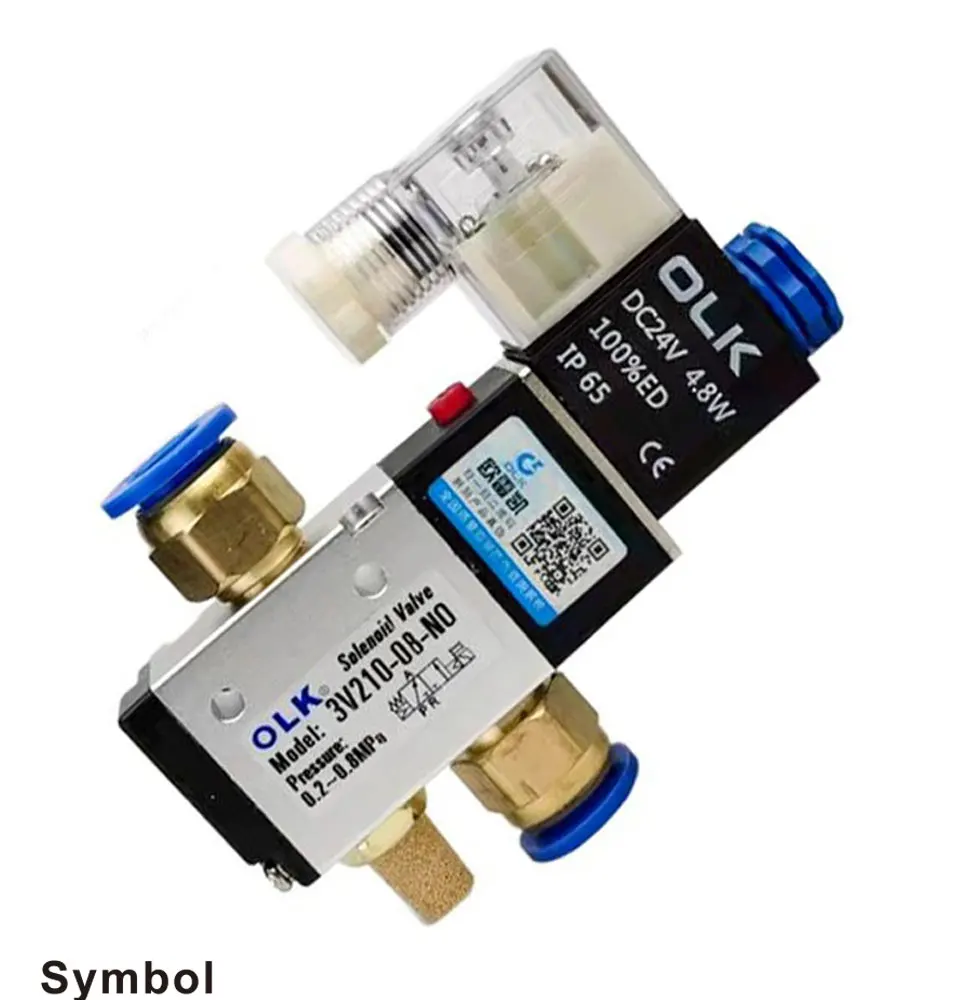

Elettrovalvola 3V210-08NC Pneumatica — dettaglio 1

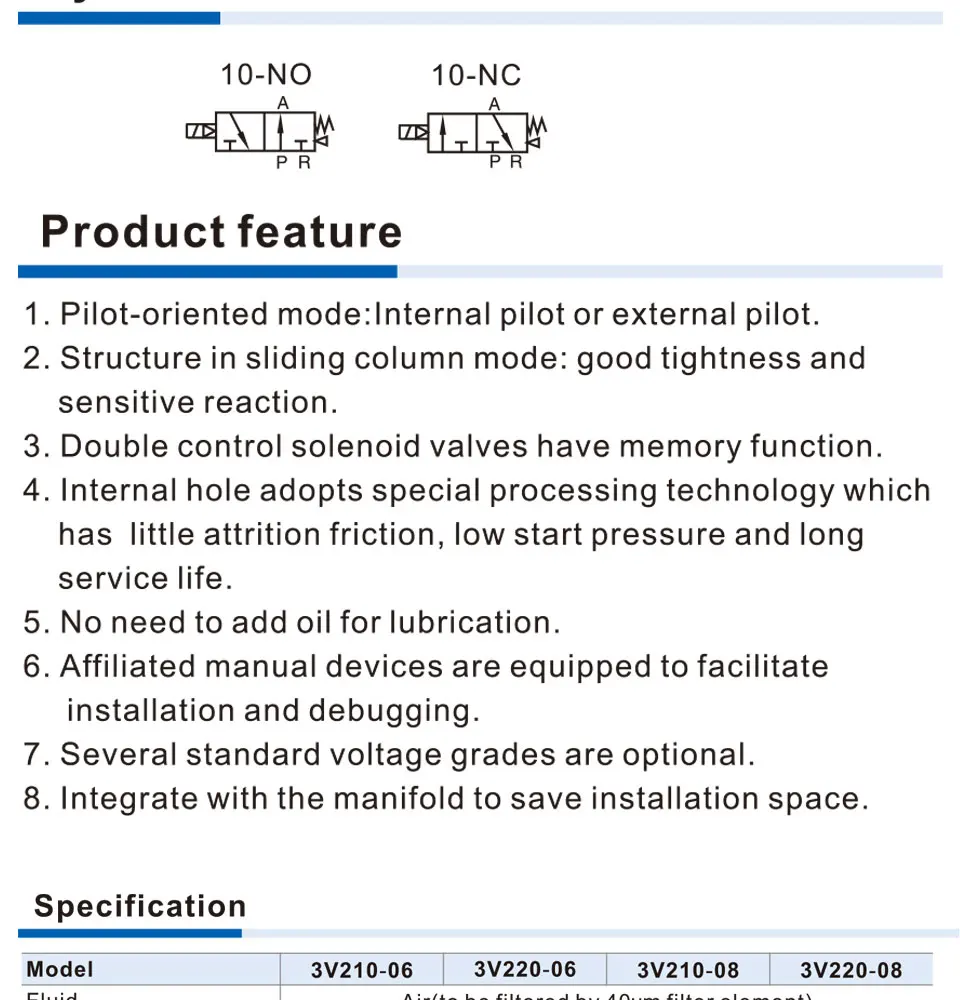

Elettrovalvola 3V210-08NC Pneumatica — dettaglio 2

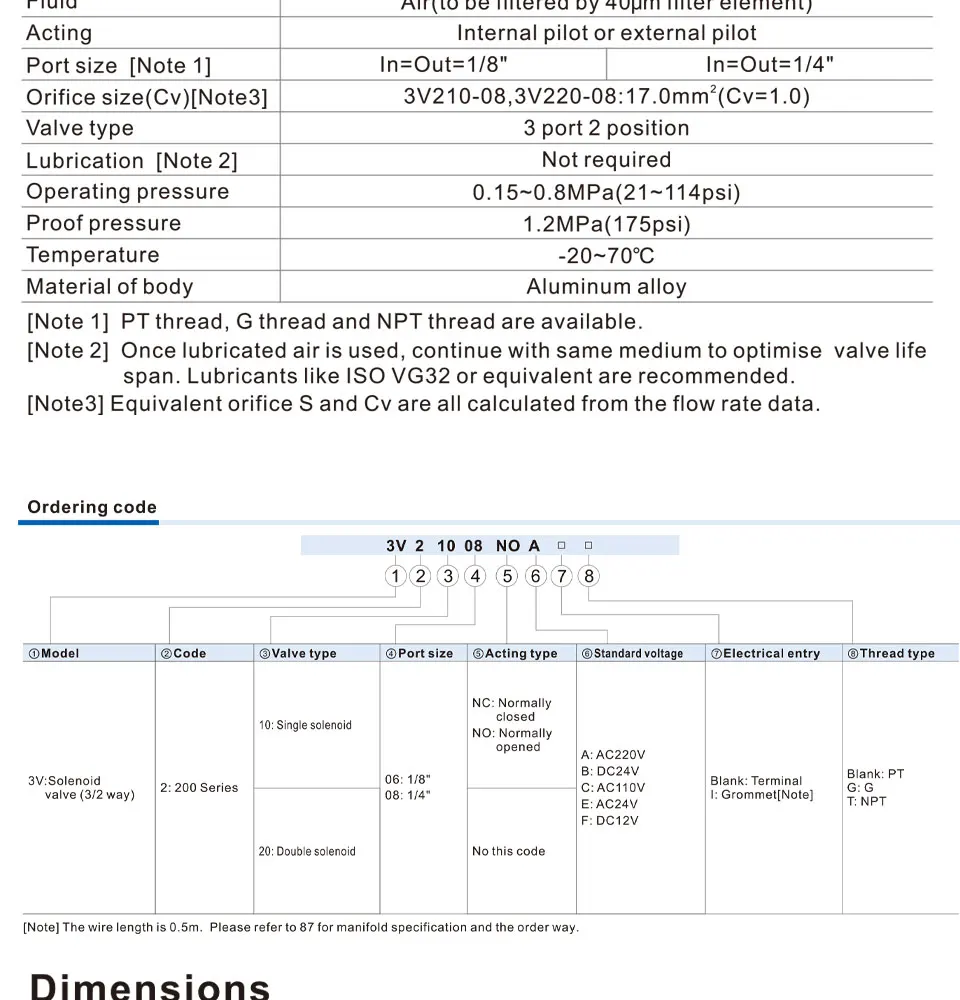

Elettrovalvola 3V210-08NC Pneumatica — dettaglio 3

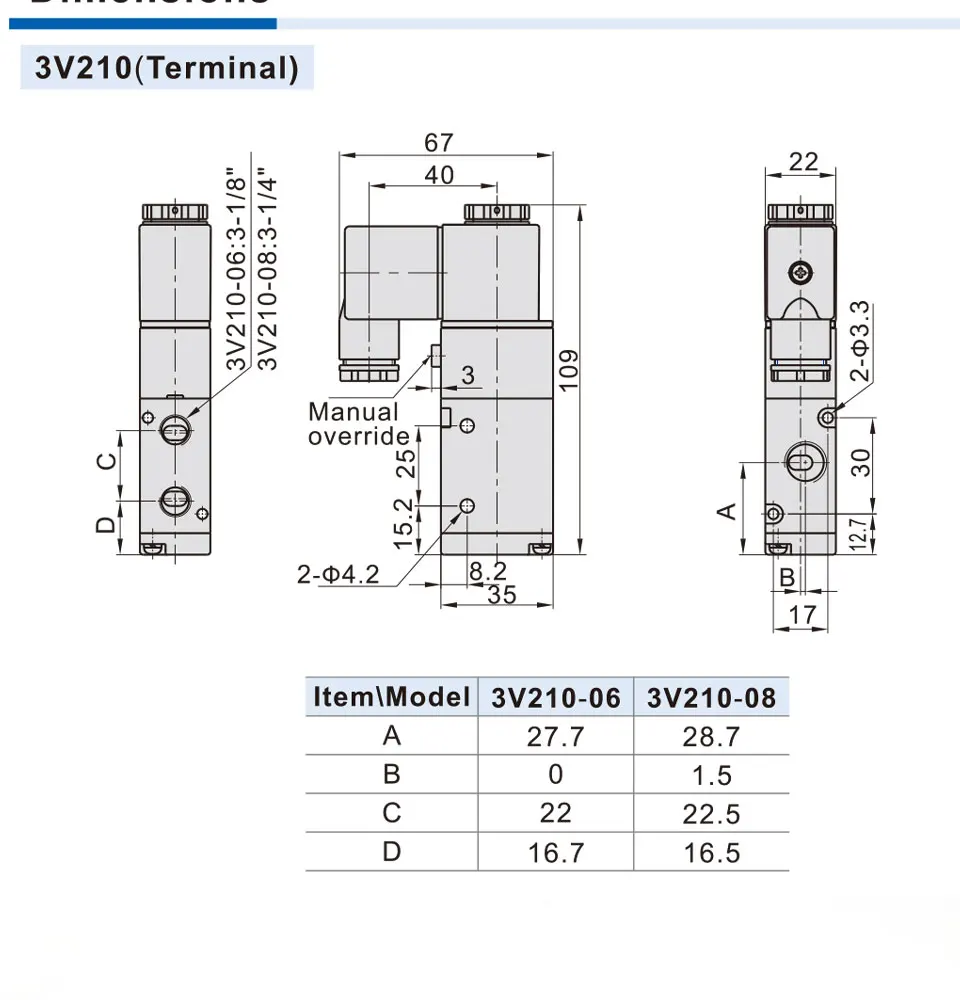

Elettrovalvola 3V210-08NC Pneumatica — dettaglio 4
