FV-02 2 Way 2 Position Foot Pneumatic Pedal Valve Tool Switch Air Valves With PC Connector 1/4BSP Threaded

FV-02 2 Way 2 Position Foot Pneumatic Pedal Valve Tool Switch Air Valves With PC Connector 1/4BSP Threaded

FV-02 2 Way 2 Position Foot Pneumatic Pedal Valve Tool Switch Air Valves With PC Connector 1/4BSP Threaded Reference unit price USD 18.65.

FV-02 2 Way 2 Position Foot Pneumatic Pedal Valve Tool Switch Air Valves With PC Connector 1/4BSP Threaded Reference unit price USD 18.65. White background product image, published as provided. - Category: Pneumatic

Compressed air

FV-02

Precio de referencia

$14.93USD / unidad

USD reference unit price from the current listing.

Galería del producto

Parámetros técnicos

ParámetroEspecificación
TypeFittings
Model NumberFV-02
Valve type2/2Way
Operating pressure0~0.8MPa(0~116psi)
Max.proof pressure1.5MPa(215psi)
Temperature5~50℃
Material bodyAluminum alloy
LubricationNot required
OperatingManual control direct acting type

Características

  • Published USD reference unit price
  • Specification confirmation before ordering
  • OEM and ODM service available

Listado de origen: Ver la página original del producto

Imágenes detalladas

Estructura, conexión, bobina y detalles de instalación de Electroválvula FV-02 Neumática.

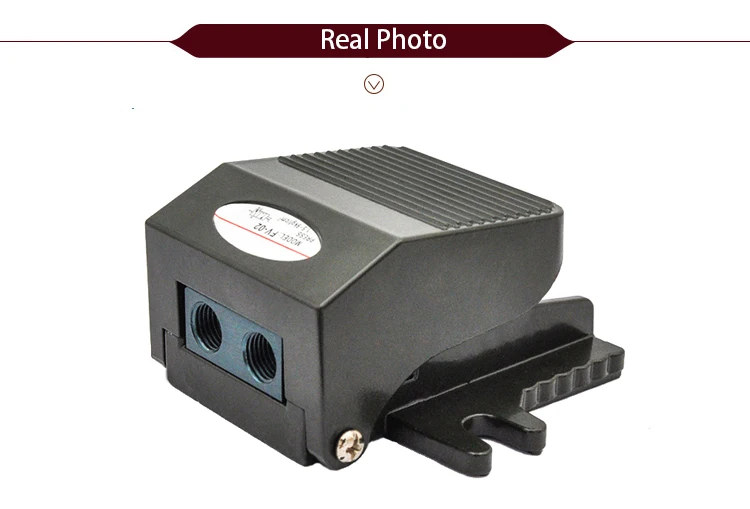

Detalle 1 de Electroválvula FV-02 Neumática

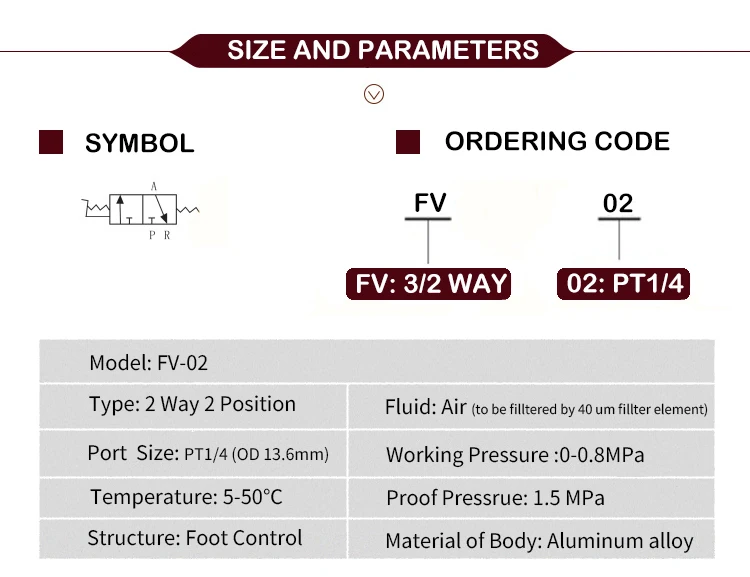

Detalle 2 de Electroválvula FV-02 Neumática

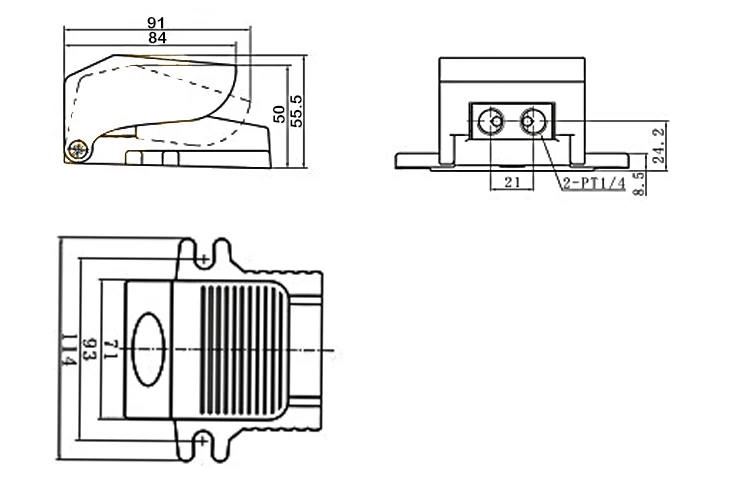

Detalle 3 de Electroválvula FV-02 Neumática

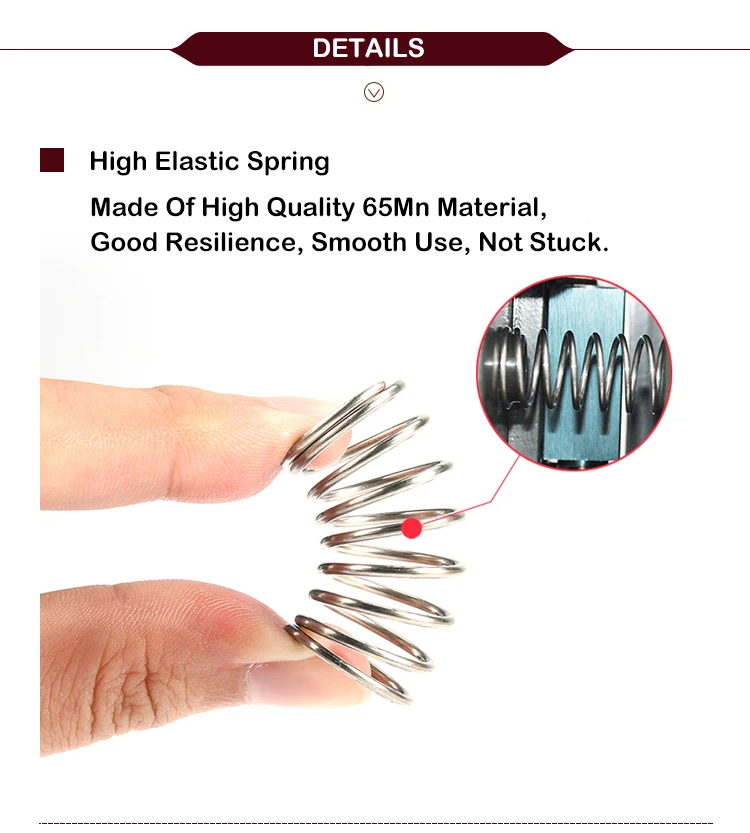

Detalle 4 de Electroválvula FV-02 Neumática
