DN40 Electric Control Valve 4-20mA or 0-10V Control, 2 Inch Proportional Valve 15Nm Drive ISO5211 for 11*11mm Stem Metal

DN40 Electric Control Valve 4-20mA or 0-10V Control, 2 Inch Proportional Valve 15Nm Drive ISO5211 for 11*11mm Stem Metal

DN40 Electric Control Valve 4-20mA or 0-10V Control, 2 Inch Proportional Valve 15Nm Drive ISO5211 for 11*11mm Stem Metal Reference unit price USD 200.27.

DN40 Electric Control Valve 4-20mA or 0-10V Control, 2 Inch Proportional Valve 15Nm Drive ISO5211 for 11*11mm Stem Metal Reference unit price USD 200.27. White background product image, published as provided. - Port size: DN40 - Coil / supply voltage: 10V

Water / air / process media

Precio de referencia

$140.19USD / unidad

USD reference unit price from the current listing.

Galería del producto

Parámetros técnicos

ParámetroEspecificación
Port sizeDN40
Coil / supply voltage10V
EU LVD VoltageLow voltage: Below 50Vac or 75Vdc
NC or NONormally Closed
Actuator ModeWith Manual And Instruction
StructureBall
MediaWater
MaterialPlastic
Temperature of MediaNormal Temperature
PowerSolenoid
Standard or NonstandardStandard
PressureMedium Pressure
Model NumberTFM40-S2-B
Brand NameTsai Fan
Power SourceDC
Is Smart Deviceno
CertificationCE
Voltage supplyDC12-24V
Control signal0-5V, 0-10V, 4 to 20mA
StandardISO5211
Torque force15Nm
ON/OFF timeless than 12 seconds
Valve Size1-1/2 Inch (DN40)
Valve materialStainless 304

Características

  • Published USD reference unit price
  • Specification confirmation before ordering
  • OEM and ODM service available

Listado de origen: Ver la página original del producto

Imágenes detalladas

Estructura, conexión, bobina y detalles de instalación de Electroválvula DN40 Electric Control Valve 4-20mA or 0-10V Control, 2 Inch Proportional Valve 15Nm Drive ISO5211 for 11*11mm Stem Metal Otras válvulas.

Detalle 1 de Electroválvula DN40 Electric Control Valve 4-20mA or 0-10V Control, 2 Inch Proportional Valve 15Nm Drive ISO5211 for 11*11mm Stem Metal Otras válvulas

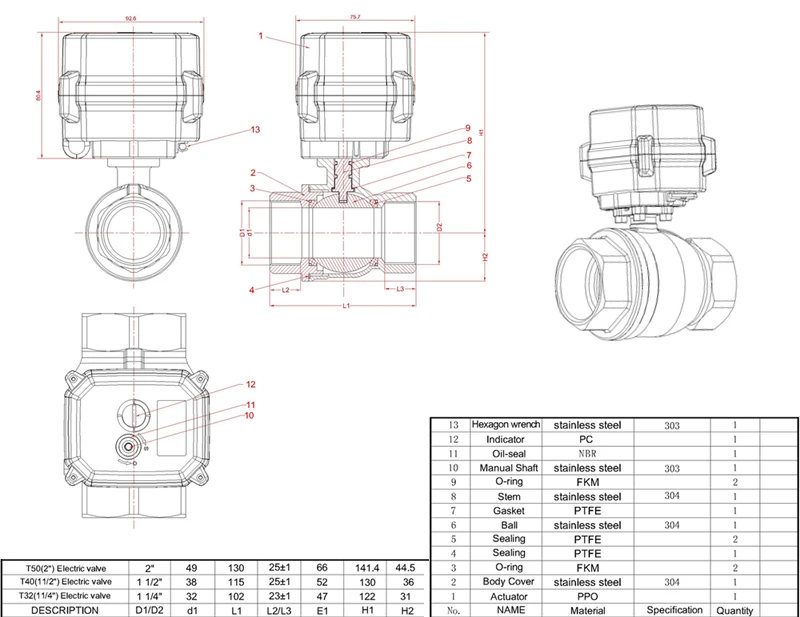

Detalle 2 de Electroválvula DN40 Electric Control Valve 4-20mA or 0-10V Control, 2 Inch Proportional Valve 15Nm Drive ISO5211 for 11*11mm Stem Metal Otras válvulas

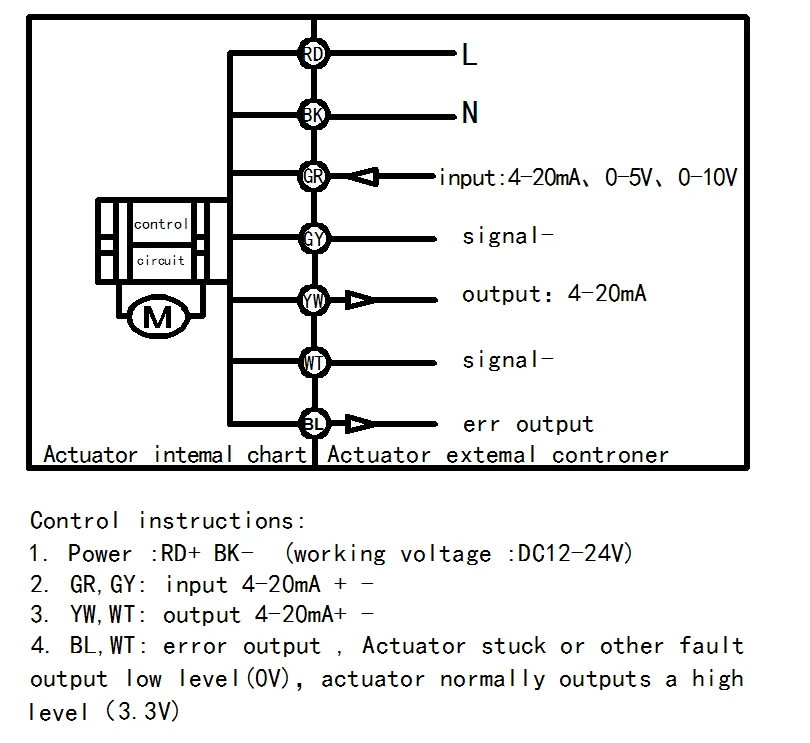

Detalle 3 de Electroválvula DN40 Electric Control Valve 4-20mA or 0-10V Control, 2 Inch Proportional Valve 15Nm Drive ISO5211 for 11*11mm Stem Metal Otras válvulas
Detalle 4 de Electroválvula DN40 Electric Control Valve 4-20mA or 0-10V Control, 2 Inch Proportional Valve 15Nm Drive ISO5211 for 11*11mm Stem Metal Otras válvulas
