3V120-06 3V120-M5 Pneumatic Air Solenoid Valve 3/2 Way AC220V DC24V DC12V AC110V AC24V Normally Closed Valves
3V120-06 3V120-M5 Pneumatic Air Solenoid Valve 3/2 Way AC220V DC24V DC12V AC110V AC24V Normally Closed Valves
Air
Precio de referencia
$17.84USD / unidad
Reference unit price, USD. Batch price confirmed at quotation.

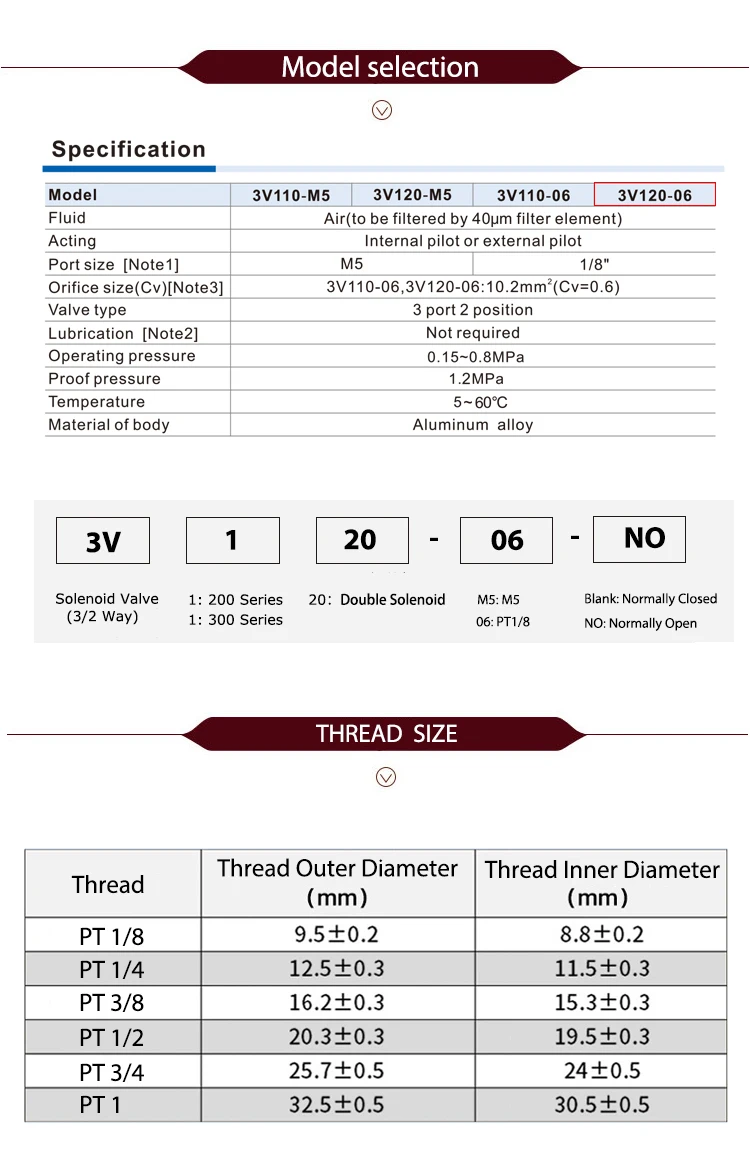

| Parámetro | Especificación |
|---|---|
| Category | Pneumatic Solenoid Valve |
| Media | Air |
| Voltage | AC24V, AC110V, AC220V, DC12V, DC24V |
| Reference Price | USD 22.29 |
| Listing Status | Quoted on request |
| Type | Valves |
| Model Number | 3V120-06 |

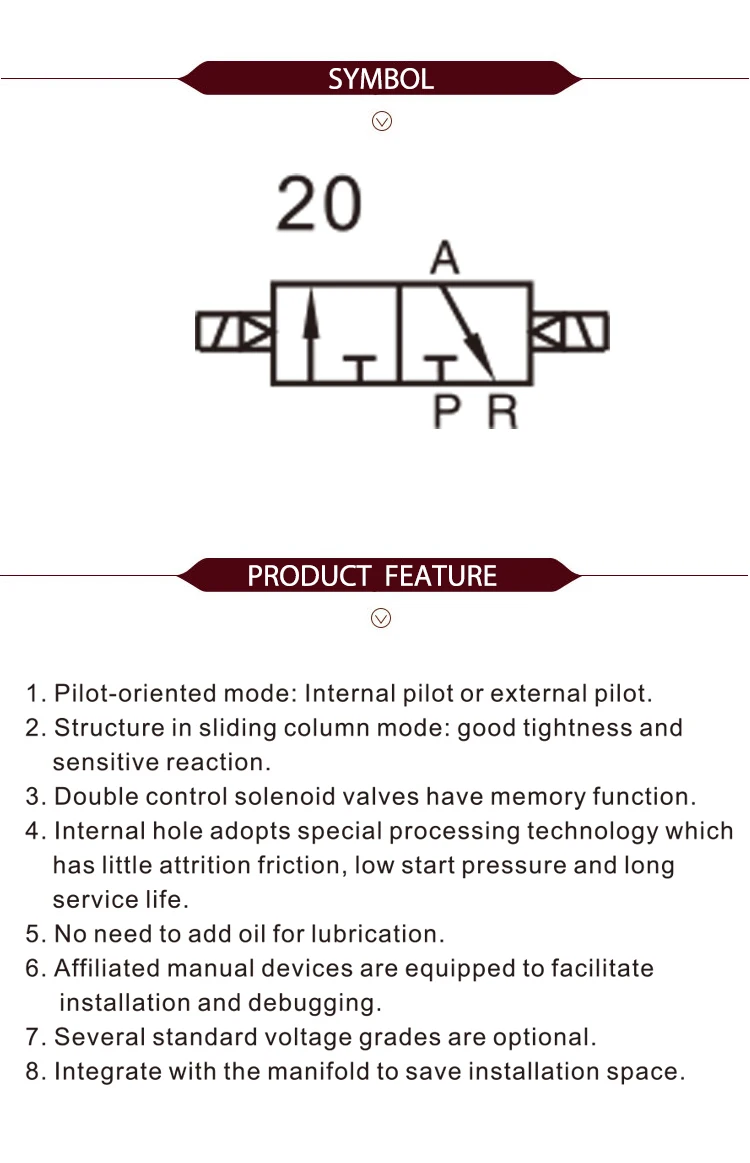

| Position and way NO. | 3 port 2 position |
| Port size | Air inlet=Air outlet=PT1/8" |
| Operating pressure | 1.5~8kgf/cm2 |
| Max.proof pressure | 10.5kgf/cm2 |
| Temp.range | 5~60 C |
| Coil insulation &protection grade | IP65(DIN 40050) |
| Highest action frequency | 5 cycles/per.sec. |
| Initial state | Normally closed |
Listado de origen: Ver la página original del producto

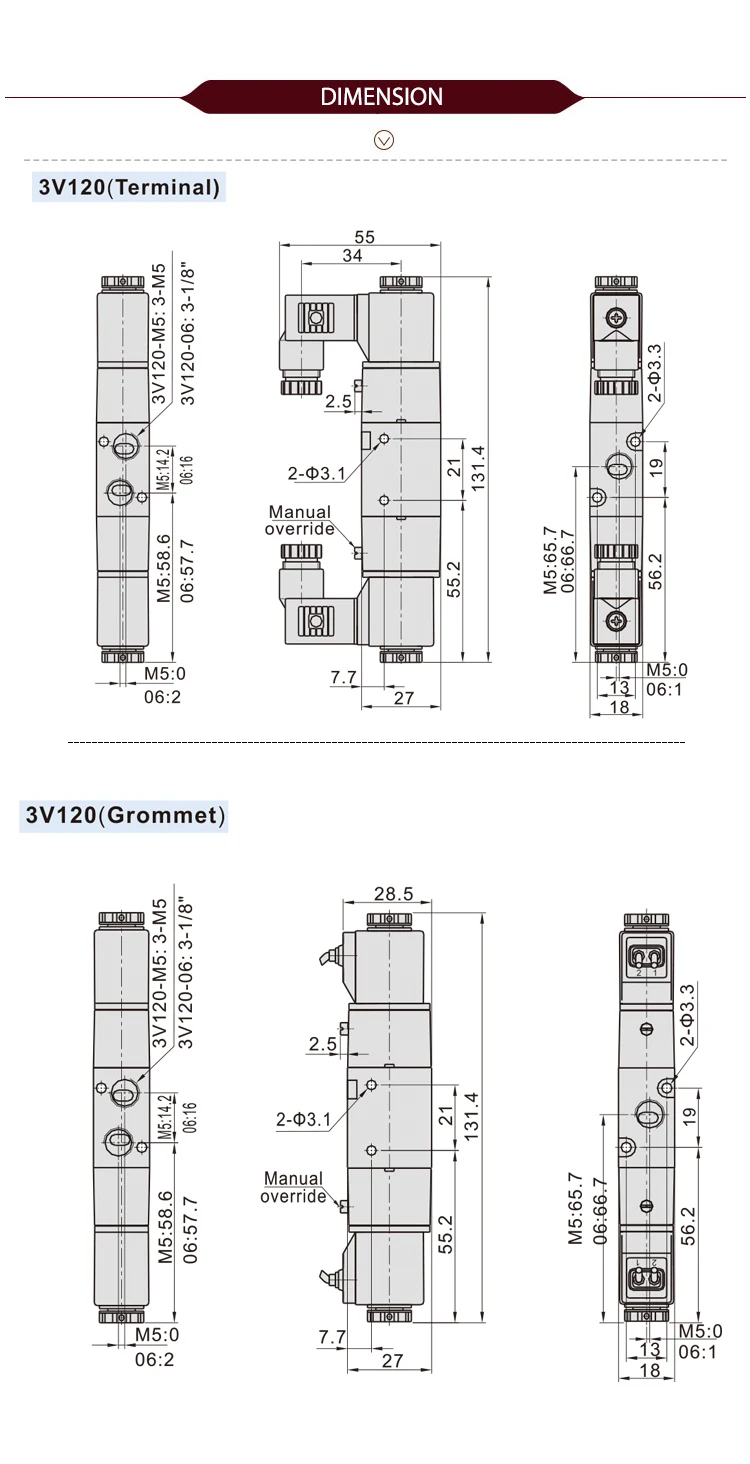

Estructura, conexión, bobina y detalles de instalación de Electroválvula 3V120-06 Neumática.
