4V210-08/4V310-10/4V410-15 Solenoid Valve 2 Position 5 Port Pneumatic Air Electromagnetic Valves DC12V DC24V AC110V AC22

4V210-08/4V310-10/4V410-15 Solenoid Valve 2 Position 5 Port Pneumatic Air Electromagnetic Valves DC12V DC24V AC110V AC22

4V210-08/4V310-10/4V410-15 Solenoid Valve 2 Position 5 Port Pneumatic Air Electromagnetic Valves DC12V DC24V AC110V AC22

4V210-08/4V310-10/4V410-15 Solenoid Valve 2 Position 5 Port Pneumatic Air Electromagnetic Valves DC12V DC24V AC110V AC22

Air

4V210-08/4V310-10/4V410-15

Precio de referencia

$3.83USD / unidad

Reference unit price, USD. Batch price confirmed at quotation.

Galería del producto

Parámetros técnicos

ParámetroEspecificación
CategoryPneumatic Solenoid Valve
MediaAir
VoltageAC110V, DC12V, DC24V
Reference PriceUSD 14.82
Listing StatusQuoted on request
TypeValves
Model Number4V210-08 4V310-10 4V410-15
Position and way NO.5 port 2 position
Operating pressure1.5~8kgf/cm2
Max.proof pressure10.5kgf/cm2
Temp.range5~60 C
Coil insulation &protection gradeIP65(DIN 40050)
Highest action frequency5 cycles/per.sec.
Initial stateNormally closed

Listado de origen: Ver la página original del producto

Imágenes detalladas

Estructura, conexión, bobina y detalles de instalación de Electroválvula 4V210-08/4V310-10/4V410-15 Neumática.

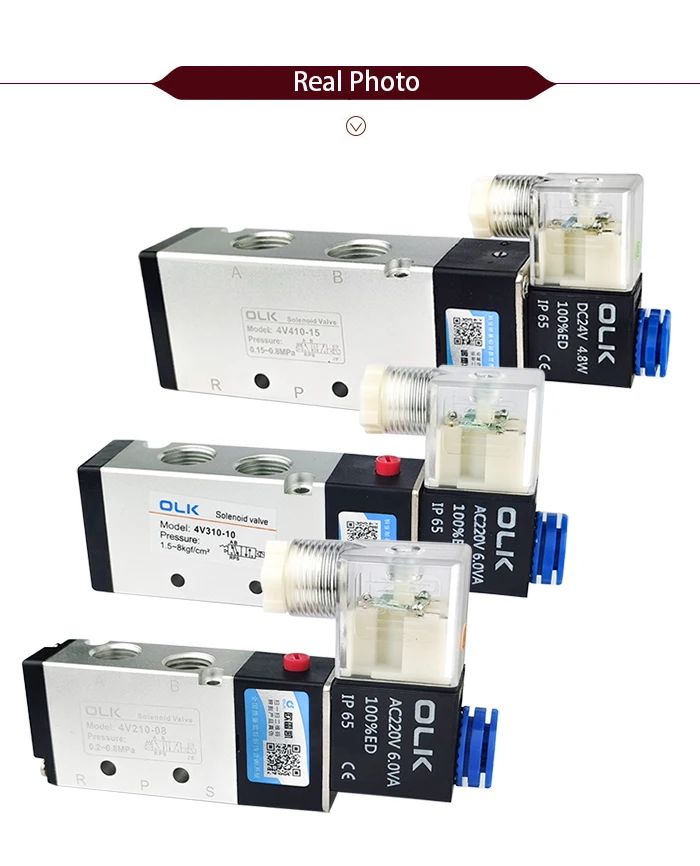

Detalle 1 de Electroválvula 4V210-08/4V310-10/4V410-15 Neumática

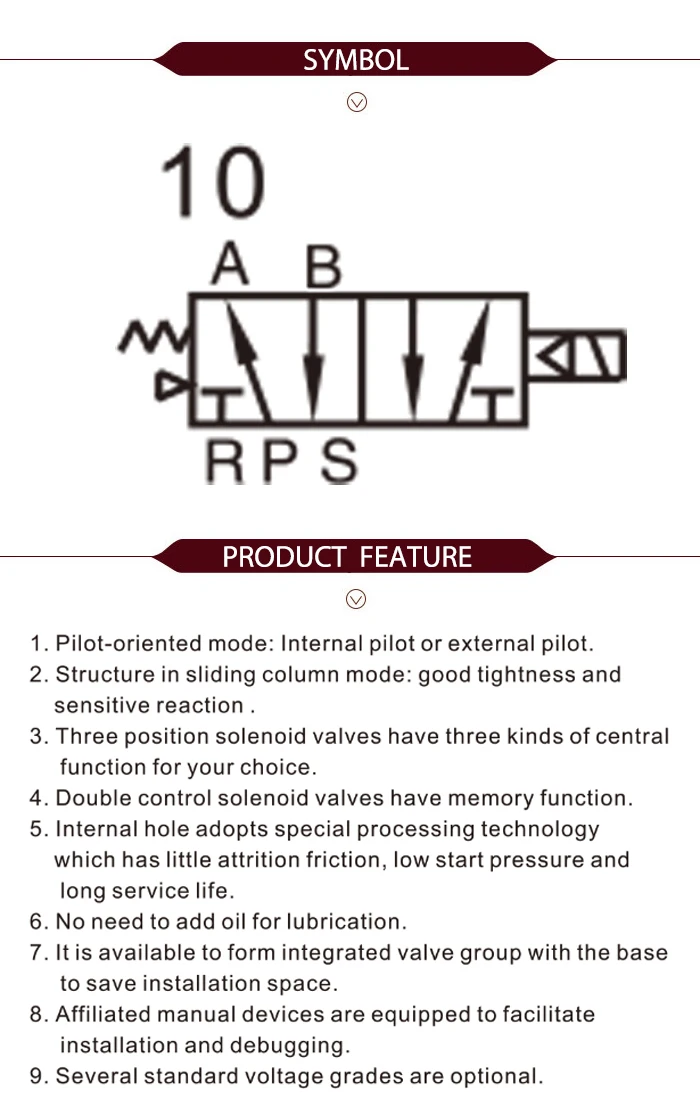

Detalle 2 de Electroválvula 4V210-08/4V310-10/4V410-15 Neumática

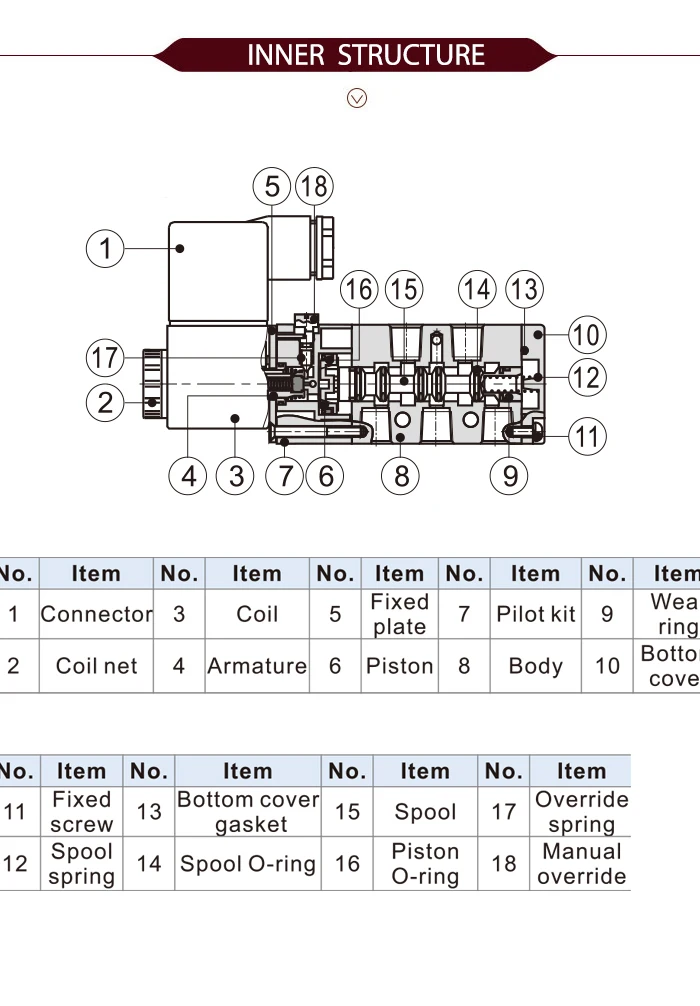

Detalle 3 de Electroválvula 4V210-08/4V310-10/4V410-15 Neumática

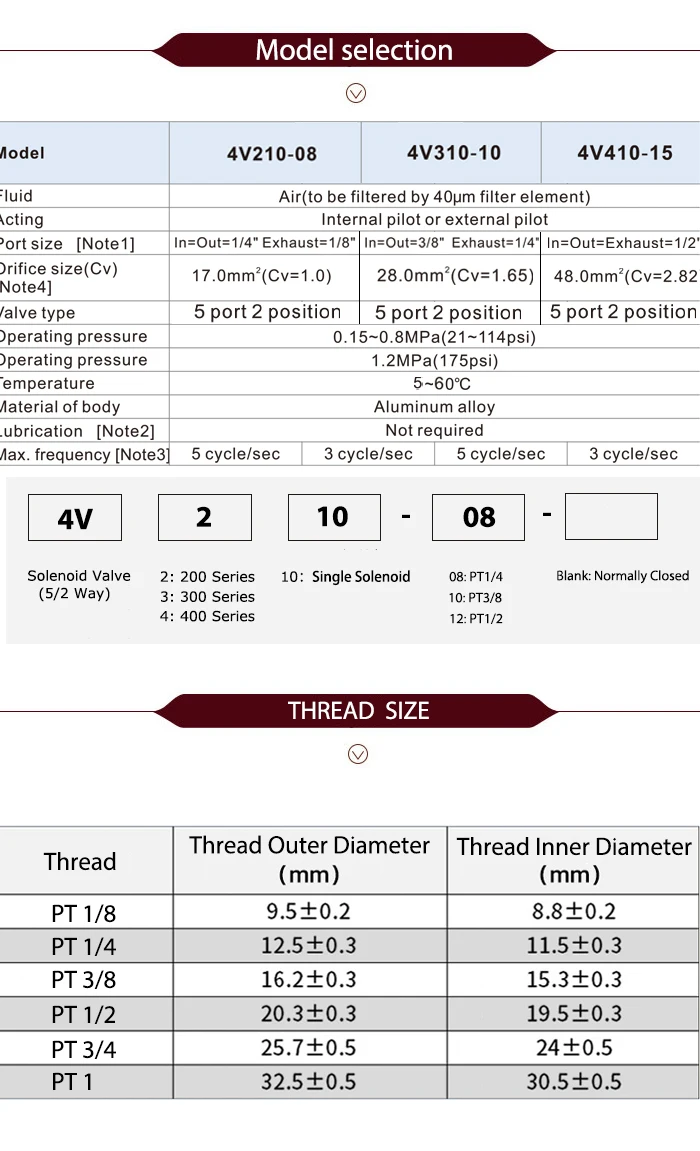

Detalle 4 de Electroválvula 4V210-08/4V310-10/4V410-15 Neumática
