4V120-06/4V220-08/4V320-10/4V420-15 Solenoid Valve 2 Position 5 Port Pneumatic Air Valves DC12V DC24V AC110V AC220V Doub

Name: 4V120-06/4V220-08/4V320-10/4V420-15 Solenoid Valve 2 Position 5 Port Pneumatic Air Valves DC12V DC24V AC110V AC220V Doub
Brand: GO GO AUTOMATIC COMPANY LIMITED
Price: 1.09 USD
Availability: InStock

4V120-06/4V220-08/4V320-10/4V420-15 Solenoid Valve 2 Position 5 Port Pneumatic Air Valves DC12V DC24V AC110V AC220V Doub Reference unit price USD 10.91.

4V120-06/4V220-08/4V320-10/4V420-15 Solenoid Valve 2 Position 5 Port Pneumatic Air Valves DC12V DC24V AC110V AC220V Doub Reference unit price USD 10.91. White background product image, published as provided. - Coil / supply voltage: 4V, DC12V, DC24V, AC110V, AC220V

Compressed air

Richtpreis

$1.09USD / Stück

USD reference unit price from the current listing.

Produktgalerie

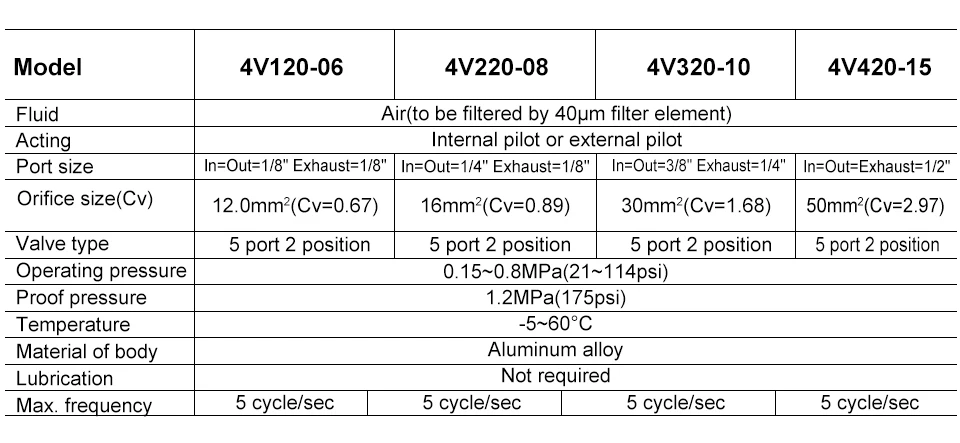

Technische Daten

Parameter	Wert
Coil / supply voltage	4V, DC12V, DC24V, AC110V, AC220V
Type	Valves
Model Number	4V120-06/4V220-08/4V320-10/4V420-15
Certification	CE
Brand Name	DUODA
Standard Voltage	DC24V, DC12V, AC220V, AC110V
Voltage Range	±10%
Protection Level	IP65(DIN40050)
Operation Mode	NO+NC(Internal pilot)

Merkmale

Published USD reference unit price
Specification confirmation before ordering
OEM and ODM service available

Ursprüngliches Angebot: Originale Produktseite öffnen

Detailbilder

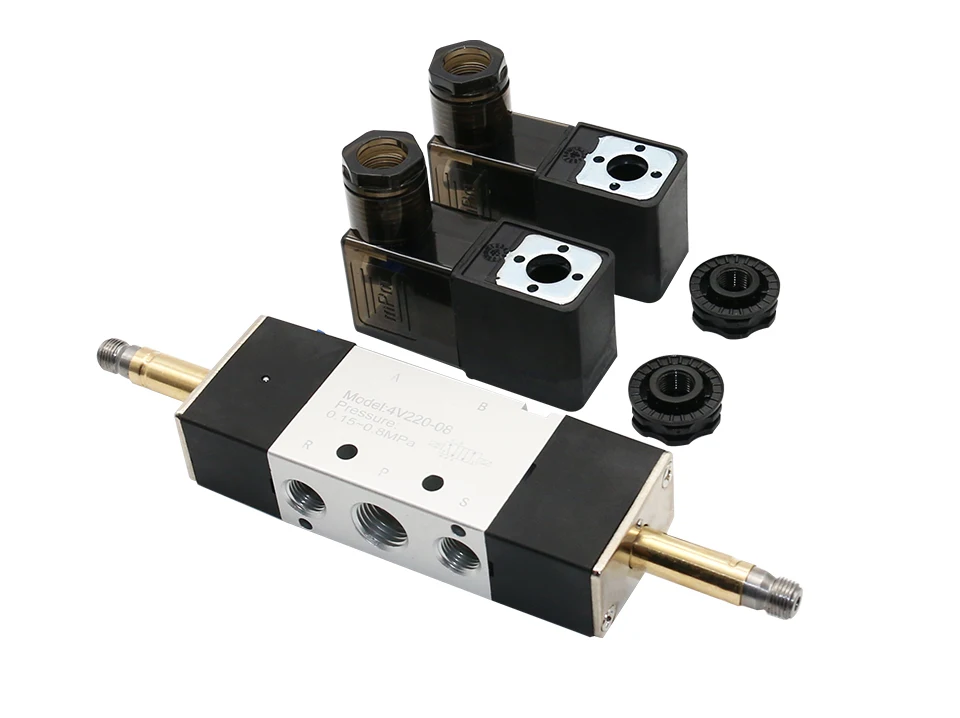

Aufbau, Anschluss, Spule und Montagehinweise für Magnetventil 4V120-06/4V220-08/4V320-10/4V420-15 Solenoid Valve 2 Position 5 Port Pneumatic Air Valves DC12V DC24V AC110V AC220V Doub Pneumatik.

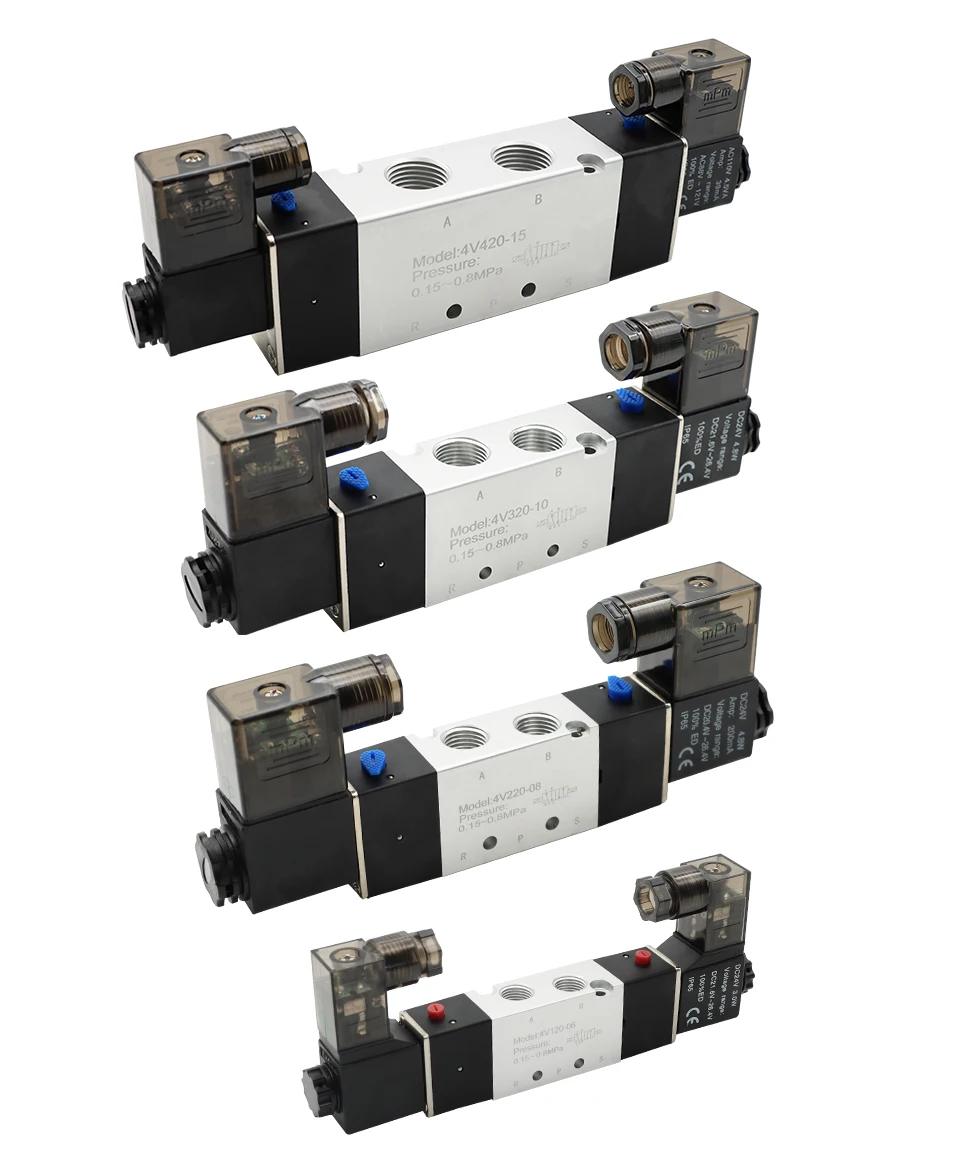

Magnetventil 4V120-06/4V220-08/4V320-10/4V420-15 Solenoid Valve 2 Position 5 Port Pneumatic Air Valves DC12V DC24V AC110V AC220V Doub Pneumatik — Detail 1
