DN15 DN20 DN25 DN50 Brass Motorized Ball Valve 220V 12V 24V 3-Wire 2-Control Electric Actuators with Manual Switch

Name: DN15 DN20 DN25 DN50 Brass Motorized Ball Valve 220V 12V 24V 3-Wire 2-Control Electric Actuators with Manual Switch
Brand: GO GO AUTOMATIC COMPANY LIMITED
Price: 36.34 USD
Availability: InStock

DN15 DN20 DN25 DN50 Brass Motorized Ball Valve 220V 12V 24V 3-Wire 2-Control Electric Actuators with Manual Switch Reference unit price USD 42.73.

DN15 DN20 DN25 DN50 Brass Motorized Ball Valve 220V 12V 24V 3-Wire 2-Control Electric Actuators with Manual Switch Reference unit price USD 42.73. White background product image, published as provided. - Port size: DN15 - Body material: Brass - Coil / supply voltage: 220V, 12V, 24V

Compressed air

Richtpreis

$36.34USD / Stück

USD reference unit price from the current listing.

Produktgalerie

Technische Daten

Parameter	Wert
Port size	DN15
Body material	Brass
Coil / supply voltage	220V, 12V, 24V
EU LVD Voltage	Low voltage: Below 50Vac or 75Vdc
NC or NO	Normally Closed
Actuator Mode	With Manual And Instruction
Structure	Ball
Media	Water
Material	Brass
Temperature of Media	Normal Temperature
Standard or Nonstandard	Standard
Pressure	Low Pressure
Power Source	Ac
Is Smart Device	no

Merkmale

Published USD reference unit price
Specification confirmation before ordering
OEM and ODM service available

Ursprüngliches Angebot: Originale Produktseite öffnen

Detailbilder

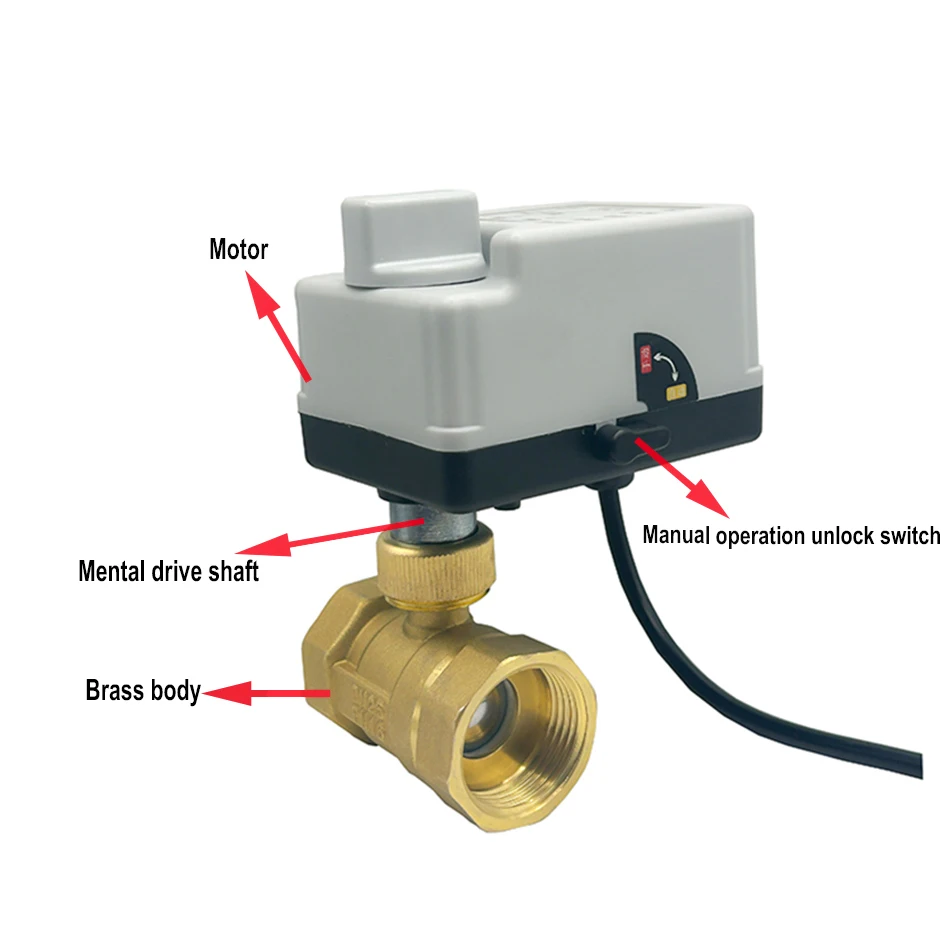

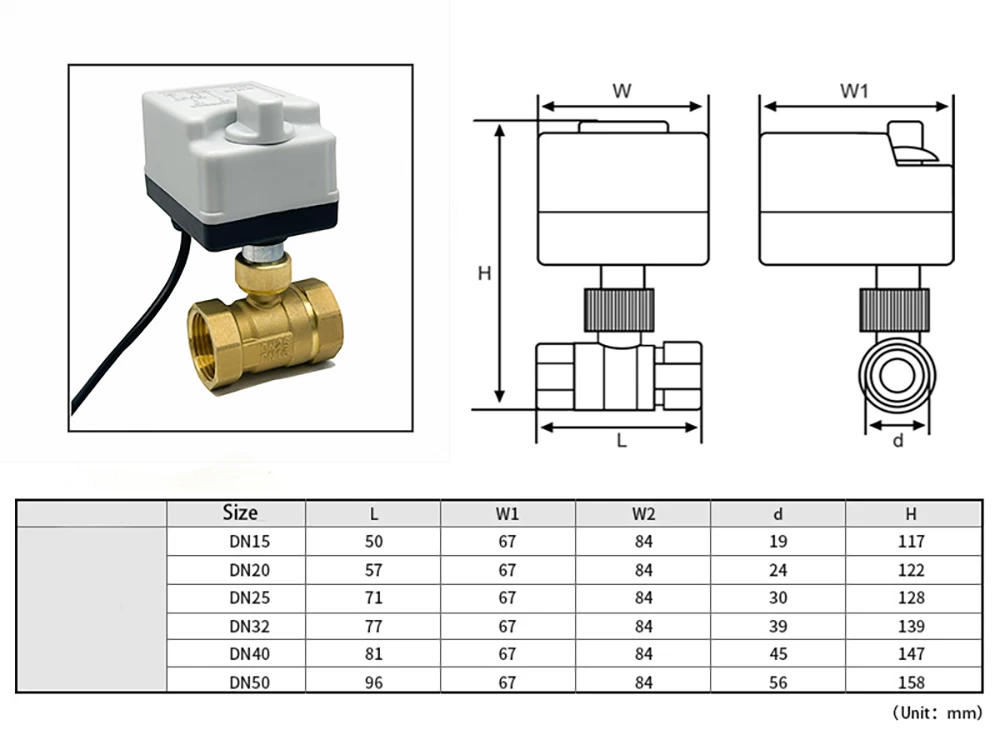

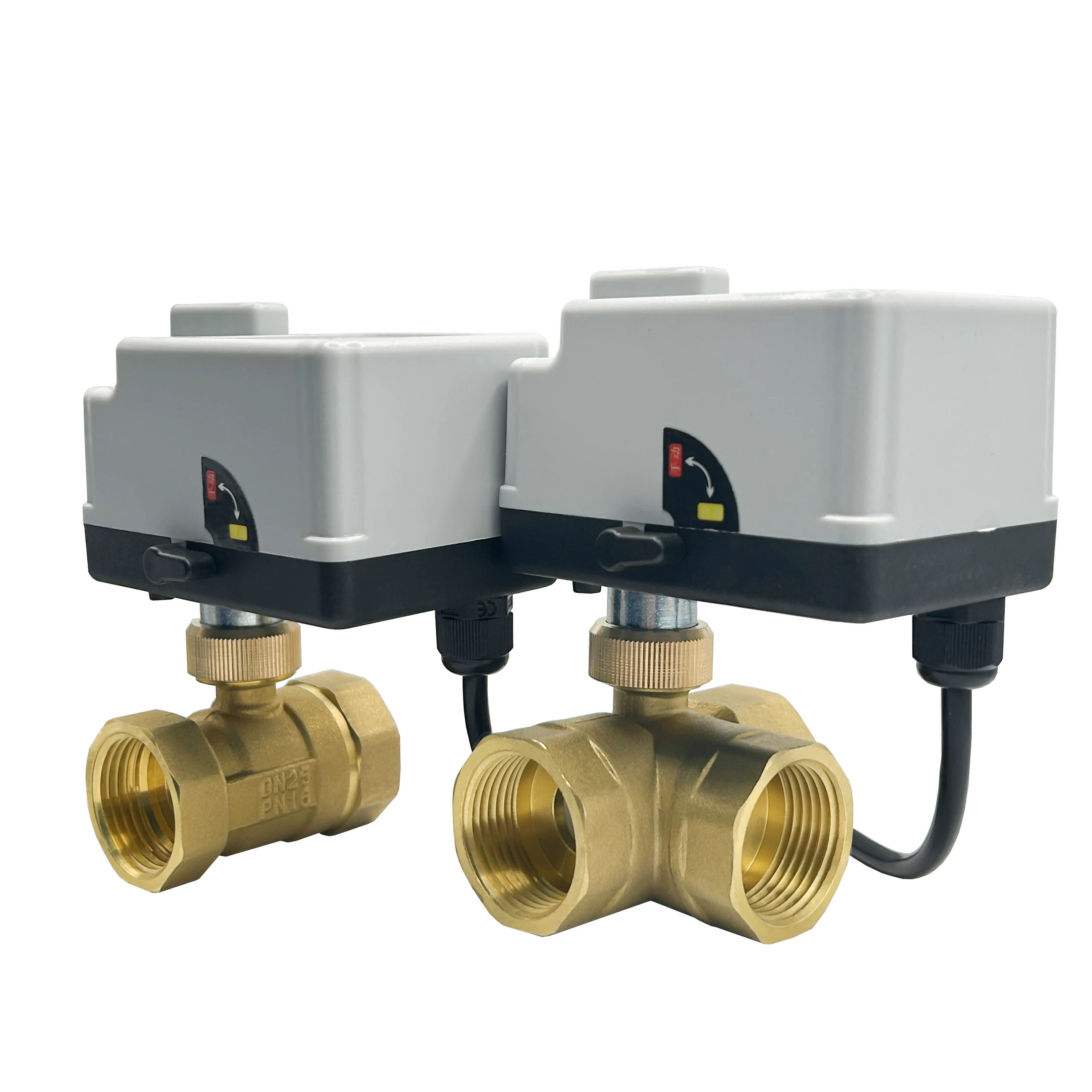

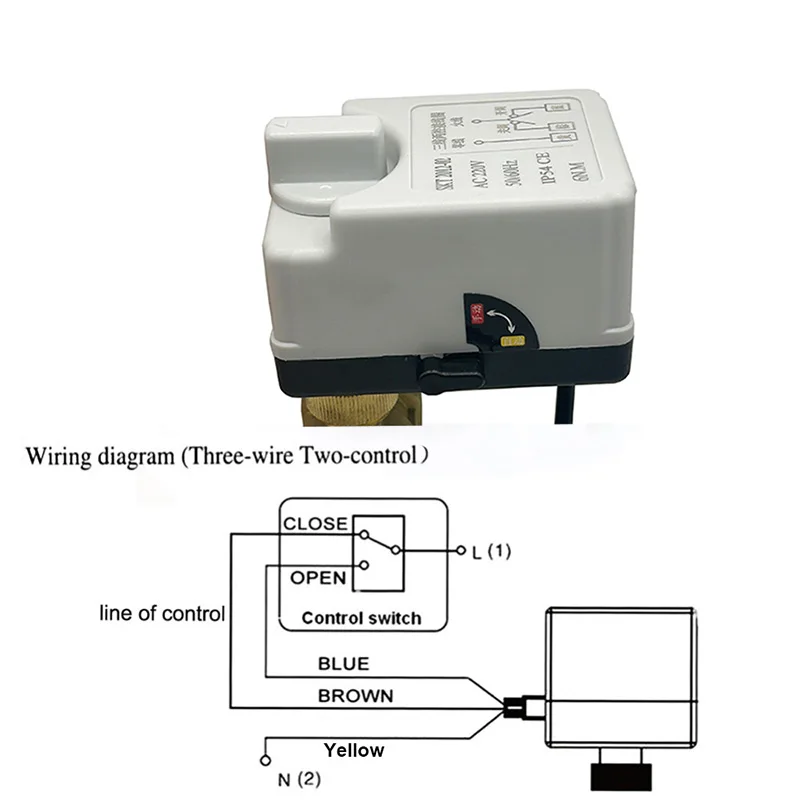

Aufbau, Anschluss, Spule und Montagehinweise für Magnetventil DN15 DN20 DN25 DN50 Brass Motorized Ball Valve 220V 12V 24V 3-Wire 2-Control Electric Actuators with Manual Switch Pneumatik.

Magnetventil DN15 DN20 DN25 DN50 Brass Motorized Ball Valve 220V 12V 24V 3-Wire 2-Control Electric Actuators with Manual Switch Pneumatik — Detail 1
