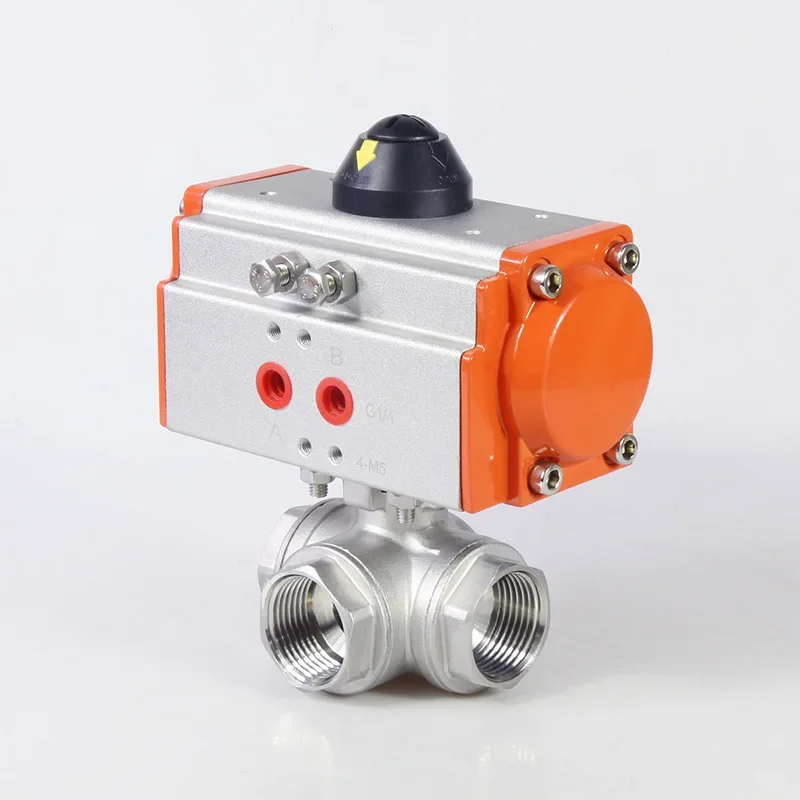

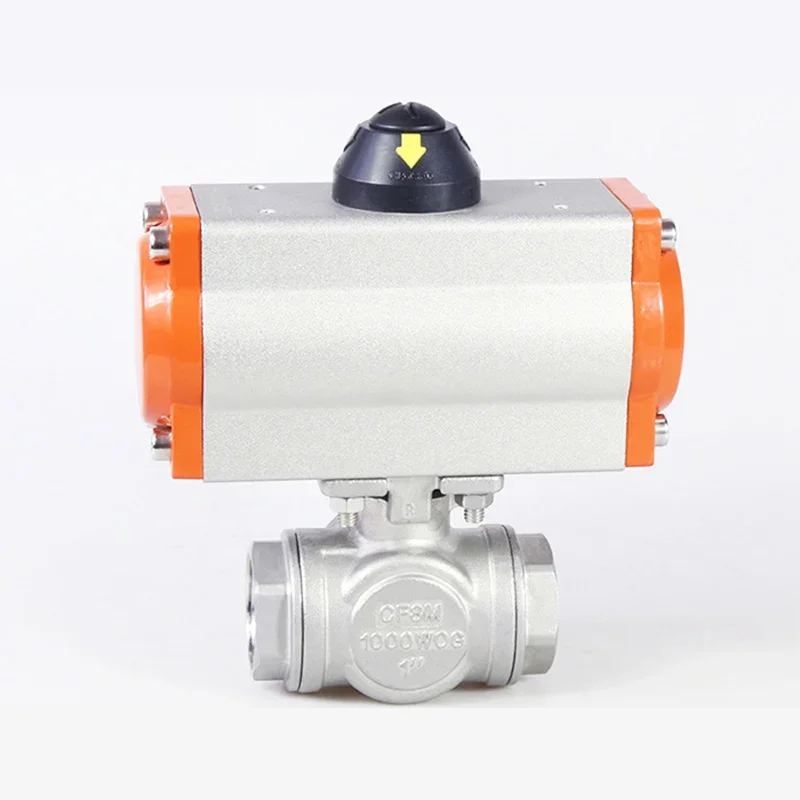

Pneumatic internal thread three-way ball valve T type L type cut-off reversing valve DN8 DN10 DN15 304 stainless steel wire port

Name: Pneumatic internal thread three-way ball valve T type L type cut-off reversing valve DN8 DN10 DN15 304 stainless steel wire port
Brand: GO GO AUTOMATIC COMPANY LIMITED
Price: 44.86 USD
Availability: InStock

Pneumatic internal thread three-way ball valve T type L type cut-off reversing valve DN8 DN10 DN15 304 stainless steel wire port Reference unit price USD 56.00.

Pneumatic internal thread three-way ball valve T type L type cut-off reversing valve DN8 DN10 DN15 304 stainless steel wire port Reference unit price USD 56.00. White background product image, published as provided. - Port size: DN8 - Body material: 304

Compressed air

Richtpreis

$44.86USD / Stück

USD reference unit price from the current listing.

Produktgalerie

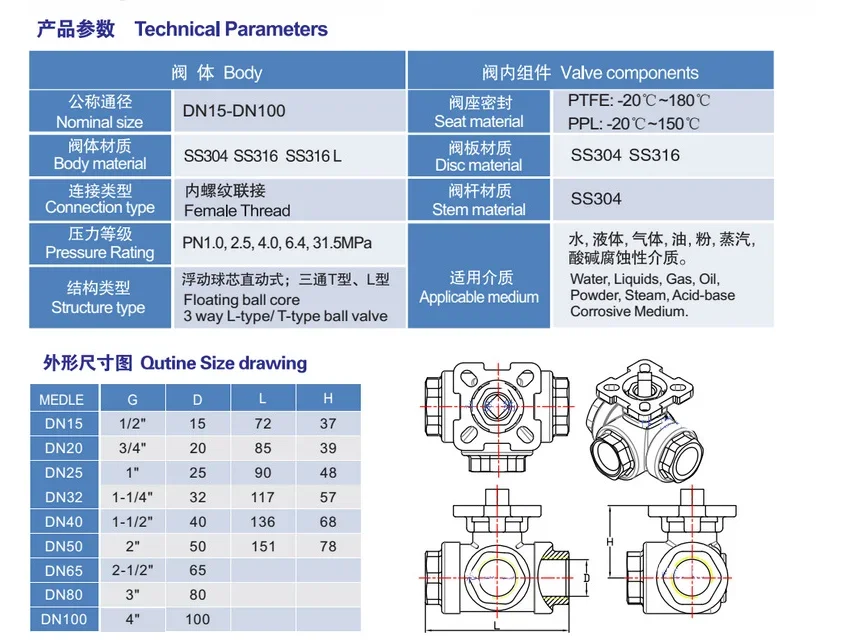

Technische Daten

Parameter	Wert
Port size	DN8
Body material	304
NC or NO	Normally Closed
Actuator Mode	With Instruction
Structure	Ball
Media	Various corrosive chemical media
Material	Stainless Steel
Temperature of Media	Medium Temperature
Power	Pneumatic
Standard or Nonstandard	Standard
Pressure	Medium Pressure
Model Number	DN8, DN10, DN15, DN20
Power Source	Ac
Certification	CE
Connection form	female

Merkmale

Published USD reference unit price
Specification confirmation before ordering
OEM and ODM service available

Ursprüngliches Angebot: Originale Produktseite öffnen

Detailbilder

Aufbau, Anschluss, Spule und Montagehinweise für Magnetventil Pneumatic internal thread three-way ball valve T type L type cut-off reversing valve DN8 DN10 DN15 304 stainless steel wire port Pneumatik.

Magnetventil Pneumatic internal thread three-way ball valve T type L type cut-off reversing valve DN8 DN10 DN15 304 stainless steel wire port Pneumatik — Detail 1
