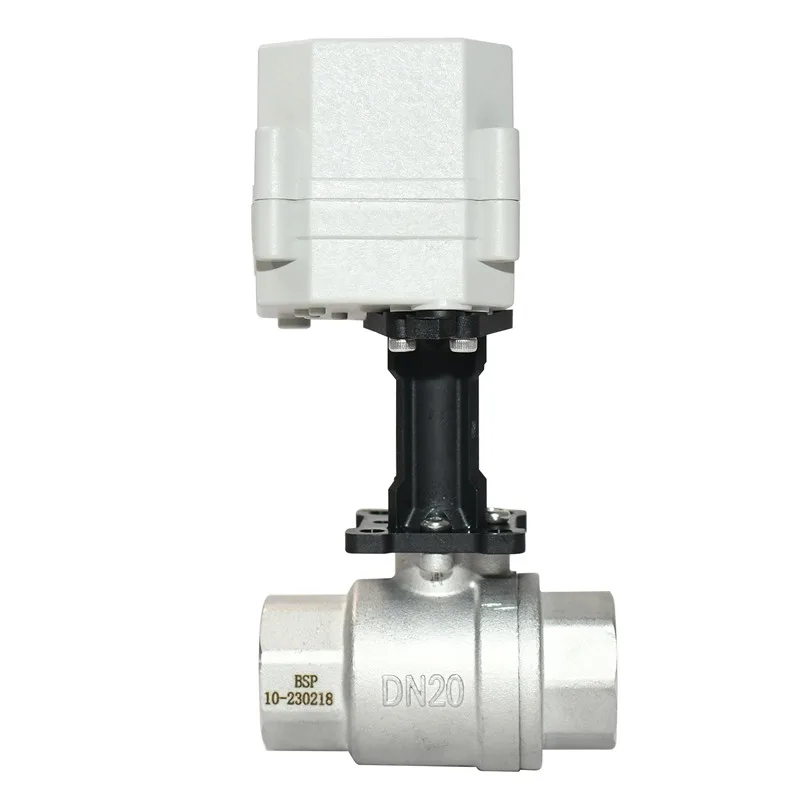

1/4''-1'' 2-Way DC9-24V Stainless Steel Proportional Modulating Valve With High Bracket For High Temperature Liquid

Name: 1/4''-1'' 2-Way DC9-24V Stainless Steel Proportional Modulating Valve With High Bracket For High Temperature Liquid
Brand: GO GO AUTOMATIC COMPANY LIMITED
Price: 89.28 USD
Availability: InStock

1/4''-1'' 2-Way DC9-24V Stainless Steel Proportional Modulating Valve With High Bracket For High Temperature Liquid Reference unit price USD 89.28.

1/4''-1'' 2-Way DC9-24V Stainless Steel Proportional Modulating Valve With High Bracket For High Temperature Liquid Reference unit price USD 89.28. White background product image, published as provided. - Coil / supply voltage: 24V - Body material: Stainless Steel

Compressed air

Richtpreis

$89.28USD / Stück

USD reference unit price from the current listing.

Produktgalerie

Technische Daten

Parameter	Wert
Coil / supply voltage	24V
Body material	Stainless Steel
Actuator Mode	With Instruction
Structure	Ball
Port Size	DN8-DN25
Media	Water
Material	Stainless Steel
Temperature of Media	-20-140℃
Power	DC9-24V
Standard or Nonstandard	Standard
Pressure	Max.1.0MPa
Power Source	DC
Certification	CE

Merkmale

Published USD reference unit price
Specification confirmation before ordering
OEM and ODM service available

Ursprüngliches Angebot: Originale Produktseite öffnen

Detailbilder

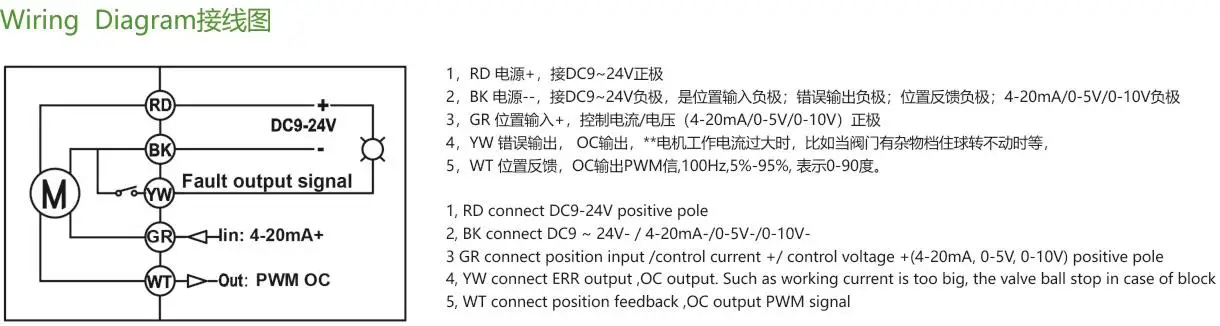

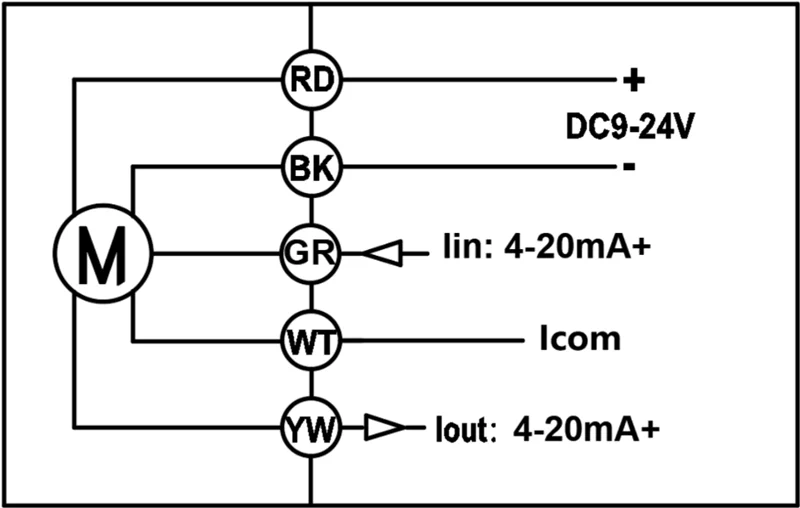

Aufbau, Anschluss, Spule und Montagehinweise für Magnetventil 1/4''-1'' 2-Way DC9-24V Stainless Steel Proportional Modulating Valve With High Bracket For High Temperature Liquid Pneumatik.

Magnetventil 1/4''-1'' 2-Way DC9-24V Stainless Steel Proportional Modulating Valve With High Bracket For High Temperature Liquid Pneumatik — Detail 1
