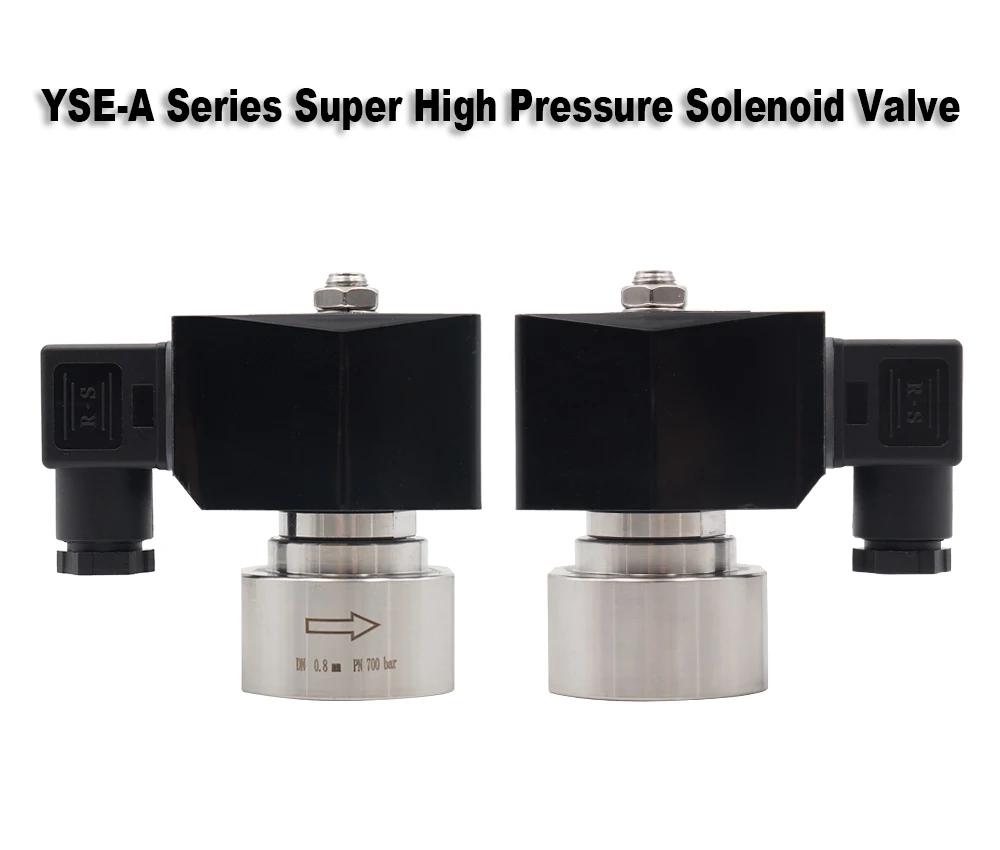

304 Stainless Steel High Pressure Car Wash Solenoid Valve 0~700 Bar(Details See Specification Table) G NPT 1/4/
304 Stainless Steel High Pressure Car Wash Solenoid Valve 0~700 Bar(Details See Specification Table) G NPT 1/4/
Water
Richtpreis
$195.00USD / Stück
Reference unit price, USD. Batch price confirmed at quotation.

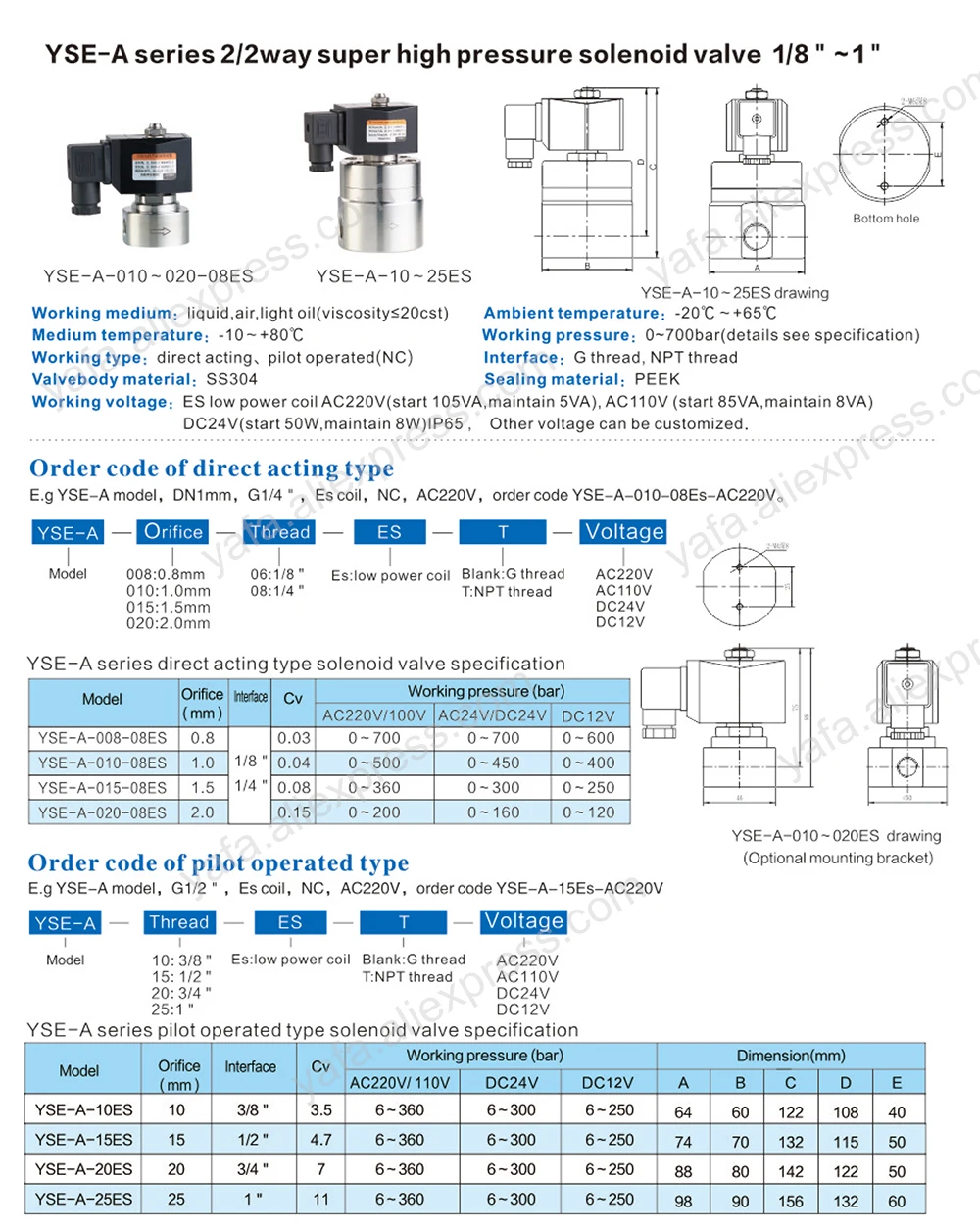

| Parameter | Wert |
|---|---|
| Category | Water Solenoid Valve |
| Media | Water |
| Voltage | Not specified |
| Reference Price | USD 195.00 |
| Listing Status | Quoted on request |
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |

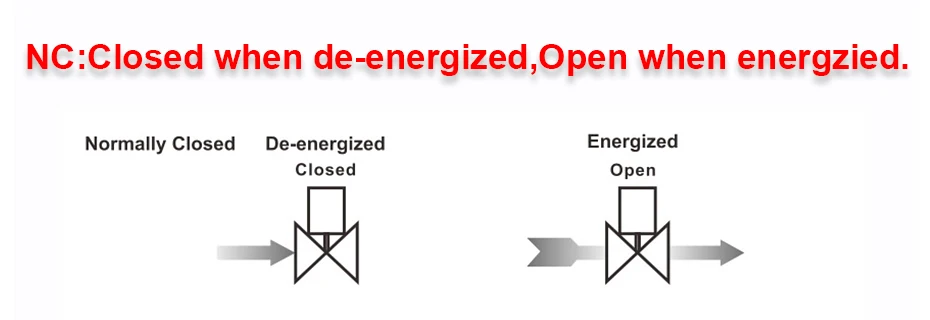

| NC or NO | Normally Closed |
| Actuator Mode | Without Manual And Instruction |
| Structure | Diaphragm |
| Port Size | G or NPT 1/4" |
| Material | Stainless Steel |
| Temperature of Media | Medium Temperature |
| Power | Solenoid |
| Standard or Nonstandard | Standard |
| Pressure | High Pressure |
| Model Number | YSE-A series |
| Power Source | Ac |
| Is Smart Device | no |
| Certification | CE |
| Working Medium | Liquid,Air,Light oil(viscosity≤20cst) |
| Ambient Temperature | -20℃~+65℃ |
| Medium Temperature | -10℃~+80℃ |
| Working Pressure | 0~700bar(Details See Specification Table) |
| Working Type | Direct Acting |
