3V410-15-NC 3V410-15-NC 3/2 way Pneumatic Solenoid Valve AC220V DC24V DC12V AC110V AC24V Normally Closed Open valves

3V410-15-NC 3V410-15-NC 3/2 way Pneumatic Solenoid Valve AC220V DC24V DC12V AC110V AC24V Normally Closed Open valves

3V410-15-NC 3V410-15-NC 3/2 way Pneumatic Solenoid Valve AC220V DC24V DC12V AC110V AC24V Normally Closed Open valves

3V410-15-NC 3V410-15-NC 3/2 way Pneumatic Solenoid Valve AC220V DC24V DC12V AC110V AC24V Normally Closed Open valves

Air / Water

3V410-15-NC

Richtpreis

$29.81USD / Stück

Reference unit price, USD. Batch price confirmed at quotation.

Produktgalerie

Technische Daten

ParameterWert
CategoryPneumatic Solenoid Valve
MediaAir / Water
VoltageAC24V, AC110V, AC220V, DC12V, DC24V
Reference PriceUSD 35.91
Listing StatusQuoted on request
TypeValves
Model Number3V410-15-NC 3V410-15-CO
Position and way No.Two-position Three-way
Working Patten40 Micron Fitered Air
Working Pressure0.2-0.8Mpa
Max. Pressure ressostance1.2Mpa
Operating Temperature5-50 C
Voltsge Range-15% -- +10%
Consume powerAC: 6.0VA DC:4.8W
Highest Acton Frequncy5Cycle/Sec
Shor test Excition Time0.05 Second
Initial stateNormally open

Ursprüngliches Angebot: Originale Produktseite öffnen

Detailbilder

Aufbau, Anschluss, Spule und Montagehinweise für Magnetventil 3V410-15-NC Pneumatik.

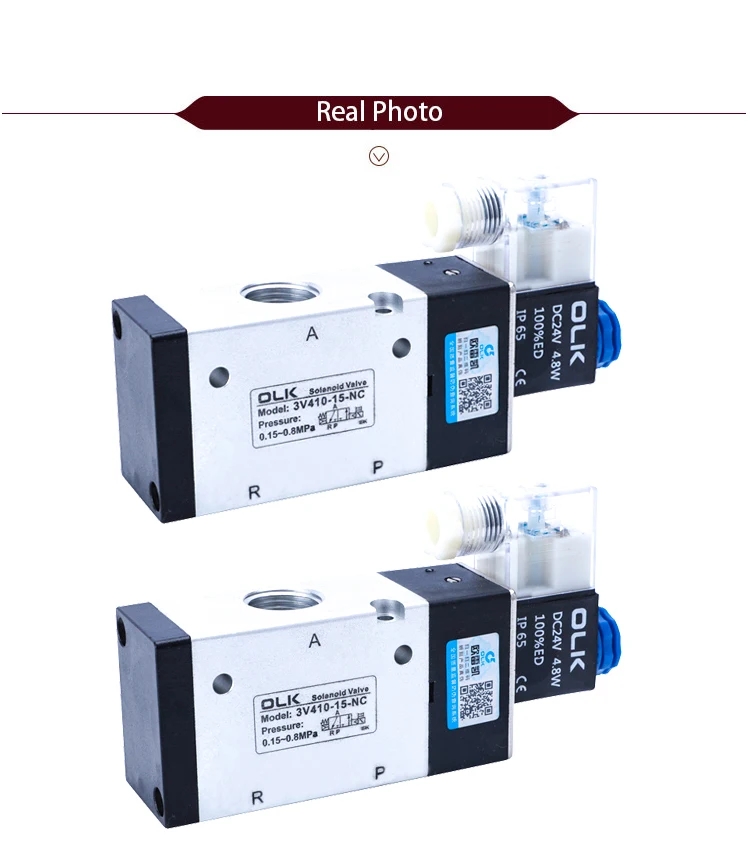

Magnetventil 3V410-15-NC Pneumatik — Detail 1

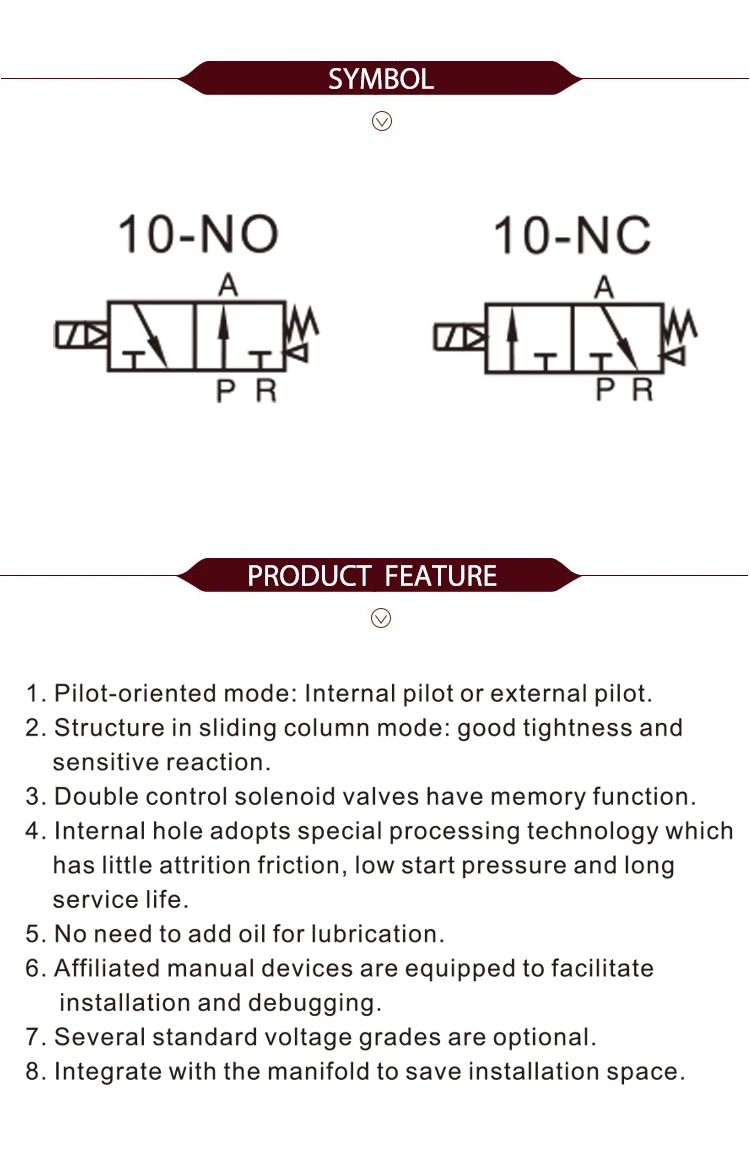

Magnetventil 3V410-15-NC Pneumatik — Detail 2

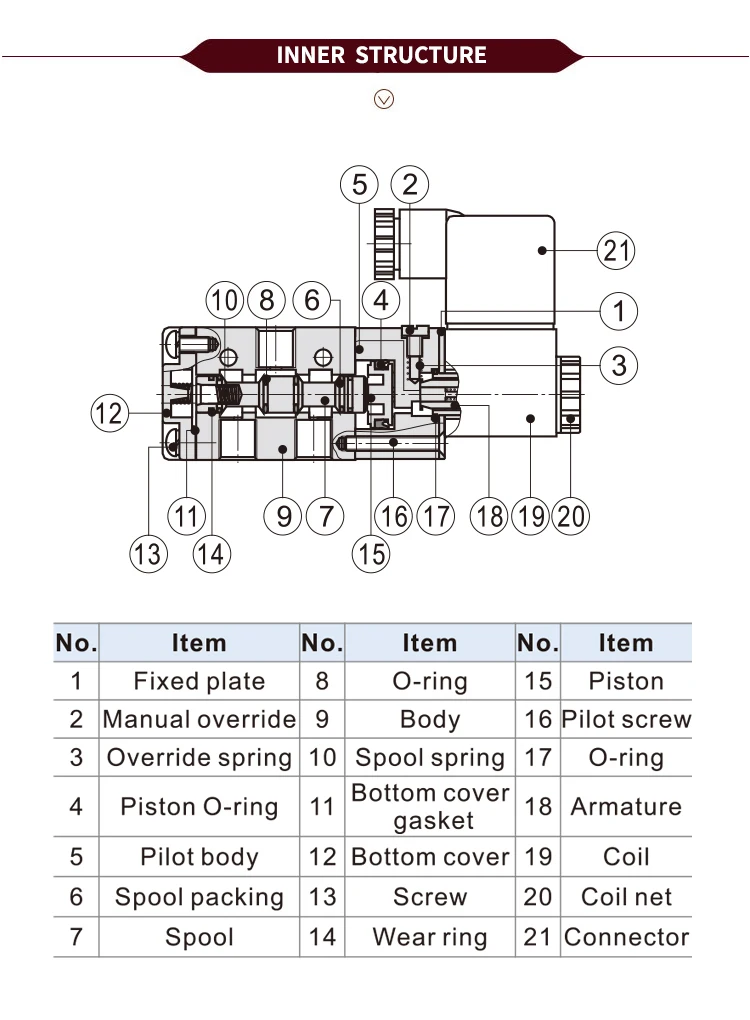

Magnetventil 3V410-15-NC Pneumatik — Detail 3

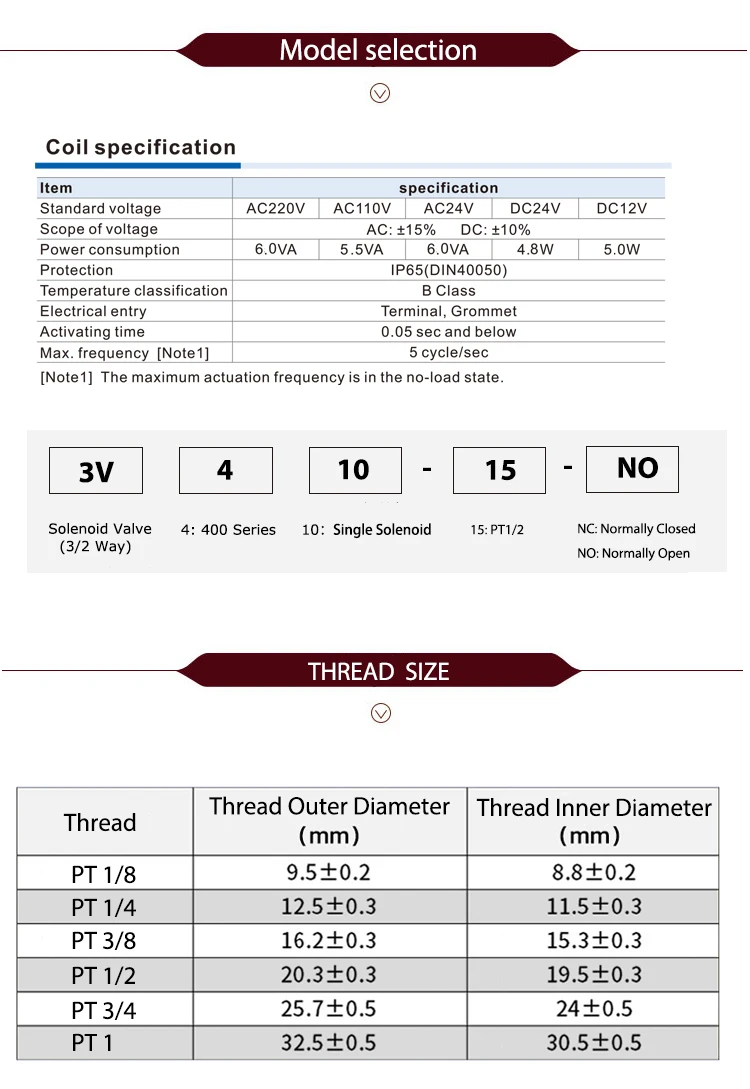

Magnetventil 3V410-15-NC Pneumatik — Detail 4
