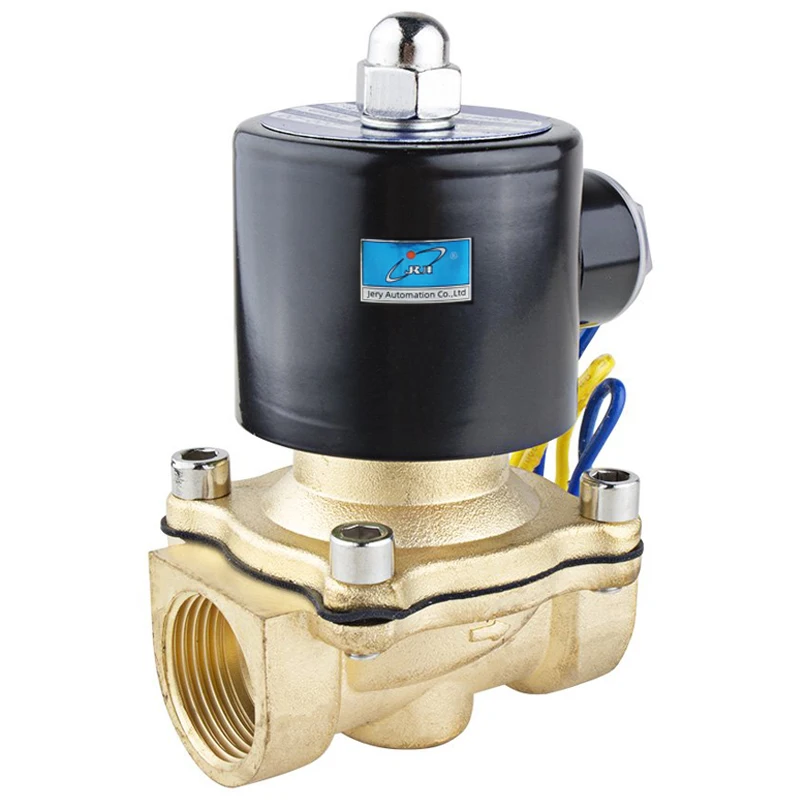

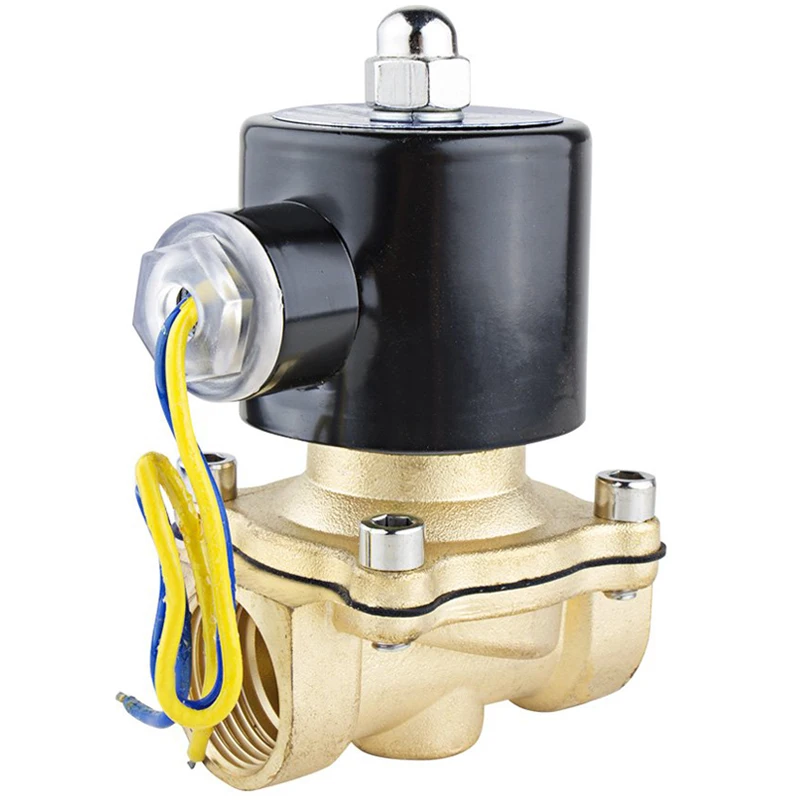

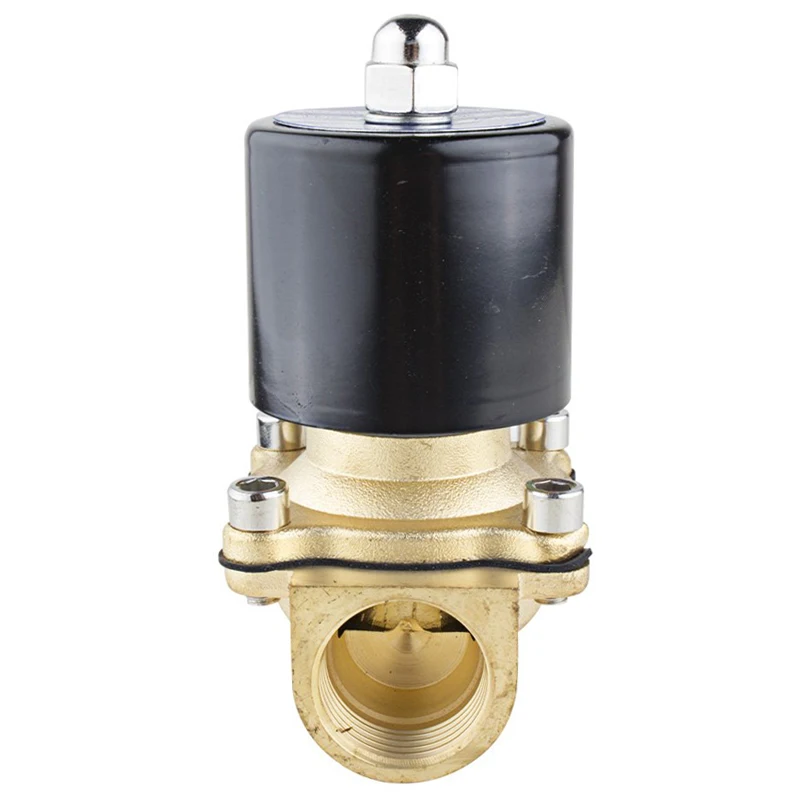

2/2 Way 2W200-20 G3/4 Electric Brass Direct Acting Water Solenoid Valve 24v Reference unit price USD 30.21.
2/2 Way 2W200-20 G3/4 Electric Brass Direct Acting Water Solenoid Valve 24v Reference unit price USD 30.21. White background product image, published as provided. - Body material: Brass
Compressed air
السعر الإرشادي
$30.23دولار / قطعة
USD reference unit price from the current listing.
| البند | القيمة |
|---|---|
| Body material | Brass |
| application | General |
| Operating Temp. Range | -5~ 80C ( The temperature can reach -5~ 150C ifcha |
| Operational Pressure Range | Air:0-0.7Mpa;Water:0-0.5Mpa;Oil:0-0.5Mpa;Gas:0-0.7 |
| port size | 3/4 |
| power | Solenoid |
| structure | Control |
| model number | 2W200-20 |
| customized support | OBM, ODM, OEM |
| media | Water |
| temperature of media | Normal Temperature |
| Voltage | AC 110 V, AC 220 V, Dc 12V, Dc 24V |
| Product name | 1/2" Way 12V AC220V normal closed Valves |
| Material | Brass |
| Color | Customer Require |
| Certificate | CE ROHS ISO9001 |
| Max. Pressure Resistance | 1.05MPa |
| Orifice | 20mm |
| Seal Material | NBR |
القائمة الأصلية: فتح صفحة المنتج الأصلية
البنية والوصلة والملف وملاحظات التركيب لـ صمام لولبي 2/2 Way 2W200-20 G3/4 Electric Brass Direct Acting Water Solenoid Valve 24v الهواء المضغوط.
