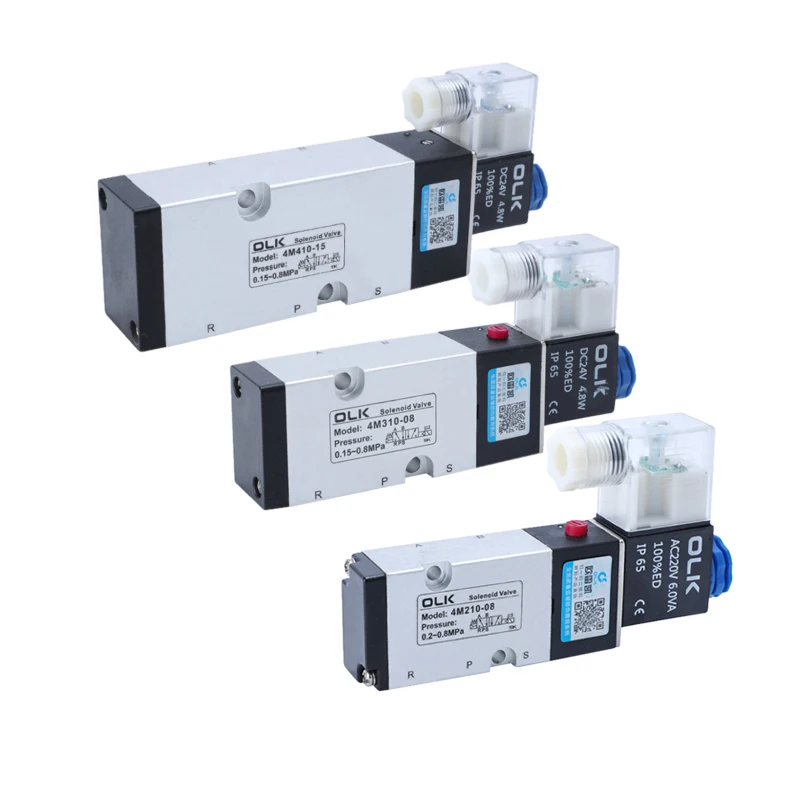

1PCS 4M210-08 4M310-08 4M410-10 Pneumatic Electric Solenoid Valve 2 Position 3 Port Five Way Control Air Valve Electroma
1PCS 4M210-08 4M310-08 4M410-10 Pneumatic Electric Solenoid Valve 2 Position 3 Port Five Way Control Air Valve Electroma
Air
السعر الإرشادي
$1.09دولار / قطعة
Reference unit price, USD. Batch price confirmed at quotation.
| البند | القيمة |
|---|---|
| Category | Pneumatic Solenoid Valve |
| Media | Air |
| Voltage | Not specified |
| Reference Price | USD 4.52 |
| Listing Status | Quoted on request |
| Type | Valves |
| Model Number | 4M210-08 4M310-08 4M410-15 |
| Position and way NO. | 3 port 2 position |
| Orifice size | 16mm2(CV=0.4) |
| Port size | Air inlet=Air outlet=PT1/4" Air inlet=Air outlet=PT1/2" |
| Voltage range | ±10% |
| Operating pressure | 1.5~8kgf/cm2 |
| Max.proof pressure | 10.5kgf/cm2 |
| Temp.range | 5~60 C |
| Coil insulation &protection grade | IP65(DIN 40050) |
| Highest action frequency | 5 cycles/per.sec. |
| Initial state | Normally closed |
القائمة الأصلية: فتح صفحة المنتج الأصلية
البنية والوصلة والملف وملاحظات التركيب لـ صمام لولبي 1PCS الهواء المضغوط.
