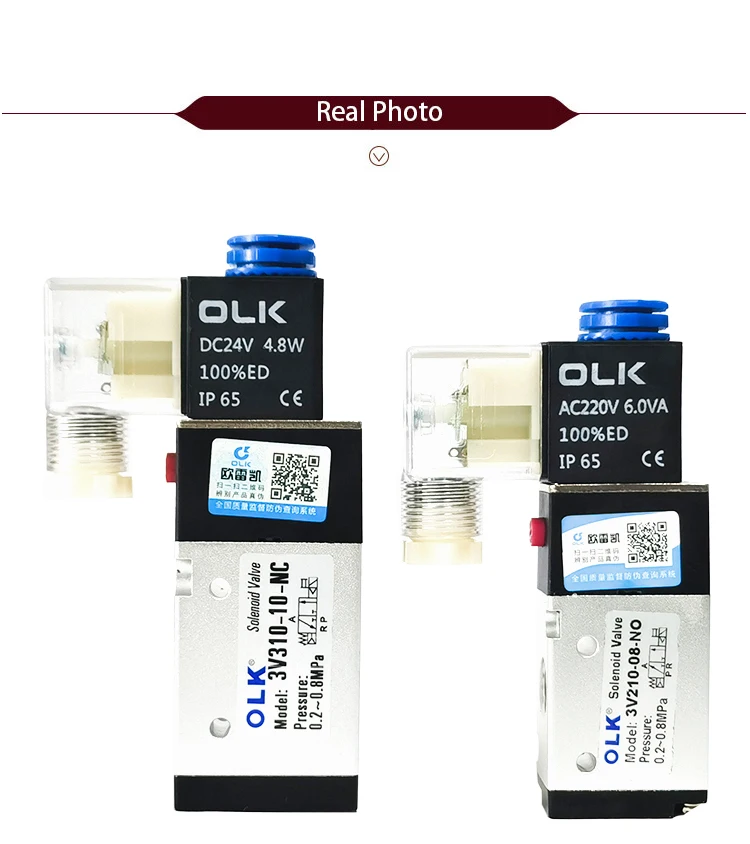

Pneumatic Solenoid Valve 24v 3V210-08 3V210-08-NO 3V310-10-NC 3V310-10-NO 3 Way Normally Open Close Air Valves
Pneumatic Solenoid Valve 24v 3V210-08 3V210-08-NO 3V310-10-NC 3V310-10-NO 3 Way Normally Open Close Air Valves
Air
السعر الإرشادي
$12.48دولار / قطعة
Reference unit price, USD. Batch price confirmed at quotation.
| البند | القيمة |
|---|---|
| Category | Pneumatic Solenoid Valve |
| Media | Air |
| Voltage | Not specified |
| Reference Price | USD 15.60 |
| Listing Status | Quoted on request |
| Type | Valves |
| Model Number | 3V210-08 3V210-08-NO 3V310-10-NC 3V310-10-NO |
| Position and way No. | Two-position Three-way |
| Working Patten | 40 Micron Fitered Air |
| Working Pressure | 0.2-0.8Mpa |
| Max. Pressure ressostance | 1.2Mpa |
| Operating Temperature | 5-50 C |
| Voltsge Range | -15% -- +10% |
| Consume power | AC: 6.0VA DC:4.8W |
| Highest Acton Frequncy | 5Cycle/Sec |
| Shor test Excition Time | 0.05 Second |
| Initial state | Normally closed |
القائمة الأصلية: فتح صفحة المنتج الأصلية

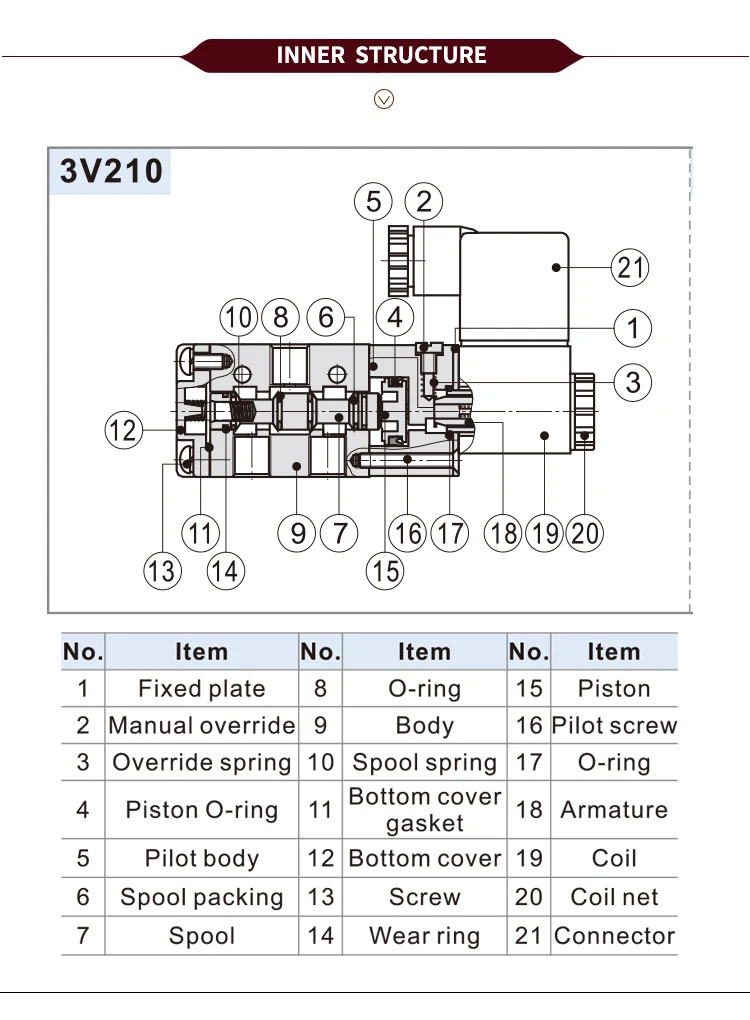

البنية والوصلة والملف وملاحظات التركيب لـ صمام لولبي Pneumatic Solenoid الهواء المضغوط.
